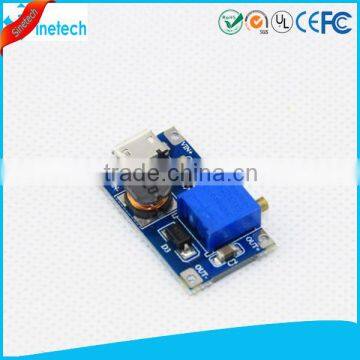

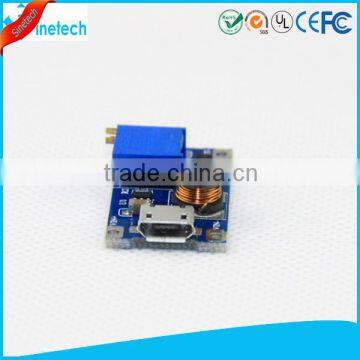

DC-DC step-up power module current output 2A adjustable
Module Features
1 ) Maximum output current : 2A ( recommended in 1A)
2 ) Input voltage : 2 v - 24 v
3 ) Maximum output voltage :> 28 v ( recommended in 26V)
4 ) Efficiency: > 93% ( efficiency of input and output pressure related )
5 ) Size : 30mm * 17mm * 14mm ( L * W * H )
Module Highlights:
The whole network the smallest adjustable boost module can be easily installed in a variety of small equipment inside.
MicroUSB input can be used with a USB charger or mobile power supply through the phone line
You can easily get the 9V, 12V, 15V, 18V, 24V voltage common , easy to use.
Wide input and output voltage , high conversion efficiency.
Notes:
1 ) This module is a step-up module , the output voltage is greater than the input voltage
2 ) Peak current output current does not exceed 2A
Model |
DC DC Converter |
Output power(W) |
1-56W |
Input voltage(V) |
2V--24VDC |
Output voltage(V) |
5V--28V DC |
Conversion efficiency |
96% |
Isolation/Non-isolated |
Non-isolated |
Output type |
Singal |
Output current (Amp) |
2.0A, self-adaption |
Input/output interface |
Wiring, customization available |
Load regulation rate |
<1% |
Voltage regulation rate |
<2% |
Ripple |
<50mV |
Protection |
Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections |
Waterproof |
Yes |
Basic parameter | |
Dimension(LxWxH) |
30x17x14mm, etc |
Weight |
20g |
Case |
Plastic ABS |
Cooler |
Natural cooling |
Rated temperature |
40°c |
Operating temperature |
-25°c~85°c |
Warranty |
1 year |
Item |
Type |
Voltage convert |
Output current |
1 |
DC-DC Converter - step down |
24vdc to 12vdc |
1/2/3A |
2 |
DC-DC Converter - step down |
12vdc/24vdc to 5vdc |
1/2/3A |
3 |
DC-DC Converter-Boost |
5vdc to 12vdc |
1/2/3A |
4 |
DC-DC Converter-Boost |
12vdc to 36vdc |
1/2A |
5 |
DC-DC Converter-Boost |
12vdc to 48vdc |
1/2A |
6 |
DC-DC Converter - step down |
36vdc/48vdc to 12vdc |
1/2/3A |
7 |
DC-DC Converter-Boost |
12vdc to 24vdc |
1/2/3A |
8 |
DC-DC Converter - step down |
60vdc to 12vdc |
10/12/15A |
9 |
DC-DC Converter - step down |
60vdc to 24vdc |
10/12/15A |
10 |
DC-DC Converter - step down |
60vdc to 36vdc |
5/8A |
11 |
DC-DC Converter - step down |
12vdc to 5vdc |
1/2/3A |
12 |
DC-DC Converter - step down |
36vdc/48vdc to 24vdc |
10/12A |
13 |
DC-DC Converter - step down |
48vdc to 36vdc |
5/8A |
14 |
DC-DC Converter---Automatic Step down and Boost |
12vdc-12vdc |
1/2/3A |
15 |
DC-DC Converter---Automatic Step down and Boost |
|
|
