Help CenterEverExceed Homage Ups Pakistan Price 500va 1kva 2kva Inverter With 3 Phase Input
Related Products
-
EverExceed 200kva Baby Pull Ups With CE/IEC/ RoHS/ ISO14001/ISO9001 Certificates for Internet Service ProviderNegotiableMOQ: 1 Piece -
EverExceed Lithium Battery Ups With CE/ IEC/RoHS/ ISO Approval for Stock CenterUS$ 5,000 - 30,000MOQ: 1 Piece
-
EverExceed 10 Kva Ups Price With ISO/ CE/ RoHS Certificate for Manufacture CenterUS$ 1 - 1,400MOQ: 1 Piece
-
EverExceed 32KW Ups Inverter Battery Charger Battery With ISO/ CE/ RoHS Certificate for Manufacture CenterUS$ 1 - 1,400MOQ: 1 Piece
-
EverExceed 32KW Exide Ups Battery With ISO/ CE/ RoHS Certificate for Manufacture CenterUS$ 1 - 1,400MOQ: 1 Piece
EverExceed safe and reliable UPS power products:
online / off-line UPS, high frequency online UPS, low frequency online UPS, modular online UPS, etc. We also offer customized services to meet various customers’ need.
Why choose us?
1) Nearly 30 years leading manufacturer;
2) Worldwide brand registered in more than 70 countries;
3) Comprehensive certificates approval: TUV / VDE / CE / ISO / IEC / DEKRA / ROHS
4) Strict management system and quality control, 100% inspection
5) A professional experienced team to provide you high-quality service.

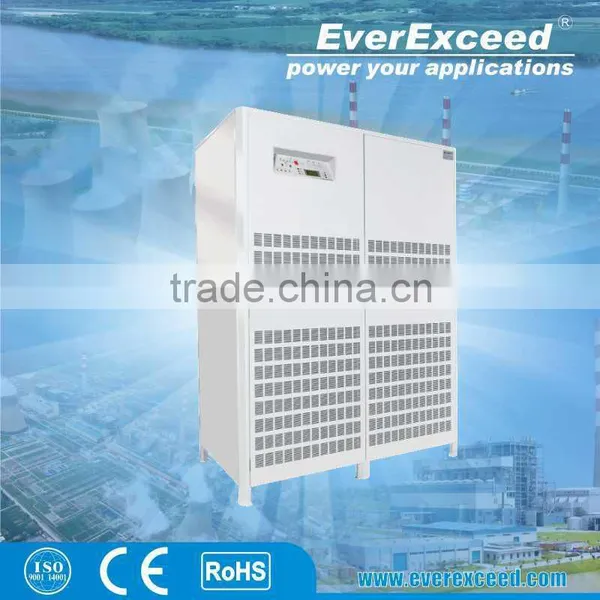

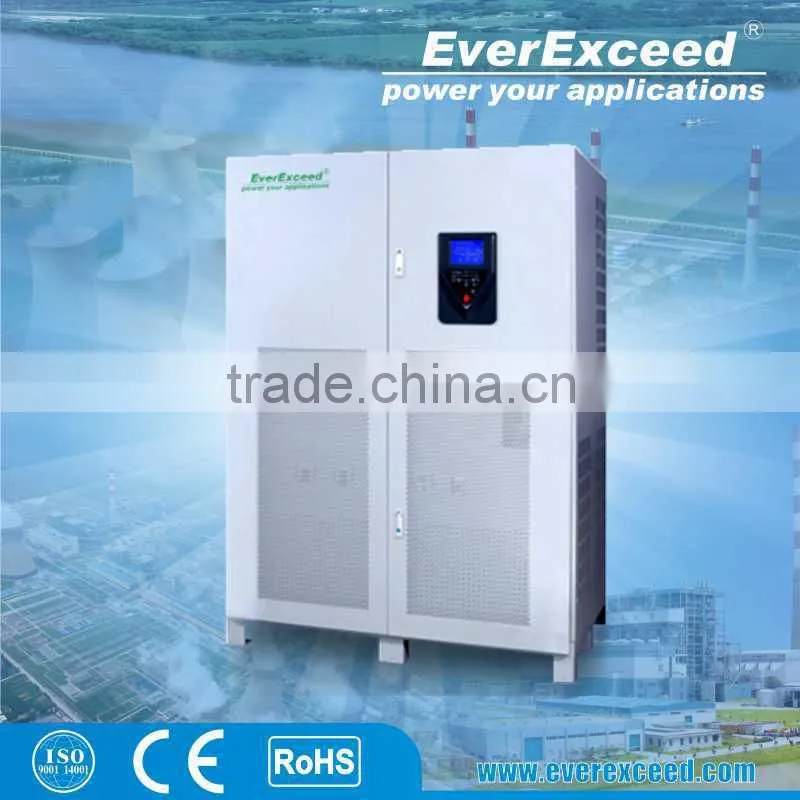

EverExceed PowerGuiding Series
Industrial UPS
PG 1P 3:1 phase
PG 3P 3:3 phase
The PowerGuiding Series UPS is one of the best performing and most reliable three phase UPS systems, providing critical power protection for industrial applications. PowerGuiding series UPS system operates in on-line double conversion, yielding the maximum levels of power reliability for all mission critical processes.
- Full digital control technique;
- Intelligent detecting and monitoring function;
- Digital control static switch and zero changeover time;
- Full isolation between input and output;
- DC panel and utility power are full isolated;
- Uses electric power standard cabinet;
- It’s provided with over voltage protection, under voltage protection, over current protection, short circuit protection and some other protection functions;
- Large LCD can display the input voltage, output voltage, current, frequency, battery voltage, charge-discharge current value, fault and other running conditions in Chinese and English;
- At most 256 pieces of historic records can be showed. This makes it easier for users to analyze the power supply condition;
- The static state bypass has strong anti-overload capacity.
Technical Data
- Chemical factories
- Power generating plants
- Power distribution stations
- Electrical substations
- Electric power communication systems
EverExceed Group was established in 1980s and has its headquarter in Shenzhen, China, and subsidiaries in Singapore, UK and operations in six continents. We are manufacturing and supplying worldwide reliable power solutions with continuous innovative technologies, cost-effectiveness and good service, including industrial batteries (lead acid batteries, NiCad batteries, Lithium-ion batteries), solar power systems, UPS systems and DC power systems.
EverExceed attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / VDE/ CE/ IEC/ UL/ RoHS/ DEKRA. Our advanced technology, professional technique, automatic equipment, experienced staff and strict operation system assure high level product quality. By now, reliable products with our brand “EverExceed” have been exported to more than 60 countries all over the world.
Warmly and sincerely welcome you to join us, and become a distributor and a partner in the future.
For more information, please visit our website:.
Q:How does the on-line UPS normal work principle?
A: The input converter and output inverter shall operate in an on-line manner to continuously regulate power to the critical load. The input and output converters shall be capable of full battery recharge while simultaneously providing regulated power to the load for all line and load conditions within the range of the UPS specifications.
Q:What’s the meaning of UPS’s battery mode?
A:Upon failure of the AC input source, the critical load shall continue being supplied by the output inverter, which shall derive its power from the battery system. There shall be no interruption in power to the critical load during both transfers to battery operation and retransfers from battery to normal operation.
Q :What’s the meaning of UPS’s bypass mode?
A:The static bypass shall be used to provide transfer of critical load from the Inverter output to the bypass source. This transfer, along with its retransfer, shall take place with no power interruption to the critical load. In the event of an emergency, this transfer shall be an automatic function.
Q: What’s the meaning of UPS’s THDi?
A: The input current THDI(Total Harmonic Distortion) shall be held to 5% or less at full system, while providing conditioned power to the critical load bus, and charging the batteries under steady-state operating conditions. This shall be true while supporting loads of both a linear or non-linear type. This shall be accomplished with no additional filters, magnetic devices, or other components.
Q:What’s the meaning of UPS’s overload capacity?
A:Steady-state overload conditions, of up to more than 100% of system capacity, shall be sustained by the inverter for several seconds in normal and battery operation. Should overloads persist past the outlined time limitation the critical load will be switched to the automatic static bypass output of the UPS.
Tags: homage ups,luminous ups,ups power supply,solar ups,online ups,ups systems,line interactive ups,networking ups,single phase ups,3 phase ups,dc – ups,Uninterrupted power supply
Keyword: ups,uninterrupted power supply
