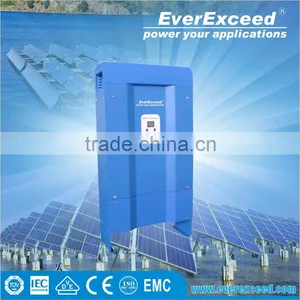

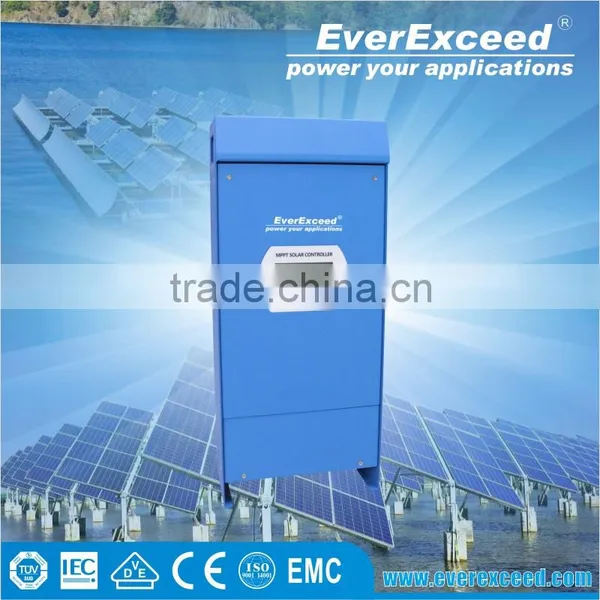

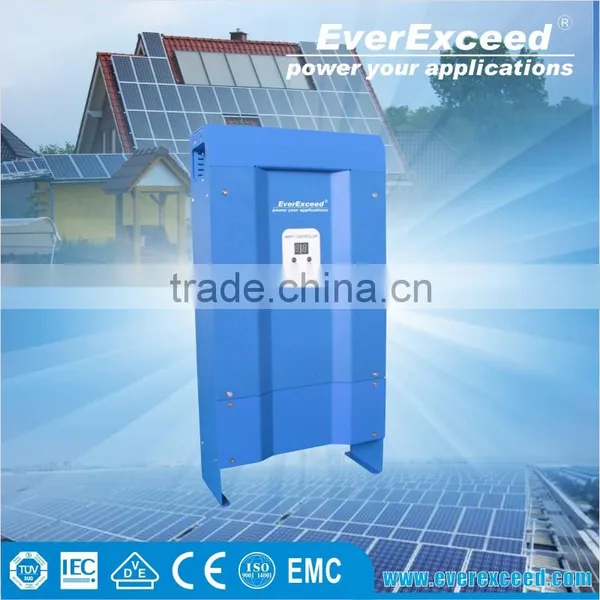

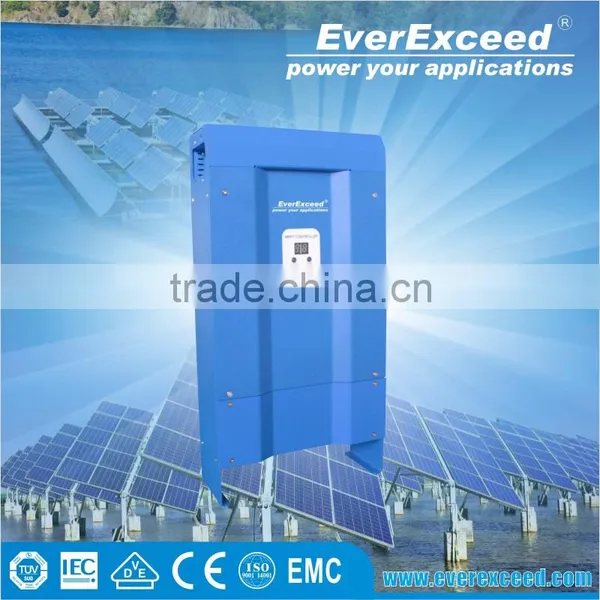

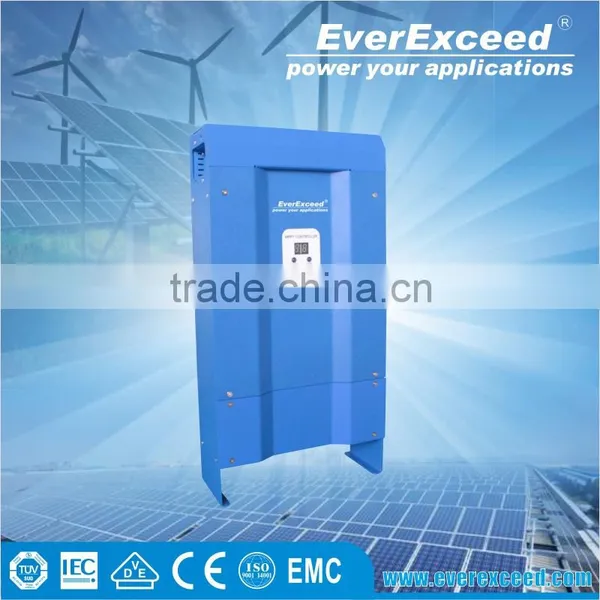

EverExceed world-class performance MPPT series solar power charge controller 25A
High Efficiency / High Reliability / High Quality
Every staff is equal in personality and dignity. Mutual respect and understanding are advocated. Enterprising spirit and initiative are encouraged.
EverExceed has been devoting to maximizing the value to its worldwide users through its commitments to people, advanced technologies and quality services.
With its strong penetration into international markets, EverExceed will continue its high-speed development in the coming years.
Following globalization strategy, EverExceed is becoming an important vendor of global network & motive power and power protection products, solar energy in the industry. EverExceed’s products have been applied in over 50 countries and regions
including the United States, Canada, United Kingdom, Italy, France, Austria, Belgium, Turkey, Greece, Thailand, Spain, Mexico, Egypt, Sri Lanka, Pakistan, Indonesia, Australia etc.
EverExceed is a fast growing, aggressive and forward-looking international organization that expects the new century to be marked by challenge, more and different opportunities, and steady growth. We are well placed to take full advantage of these opportunities for ourselves and our customers.
The EverExceed Titan MPPT solar charge controller sets new standards in the area of Maximum Power Point trackers. Outstanding efficiency along with unique safety features make it a universal top-grade charge controller.
With an input voltage of up to 100 V, all kinds of solar modules can be used in various connection schemes. This charge controller combines high flexibility, maximum yields, professional battery care and an appealing design on the basis of advanced technology.
Features:
1. Voltage and current regulation
2. MPPT control
3. Temperature compensation
4. Monthly maintenance charge
5. Adjustable cut-off voltages
6. Battery type: gel/liquid lead battery, NiCd battery
7. Integrated, automatic module switch
8. controller can be connected in unlimited parallers
Electronic protection functions:
1. Overcharge protection
2. Reverse polarity protection of module and battery
3. Automatic electronic fuse
4. Open circuit protection without battery
5. Reverse current protection at night
6. Overtemperature and overload protection
7. PE connection
Display:
1. Multifunction graphical LCD display with backlighting
2. Configuration via display unit
Accessories
1. External temperature sensor
2. RS232 communication cable for connected with PC
| Model | T25 | ||
| Charge Mode | MPPT | Charge stage | Constant current(MPPT),constant voltage,floating |
| System efficiency | =96.5% | High input voltage protection point |
110V(12/24/48V system) |
| MPPT work voltage | 14V~100V(12V) | High input voltage recovery point |
- 100V(12/24/48V system) |
| 30~100V(24V) | Max charging current |
25A | |
| 60~100V(48V) | Communication | RS232 | |
Low input voltage |
14V(12V) | Low input voltage |
18V(12V) |
| 30V(24V) | 34V(24V) | ||
| 60V(48V) | 65V(48V) | ||
| Dimension | 373*193*72.5mm | ||
| Net weight | 3.58kg | ||
| Maximum PV power | 355W(12V) | ||
| 710W(24V) | |||
| 1420W(48V) | |||
EverExceed attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / VDE/ CE/ IEC/ UL/ RoHS/ DEKRA. Our advanced technology, professional technique, automatic equipment, experienced staff and strict operation system assure high level product quality. By now, reliable products with our brand “EverExceed” have been exported to more than 60 countries all over the world.
Warmly and sincerely welcome you to join us, and become a distributor and a partner in the future.
