Place of Origin Jiangsu, China
Brand Name Weilian
Model Number Z11 Type

Z Series-Keyless Locking device Z11:

1.Shaft collar selection method

Choose shaft collar according to load

1.select the shaft collar should meet:

a. transmitted torque Mt ≥ M

b. axial force:Ft ≥ Fx

c. transfer force:Ft ≥ F2X+(M X10-3)2

d. radial force Pt ≥ Fr/d.1 X103

2,the rated load of a connection which to use numerous shaft sleeve.

When Rated load of a shaft sleeve is less than required transfer load, then can set more than two shaft sleeves in series, the total rated load:

Mtn=m.Mt

Type in: Mtn - n shaft sleeve’s rated load:M - load coefficient (m value shown in chart A)







Num. Of shaft collar

N



m

Z1shaft collar

Z2, Z3,Z4,Z5shaft collar

Z12, Z15,Z17,Z18

shaft collar

1

1.00

1.0

1.0

2

1.56

1.8

1.8

3

1.86

2.7

-

4

2.03

-

-

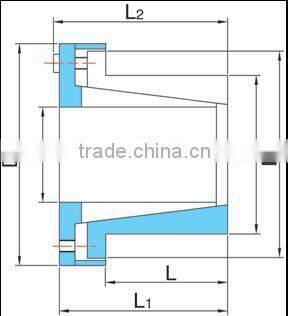

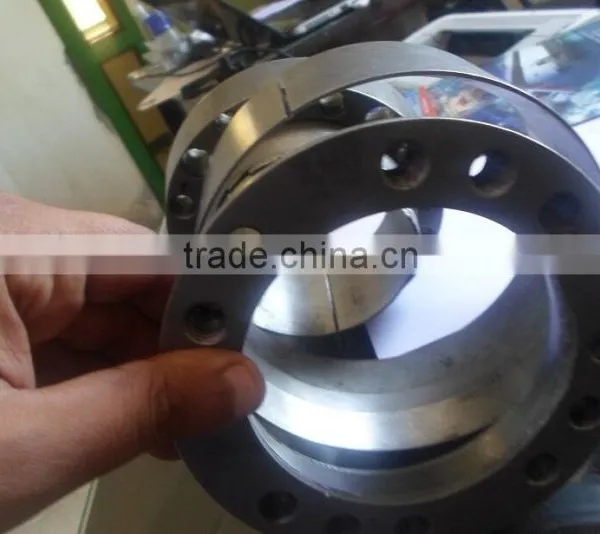

 2.picture show

Mark example:

Inner diameter=20mm, outer diameter=29mm Z11 shaft collar; shaft collar Z11-20 x 28

JB/T7934-1999

China Lowest price Z11 Keyless Locking Assemblies,shaft Locking Device,Fasteners



  Z11 Type 's basic size and parameter

basic size nominal load soket head cap screw screw tightning torque press between sleeve and coupling Press between shaft collar and Oldham Coupling Hub Pf weight kg
d D L L1 L2 D1 D2 axial force torque Mt kN·m d1 n MA Pf N/mm2
Ft N·m N/mm2
mm kN
assembly form A B A B       A B A B
14 23 14 26 30 38 33 15.5 9.7 108 68 M4 4 4.9 210 132 128 80 0.15
15 24 16 36 42 45 40 35.5 22.4 285 179 M6 4 17 307 193 219 138 0.26
16 24 16 36 42 45 40 35.5 22.4 285 179 M6 4 17 328 206 219 138 0.25
18 26 18 41 47 47 42 35.5 22.4 320 200 M6 4 17 290 184 202 127 0.27
19 27 18 41 47 49 43 35.5 22.4 335 212 M6 4 17 276 174 195 122 0.3
20 28 18 41 47 50 44 35.5 22.4 350 224 M6 4 17 262 165 187 118 0.3
22 32 25 48 54 54 48 35.5 22.4 353 231 M6 4 17 155 101 106 69 0.38
24 34 25 48 54 56 50 53.4 33.6 636 400 M6 6 17 237 149 167 105 0.4
25 34 25 48 54 56 50 53.4 33.6 665 420 M6 6 17 228 143 167 105 0.39
28 39 25 48 54 61 55 53.4 33.6 745 470 M6 6 17 204 128 146 92 0.47
30 41 25 48 54 62 57 53.4 33.6 795 500 M6 6 17 189 119 139 87 0.48
32 43 25 48 54 65 59 71.3 44.8 1136 715 M6 8 17 237 149 177 111 0.52
35 47 32 52 58 69 62 71.3 44.8 1160 735 M6 8 17 152 99 114 74 0.63
38 50 32 52 58 72 66 71.3 44.8 1223 797 M6 8 17 140 92 106 70 0.67
40 53 32 52 58 75 69 71.3 44.8 1287 840 M6 8 17 133 87 100 66 0.74
42 55 32 52 58 78 71 71.3 44.8 1352 881 M6 8 17 127 82 102 66 0.78
45 59 45 72 80 86 80 119 77.6 2677 1745 M8 8 41 155 102 119 78 1.23
48 62 45 72 80 87 81 119 77.6 2885 1860 M8 8 41 145 95 113 74 1.24
50 65 45 72 80 92 86 119 77.6 2975 1940 M8 8 41 140 92 108 70 1.4
55 71 55 82 90 98 92 133 87.2 3680 2400 M8 9 41 117 77 91 60 1.7
60 77 55 82 90 104 98 133 87.2 4015 2620 M8 9 41 107 70 84 55 1.9
65 84 55 82 90 111 105 133 87.2 4350 2840 M8 9 41 100 65 77 55 2.2
70 90 65 97 107 119 113 212 139 7440 4850 M10 9 83 123 81 96 63 3.05
75 95 65 97 107 126 119 212 139 7970 5200 M10 9 83 114 75 91 59 3.32
80 100 65 97 107 131 125 283 184 11335 7390 M10 12 83 144 94 115 75 3.5
85 106 65 97 107 137 131 283 184 12040 7850 M10 12 83 135 88 108 71 3.81
90 112 65 97 107 144 137 283 184 12750 8320 M10 12 83 128 83 102 67 4.2

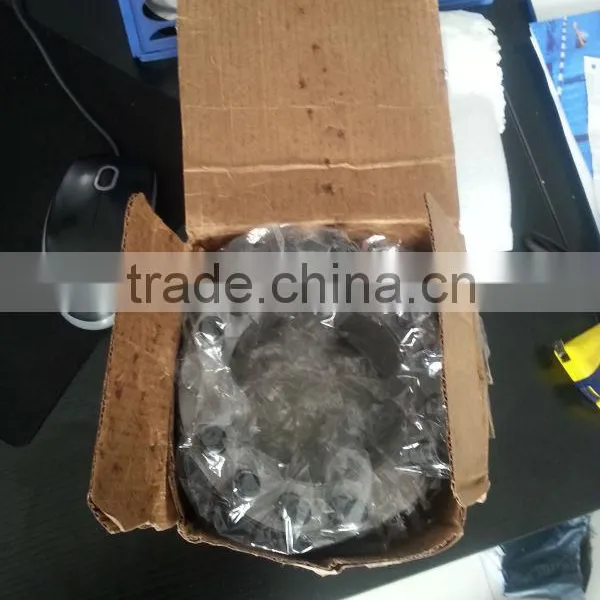

3.packaging



Company Information

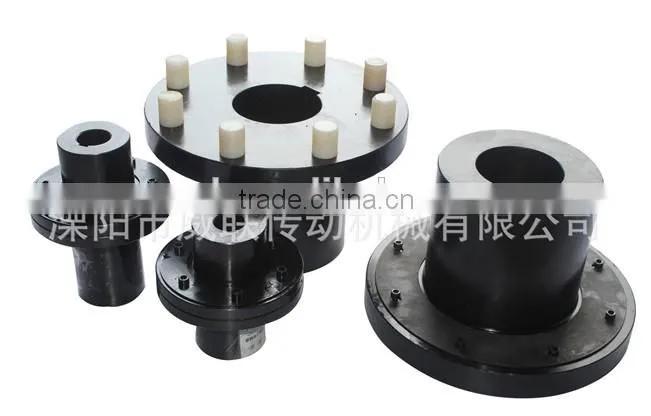

Our Mainly Product:
