We have manufacturing stone processing machine since the year 1992, so we have enough experience in
providing you high quality and matured machines
We provide:1. stone cutting, polishing, calibrating, profile making machine and so on. 2. artifcial marble stone and quartz stone producing machine line. 3. Stainless steel polishing machine
we can send our engineer to your factory to install and explain how to use these machines, we also have
oversea agent.
Wood packing or waterproof membrance for Hiersun stone laser engraving machine

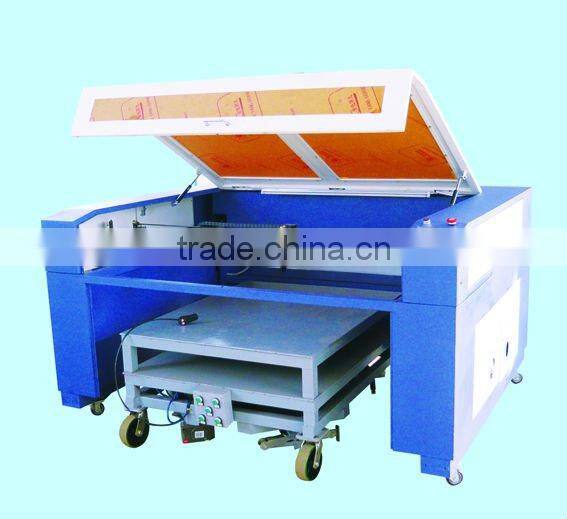

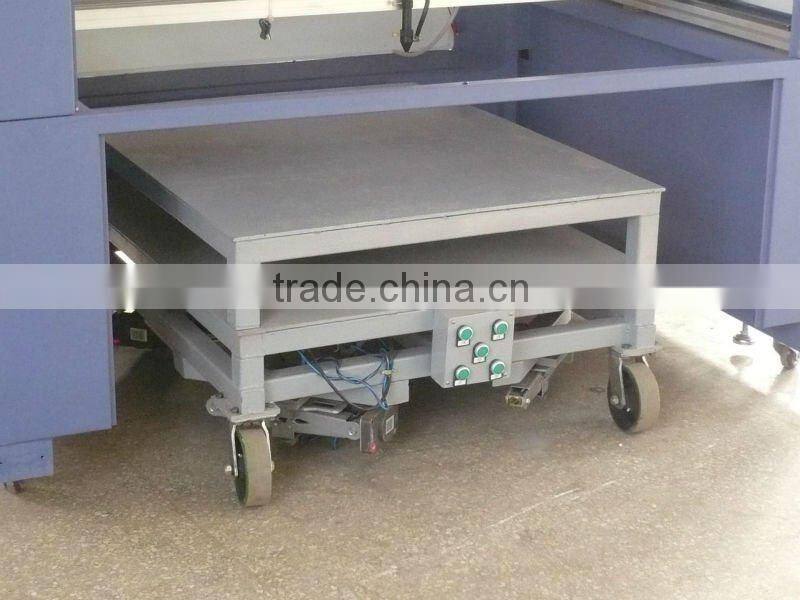

Hiersun stone laser engraving machine

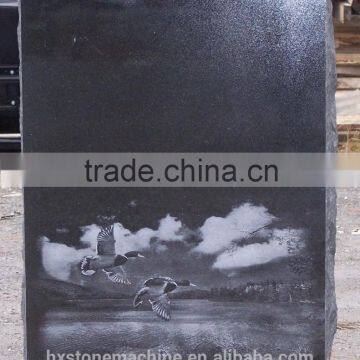

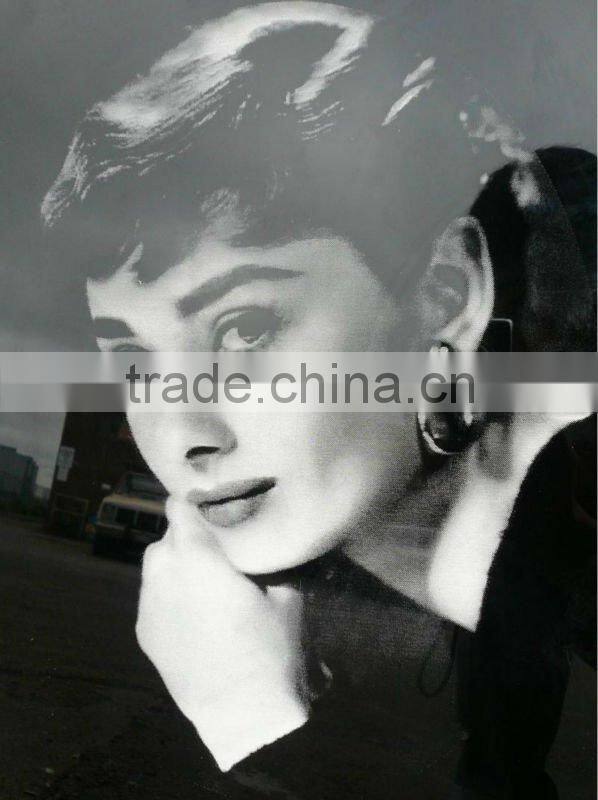

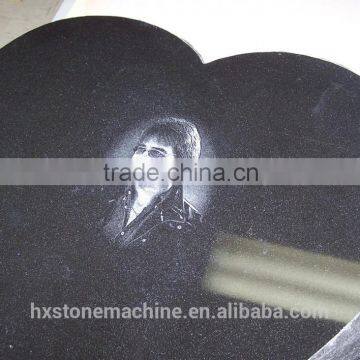

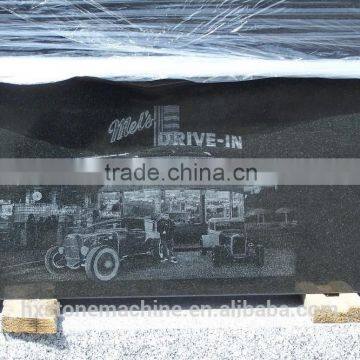

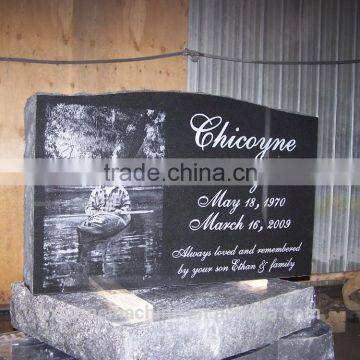

This machine, with its software and hardware connected to a computer, can complete mechanical movements. It can engrave portraits, patterns, and characters on the stones. The max engraving depth is 0.3mm.
Type Parameter |
BX 90*60 |
BX 120*80 |
BX 150*120 |
Laser’s Type |
Sealed CO2 LaserTube |
Sealed CO2 Laser Tube |
Sealed CO2 Laser Tube |
Laser Power |
60 w |
60 w |
60 w |
Engraving Area |
900×600mm |
1200×800mm |
1500×1200mm |
Whole Machine Size |
1360×1010×1070mm |
1720×1210×1070mm |
2200×2100×1250mm |
Engraving Speed |
0-60,000mm/min |
0-60,000mm/min |
0-48,000mm/min |
Relocating Precision |
±0.1mm |
±0.1mm |
±0.1mm |
Working voltage |
AC110-220V±10%,50-60Hz |
AC110-220V±10%,50-60Hz |
AC110-220V±10%,50-60Hz |
Total Power |
max 1,000 w |
max 1,000 w |
max 1,000 w |
Operation Temperature |
0-45°C |
0-45°C |
0-45°C |
Operation Humidity |
5-95% |
5-95%
|
5-95%
|
Min Engraved Character |
English 1×1mm |
English 1×1mm |
English 1×1mm |
Graphic Patters Supported |
BMP,PLT,DST,DXF, AI |
BMP,PLT,DST,DXF, AI |
BMP,PLT,DST,DXF,AI |
Cooling Mode |
Water-Cooling and Protection System
|
Water-Cooling and Protection System
|
Water-Cooling and Protection System
|
Auxiliary Equipments |
Exhaust Fan, Fume Exhaust Tube pipe |
Exhaust Fan, Fume Exhaust Tube fan,air-exhaust pipe |
Exhaust Fan, Fume Exhaust Tube pipe |
Controlling Software |
DSP Controll Sys DSP Control System
|
DSP Control System |
DSP Control System |
Compatible Software |
CorelDraw AutoCAD Photoshop |
CorelDraw AutoCAD Photoshop |
CorelDraw AutoCAD Photoshop |
Net Weight |
200 kg |
280 kg |
400 kg |
