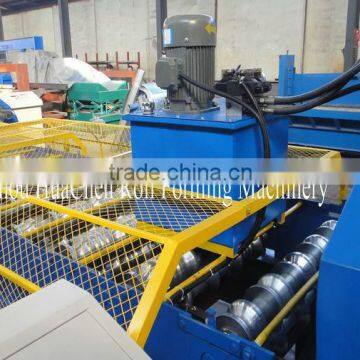

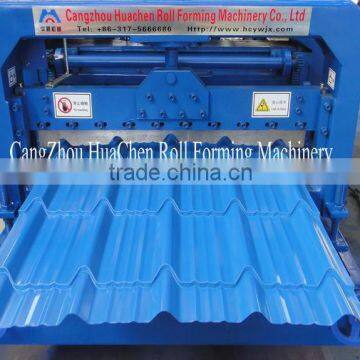

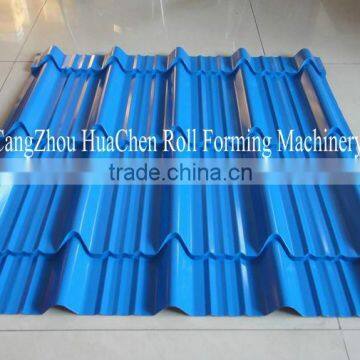

After Color Steel Tile Roll Forming Machine China Machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Detailed Parameters of Color Steel Tile Roll Forming Machine China Machine , want to operate it yourself ?
No. | Color Steel Tile Roll Forming Machine China Machine | |
1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 | Width of material | 1000mm or as you required |
6 | Thickness of material | 0.3-0.6mm or as your needs |
2 | Working speed | 2-4m/min |
3 | Main motor power | 4kw with cycloidal reducer |
4 | Hydraulic station power | 4kw |
5 | Electrical control system | PLC control system |
7 | Shaft diameter | 70mm |
8 | Roller station | 12 rows Depends on profile drawing |
10 | Dimension | 7100x1500x1510mm |
11 | Weight | About 4.5 T |
12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
14 | Material of cutting | Cr12 mould steel with quenched treatment |
15 | Working time | Can be 24 hours |
16 | Workers | 1-2 only |
Please Note: All the parameters can be designed as your requirement.
Let me show you how to operate Color Steel Tile Roll Forming Machine China Machine :

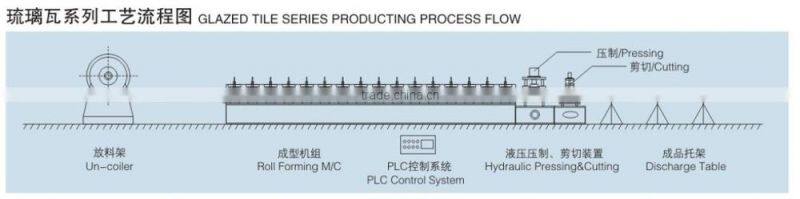

Decoiling→Feeding & Guiding→Roll Forming→Step pressing→Cutting→Finished Products To Support Table

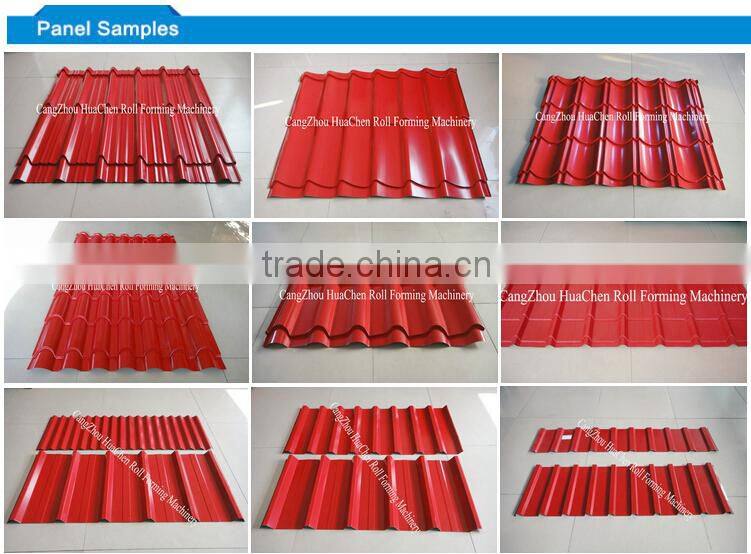

Not interested in this design ? Here are other profiles for your reference.

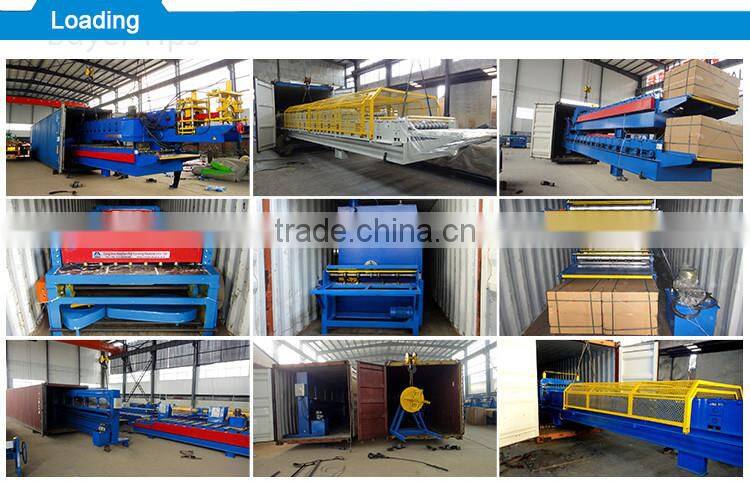

Worry about Packing and delivery ?
1.Main Color Steel Tile Roll Forming Machine China Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
Where we are and Way to visit Huachen:
Why choose Huachen ?
We do high standard roll forming machine for export about 9 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 70 countries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.
