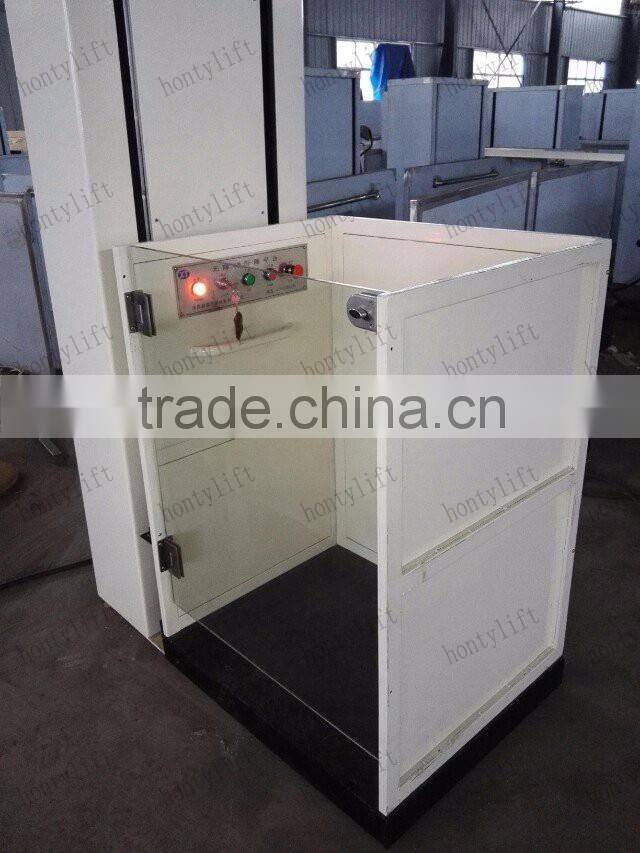

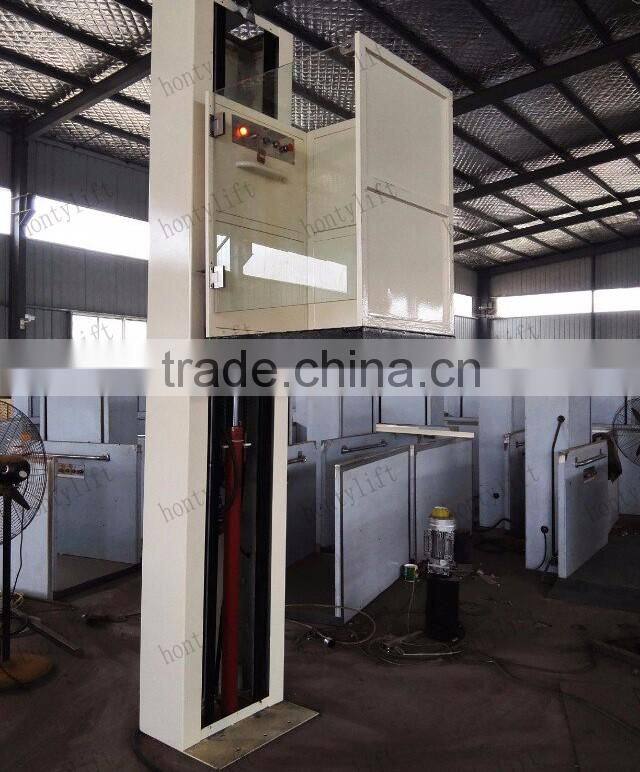

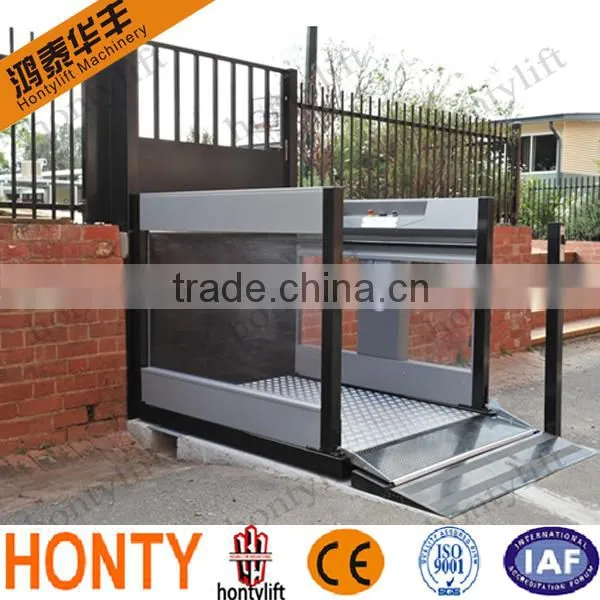

HONTY New Wheelchair Elevator Lift for Disabled People or Elder People

Name

No.

Wheel-chair vertical lift

VL/Y accessible lift platform

Platform size

1200mm(L)* 1000mm(W) OR 1400*1000mm

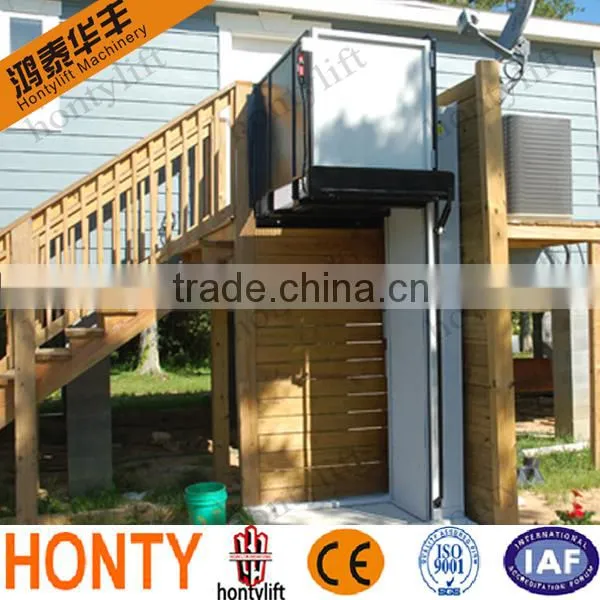

Max Platform Height

1-12 (m)

Min Platform height

65mm

Speed

0.06-0.1 m/s

Load capacity

250KG

Control voltage

24V/DC

Power Output

0.75kw-2.2kw

Power Input

220V/50HZ/25A (or customized for local power supply)

Drive System

Hydraulic

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

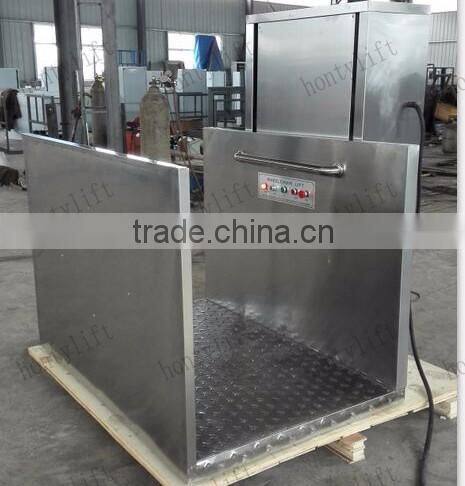

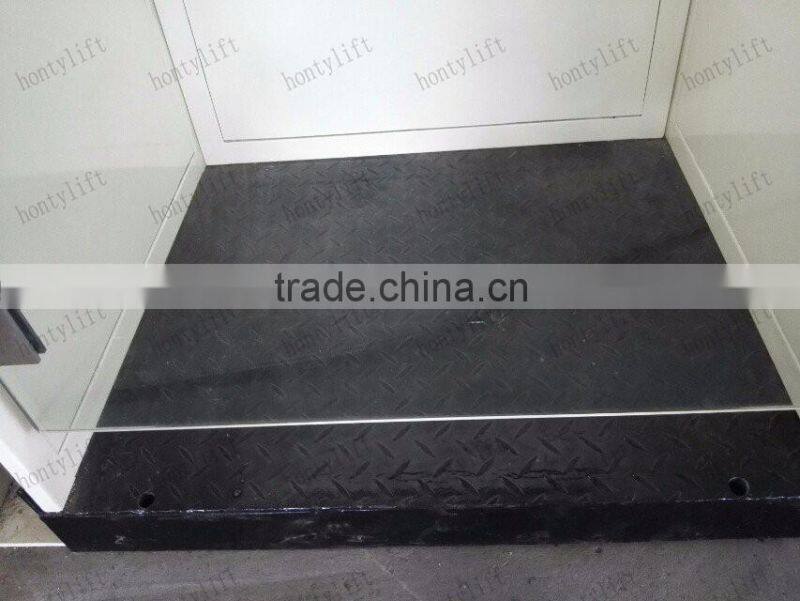

Material of Platform

Stainless steel

Guard panel & drive cabinet

 (framework)

304 stainless steel

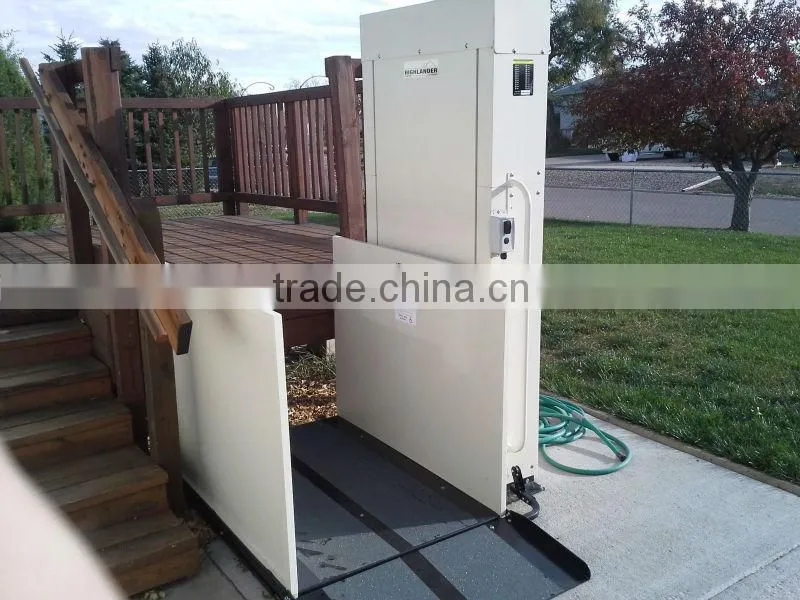

Auto matical ramp

yes

Column switch

Two column switch, one is on the ground floor, one on the first floor

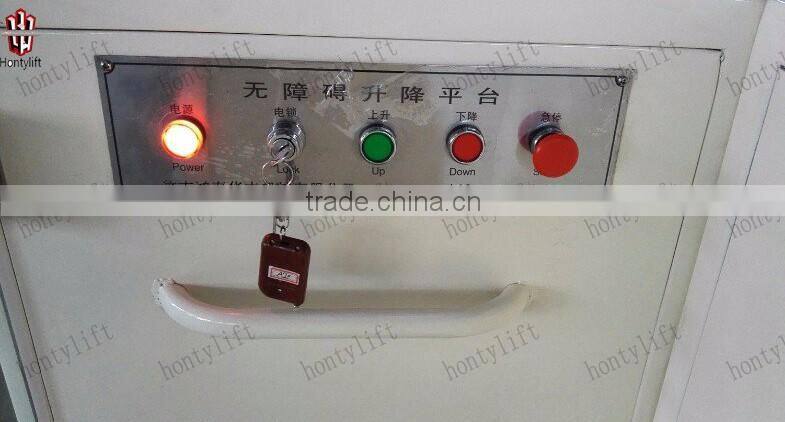

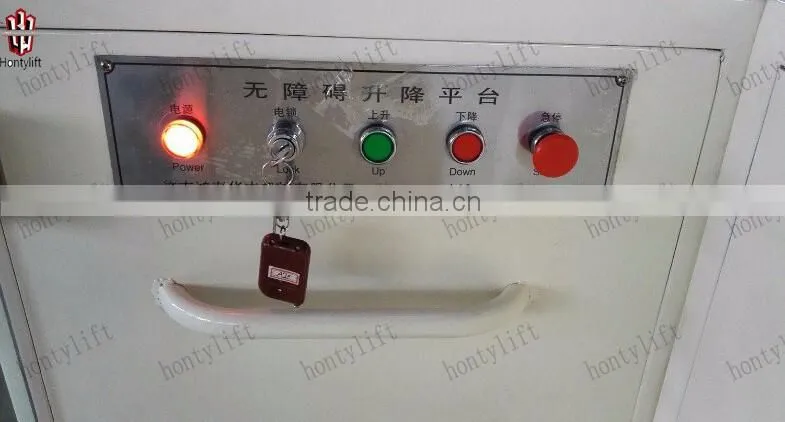

Operation Panel

Polished Stainless steel(up down and Emergency drop valve)

Safety Wane Working Range

75

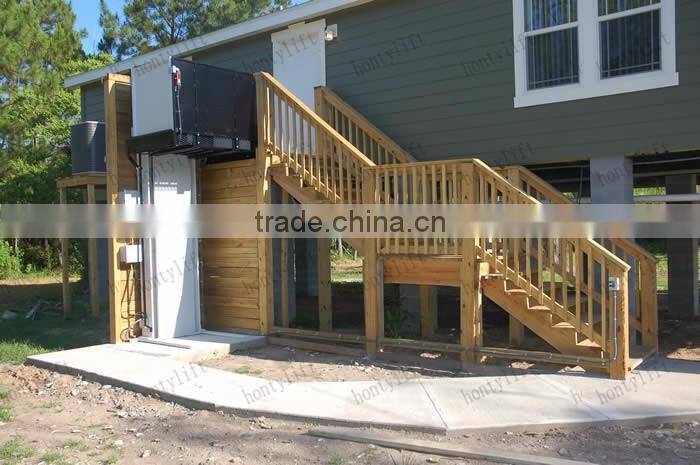

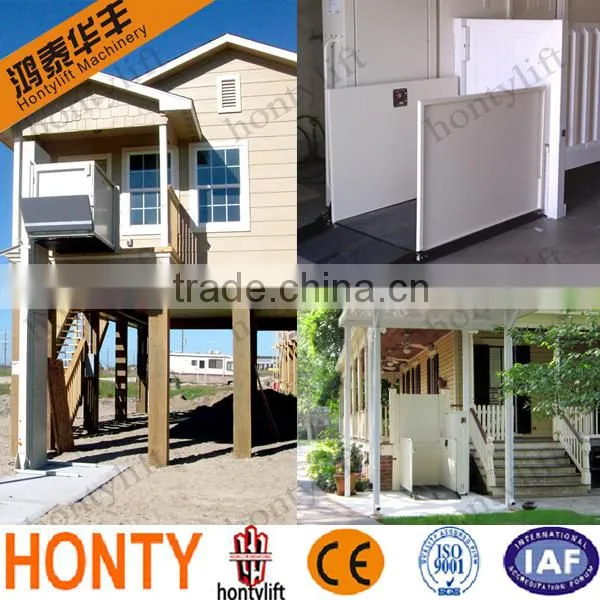

Working Condition

Both indoors and outdoors

Working temperature

From -20 ~60

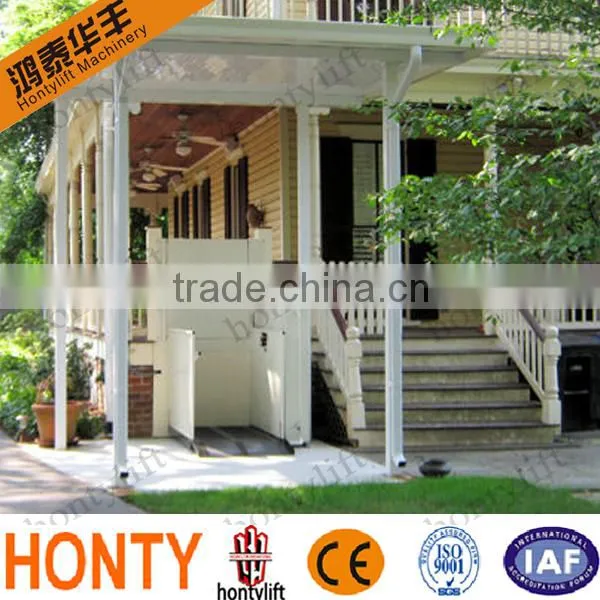

Installation

Non-pit installation, directly fixed to concrete floor (the concrete

floor below the platform shall not be lower than the ground)

Control Device

Calling box (installed on the wall nearby) and remote

controller(Extra optional)

Emergency Stop

The lifting and lowering process can be stopped immediately

by pressing the emergency button.

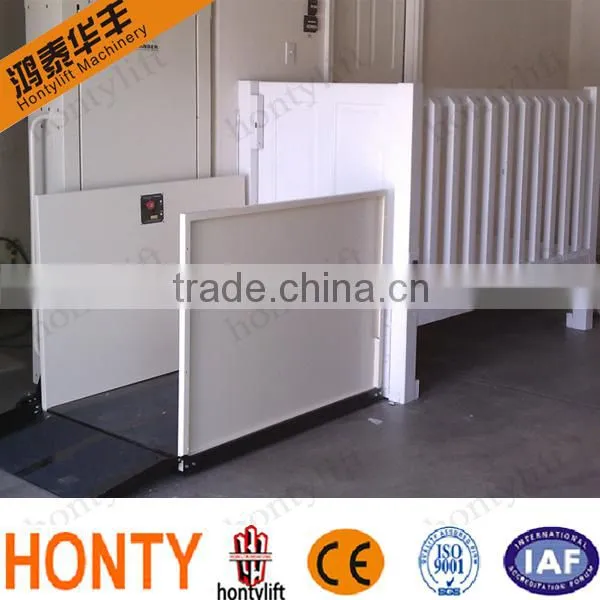

Safety device

Safety Interlock

Lock the platform when it is out of control

Safety Sensor

The operation must be stopped immediately

 the safety

 edge meets obstacles during operation.

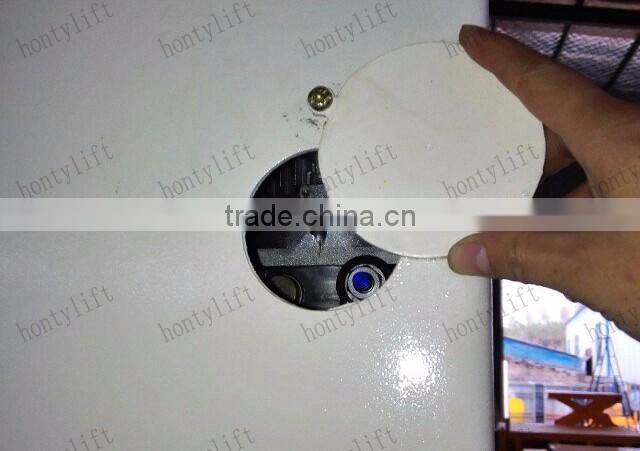

Emergency lowering

The platform can be lowered by opening

hydraulic valve manually

or rolling screw rod.

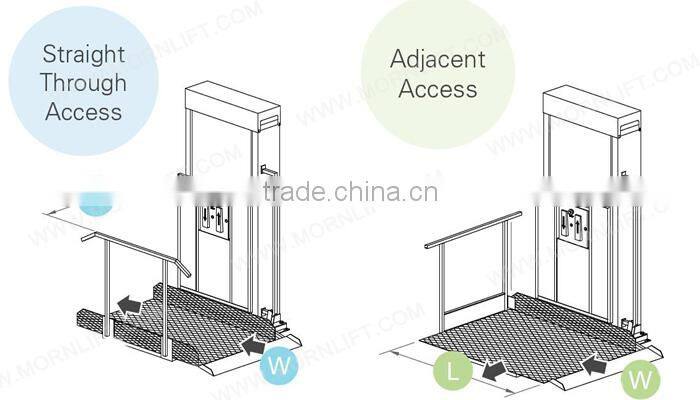

Auto-flap

Turn up after lifting

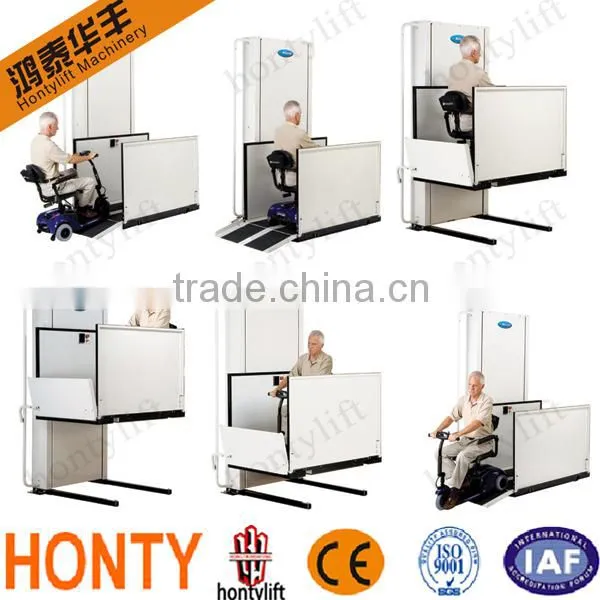

 Model

Table size(mm)

Load Capacity(kg)

Lifting height(m)

Weight(kg)

VL/Y0.3-1

1200*1000

300

1

350

VL/Y0.3-1.5

1200*1000

300

1.5

450

VL/Y0.3-2

1200*1000

300

2

550

VL/Y0.3-2.5

1200*1000

300

2.5

650

VL/Y0.3-3

1200*1000

300

3

780

VL/Y0.3-3.5

1200*1000

300

3.5

800

VL/Y0.3-4

1200*1000

300

4

880

VL/Y0.3-4.5

1200*1000

300

4.5

950

VL/Y0.3-5

1200*1000

300

5

1000

VL/Y0.3-5.5

1200*1000

300

5.5

10500

VL/Y0.3-6

1200*1000

300

6

1100

VL/Y0.3-6.5

1200*1000

300

6.5

1220

VL/Y0.3-7

1200*1000

300

7

1500

VL/Y0.3-7.5

1200*1000

300

7.5

1800

VL/Y0.3-8

1200*1000

300

8

2000

Security hoistway

Aluminum alloy,Glass hoistway

Door protection

Security doors and platform installation of electronic lock linkage circuit to ensure safety

DC models

Built-in automatic battery charging system, ensure the normal use of the machine after power failure

Auxiliary control

Wired auxiliary control box can be installed at the customer location and machine circuit linkage operation needs to run

Chassis panel

304 stainless steel wire drawing board / Electrostatic spraying

Platform guardrail

304 stainless steel wire drawing board / Electrostatic spraying

Lifting height

According to customer needs to provide 12000mm (Lift from the ground floor) models
