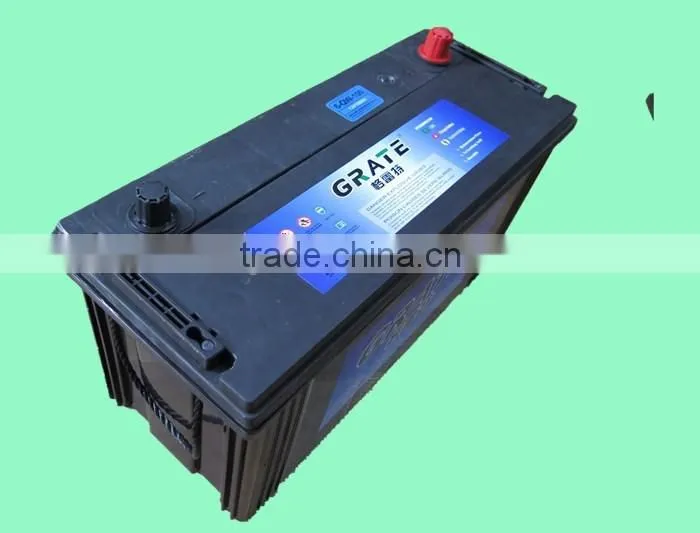

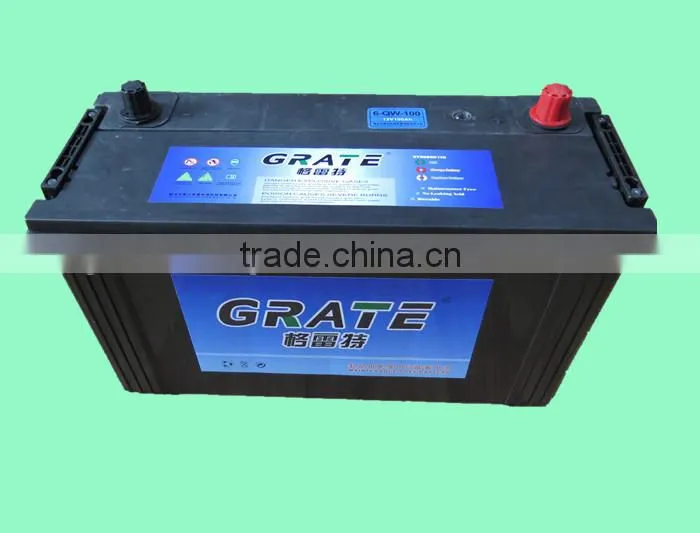

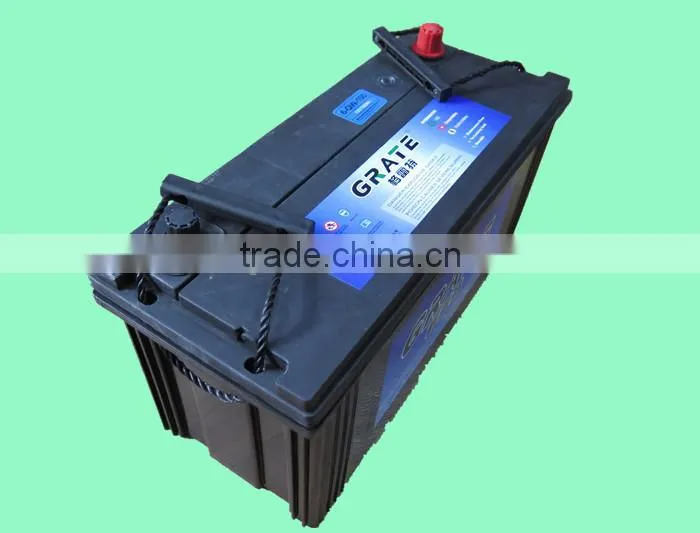

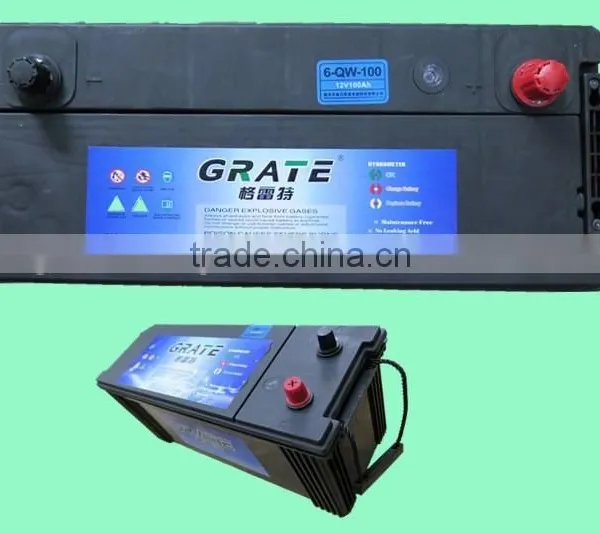

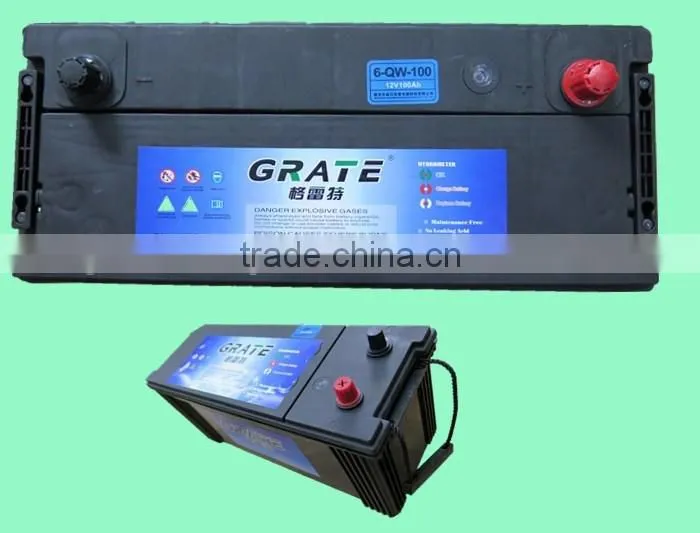

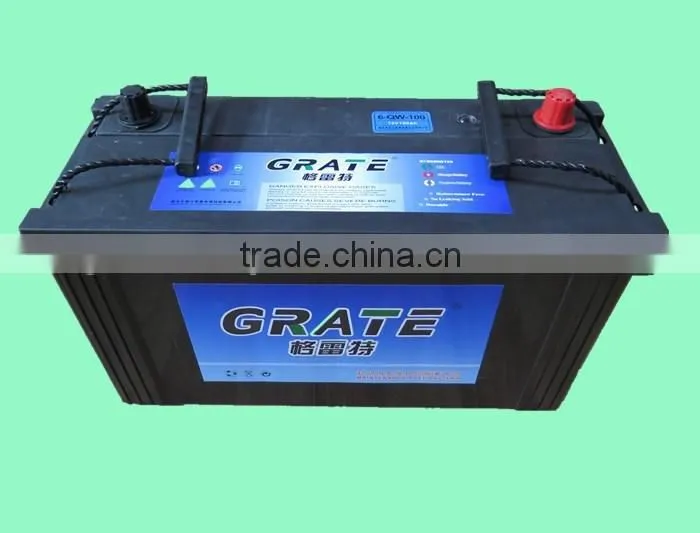

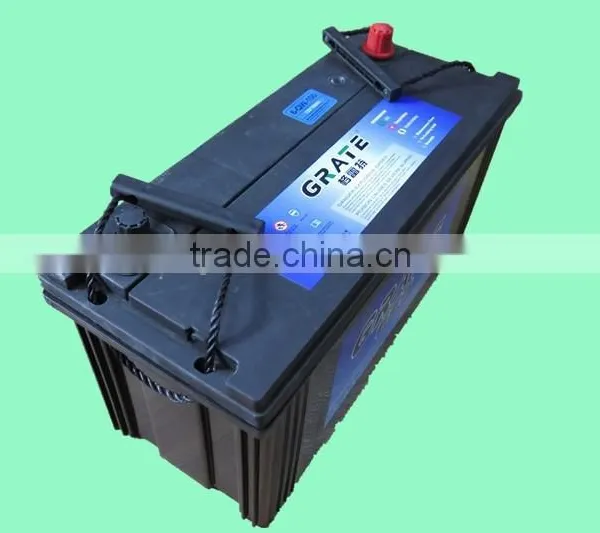

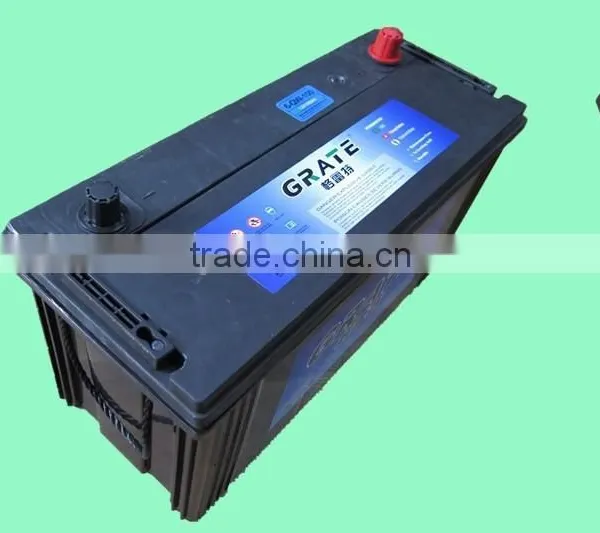

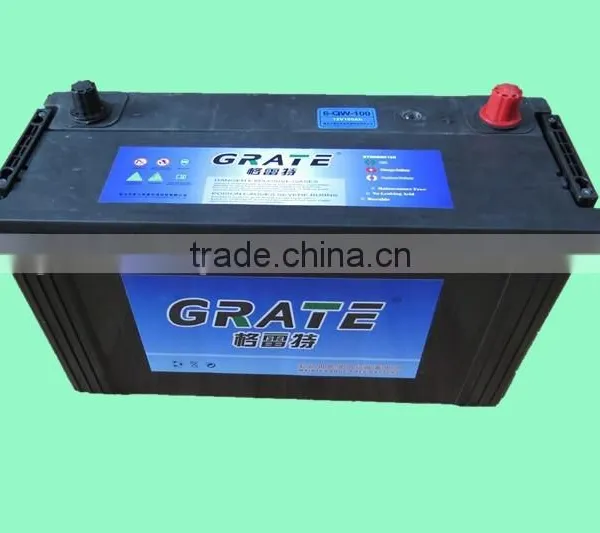

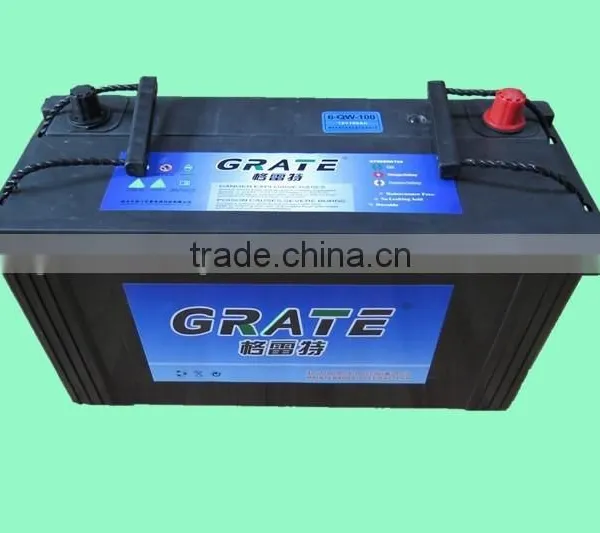

China LEAD acid battery manufacturer 12V 100Ah deep cycle battery 12V rechargeable electric vehicle battery

 12V 100Ah maintenance free lead acid battery auto battery car battery

Product Description:The battery is designed specially for electric vehicles,such as electric golf cart,electric wheelchair,mower dust collector ect.It has high cycling life,high efficiency and long service life.

Performance Characteristics

Nominal Voltage : 12V

Number of cell :6

Design Life (70%DOD): 300Times

Nominal Capacity 77°F(25°C)

5 hour rate(20.0A,10.5V) :100Ah

 2 hour rate( 41.5A,10.5V) :83.0Ah

1 hour rate(67.0A,9.6V) :67.0Ah

Internal Resistance

Fully Charged battery 77°F(25°C):1mOhms

Self-Discharge

3% of capacity declined per month at 25°C(average)

Operation Temperature Range

Discharge : -20~60°C

Charge :-10~60°C

Storage : -20~60°C

Max.Discharge Current 77°F(25°C) : 1000A(5s)

Short Circuit Current :2200A

Dimensions and Weight

Length ( mm  ): 410

Width ( mm ) :175

Height ( mm ) :205

Total Height ( mm):230

Approx.Weight( Kg ):25.5kg

Battery Constructionn

Charging Methods

*Temperature compensation of charging voltage is not needed when using the batteries within 15°C to 35°C range.

The Advantage of the Car Battery

------MAGIC-EYE INDICATOR OR HYDROMETER:

Green, white and red color indicates clearly different car battery charging state.

------COS PLATE WELDING:

 Low car battery defective rate, high cranking capacity and good anti-vibrating performance.

------ADVANCED HEAT-SEAL:

Technology to maximize seal strength and prevent the car batteries from electrolyte leakage.

------ENVELOP TYPE PE SEPATATOR:

Low electric resistance, light weight, strong movement of ions in vitriol solution, thus increase the car battery voltage and starting current to enable the battery keep good volume and stable condition.

------ANTI-VIBRATING BRACKET:

Protect the car batteries from vibrating and impact.

------HIGH PERFORMANCE LEAD-CALCIUM PLATES:

To enable the car batteries with low water loss , minimized self-discharge rate and improved life cycle.

------LEAD CALCIUM AND TIN PLATE GRIDS:

To keep the car batteries anti-oxidization, anti-corrosion, less water loss, low self-discharge and superior performance

OEM and ODM Service

Our Company can accept the customers' brand, producing the car battery which customers like.  All service are availble at working days from Monday to Satuardy

About us

With an investment of 13 millon RMB, ,Great Base power is a large modern comprehensive power enterprise ,specializing in production, R&D and sales of the full line of lead acid battery. Great Base Power mainly produce VRLA battery , Automotive battery ,Motorcycle  battery ,Motive power battery , Tricycle battery ,Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications .Its production capacity has reached more than 3 million KVAH per year. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.

Certified by ISO9001-2008,ISO14001 ,OHSMS18001,CE ,ROSH ,UL

All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest time.

Shaoguan Qujiang Greatbase Power Tech Co.,Ltd
Email: bonny at
Mobile: 86-0755-13066816338
Tel: 0086-755-22232277 ext 810
Fax: 0086-755-22232255
Skype: bonny.ning
Web:
Address: 908-909 Room, HaiYan Building, Jiabin Road, Luohu District, Shenzhen , China (sale department in Shenzhen)
                 Greatbase Power Industrial Park, Fengwan town, Qujiang, Shaoguan 512161, Guangdong China (factory)
