CE 24v DC Slider-driving Linear Actuator motors for furniture:
It can be used in sofa and chairs, Raising or falling of the back of electric sofa is based on the raise and falling of its white slider.

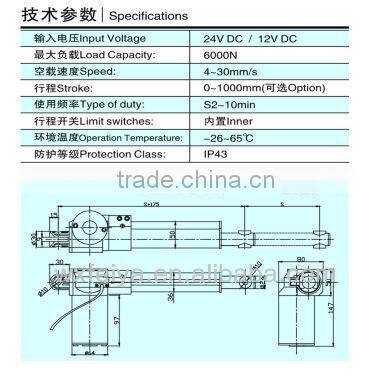

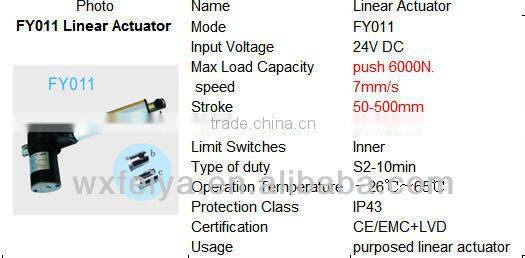

Specifications :
| 1) Thrust up to 6000N |
| 2) 12V / 24V DC input voltage |
| 3) Min Installation Dimension : S + 175mm |
| 4) Standard protection class, IP43 |
| 5) High-strength plastic housing protecting motor and gears |
| 6) Black plastic parts and anodized aluminium profile |
| 7) Noise level, 48 dB, actuator not loaded |
| 8) Elegant and compact design with small installation dimensions |
| 9) Colour, black plastic parts and natural anodiz ed Aluminium profile |
| 10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use |
Description :

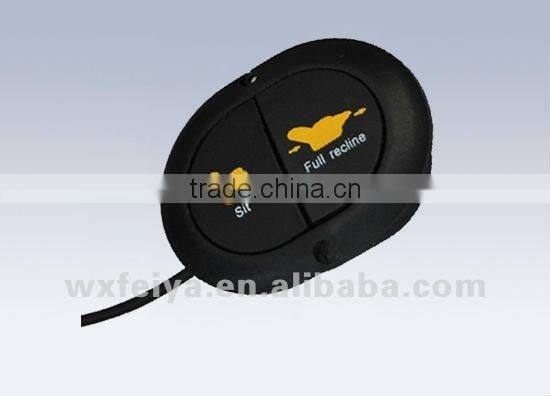

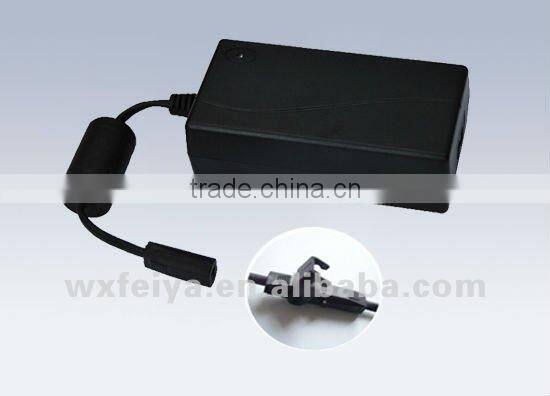

This type linear actuator allow you to screw the sliding block to your device giving flexibility and can also come complete ready to plug in and play out of the control box , include hand controller and power supply .
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance services
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message. We will reply your email or fax within 18 hours. Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.

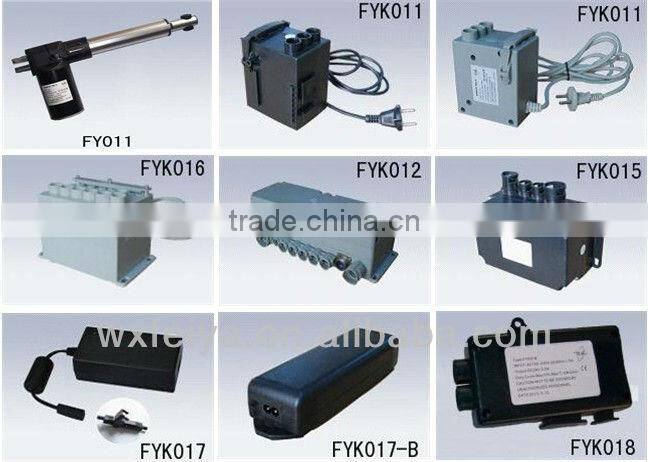

catalog for products
applying products
pictures for factory
Wuxi JDR Automation Equipment Co., Ltd (Original name:Wuxi Feiya Electronical Equipment Co., Ltd) ,established in 2004, is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator.Quality First, Customer Paramount" is our established guidelines.our linear actuator and rerevant equipments own high qulity and competitive price,moreover,our engineer are with rich exprience in this actuator motor field,the equipments are widely use for chairs ,recliner sofe ,medical bed and other industral filed. contact us! You are contact a reliable Linear actuator manufacture and are bound to received excellent products and service.
