Help CenterFY011 Linear Actuator
US$ 17 - 25
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JDR
Model Number:
FY011
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FY011 500mm Stroke Linear ActuatorUS$ 17 - 32MOQ: 100 Units -
FY011 1000mm Stroke Linear ActuatorUS$ 17 - 32MOQ: 100 Units
-
FY011 Mini dc MotorUS$ 17 - 32MOQ: 100 Units
-
Slide Linear Actuator FY014 KitUS$ 65 - 70MOQ: 20 Units
-
Cheap Electric Linear Actuator 300mm FY014 for Modern Home tv CabinetUS$ 27 - 35MOQ: 50 Units
Place of Origin
Jiangsu, China
Brand Name
JDR
Model Number
FY011
Usage
Other, electric sofa,medical chair,bed
Certification
CE, ROHS
Type
Other, Linear actuator
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Waterproof
Output Power
220w
Voltage(V)
24v
Efficiency
IE 4
|
Technical specifications: Stroke: 0-600mm Min. Installation dimension: stroke+175mm Load capacity: 750N,1500N,4000N,6000N Free load speed:30,18,11,8,4mm/s Input voltage: 24V DC / 12V DC Limit switch: inner Protection grade: IP43 Type of duty: S2-10min Operation temperature: -26~65°C |
Features: Material: Aluminum and plastic Color: black Warranty: two years Certification: CE/EMC+LVD |
This Linear Actuator is used to electric bed, electric sofa, massage chair, etc.
Control Box for the FY011 Linear Actuator

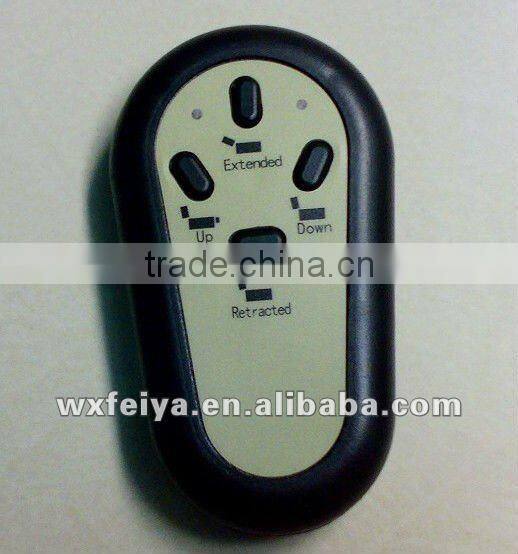

Handset of the FY011 Linear Actuator
factory picture
applying pictures
