Feature for wall mounted hot water heater
1. Spilt pressurized solar water heater with special copper heat pipes,rapid heat transfer,more reliable,higher efficient.
2. Perfect appearance anti-freeze,can be used in extreme cold area.
3. No water in the vacuum tubes,even one glass vacuum tube broke,the whole system still can work as usual,no leakage.
4. Can be connected with high pressure water pipe directly(max working pressure reach to 700 kPa).

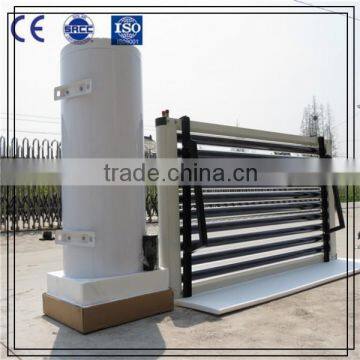

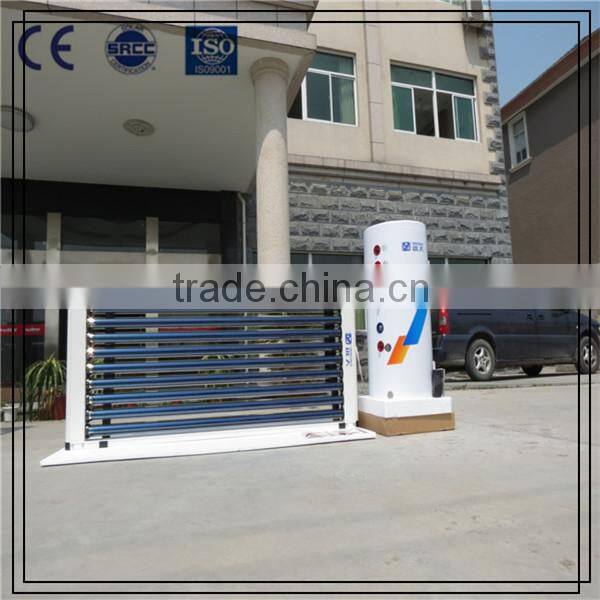

5. Solar collector and storage tank is seperated installation.
6. Pretty free installation of solar collector and storage tank according to building.
7. Easy plug-in installation and free maintenance.
8. The best choice for holiday village, villa, hotel.
Specifications for wall mounted hot water heater :
1. Inner tank material: SUS304-2B or SUS316, thickness: 1.0-2.0mm.
2. Outer tank material: color stainless steel.
3. Dual heat exchangers in tank.
4. Insulation layer: high density polyurethane foaming, thickness: 50-60mm.
5. Bracket: Galvanized steel,stainless steel,or Aluminum alloy.
6. Installation angle: 0--70°.
7. Working pressure: 0.7MPa.
8. Low temperature resistance: -40°C.

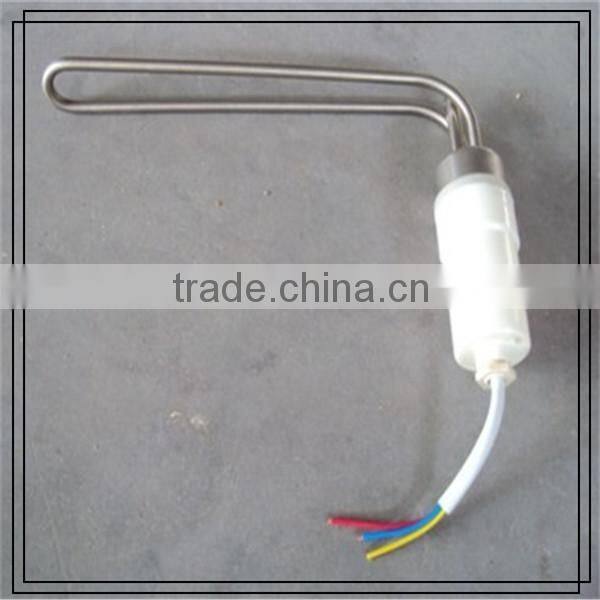

9. Electric heater:1.5-3kW.

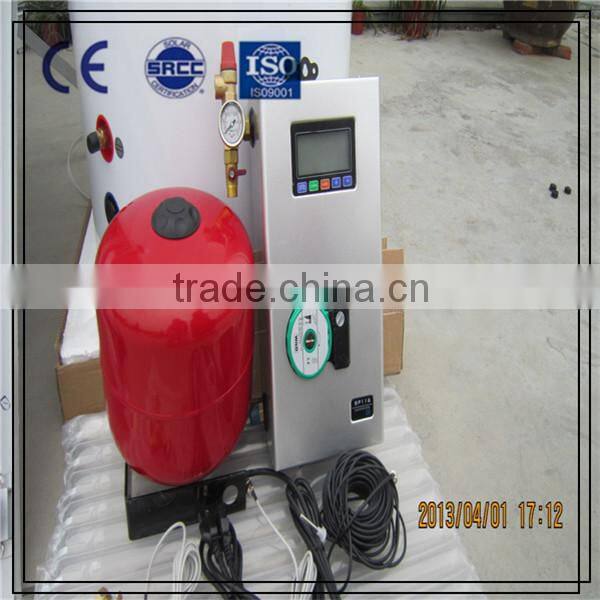

10. Workstation mainly includes expansion tank,circulation pump,controller,pressure gauge etc.
11. Standard packing: carton.
Features:
1)collector and storage tank is separation, pressure operation. The starage tank can be place anywhere you wanted.
2)Circulation pump make the medium cycle in the circulation line. Through the heat exchanger, it transfer the heat ennergy collected by solar collector to heat storage tank.
3)Metal heat pipe collector, no water insied the vacuum tube, double-loop system, anti-freeze , can be used all seasonal. Even under the Minus 50 degrees environment, it also can work very well.

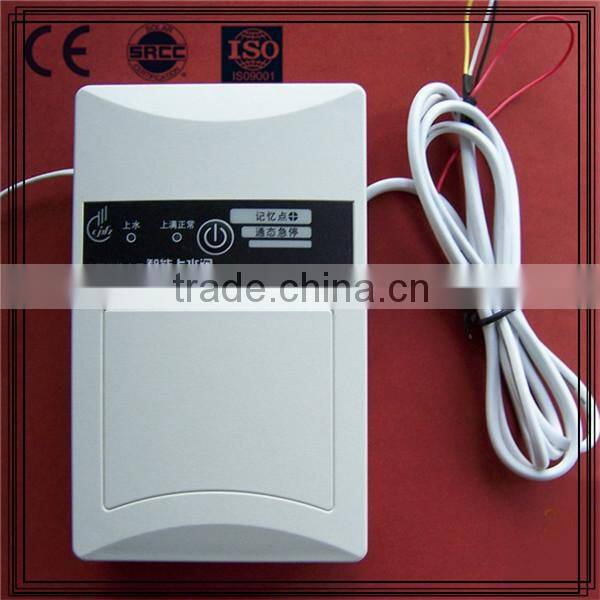

4)Using intelligent controller, automatic reliable operation. Fixed temperature, and maximum temperature setting, constant temperature timing heating and power set data memory protection, 24 hours hot water supply.
5)Collectors can be installed in the balcony, the south wall, slope roof, the canopy, the position such as inclined housetop, any place, split design, elegant appearance.
Working principle:
Balcony wall-mounted solar water heater is specially designed for high-level, small high-rise residential development, make up for the traditional solar water heater with congenital deficiency not with regret of perfect combination of architecture and environment, Use diameter 58 x1800mm three target vacuum tube collector, water tank, thickness 1.5 mm stainless steel 304-2b pressure water tank on the one hand can solve the problem of water. at the same time, it can solve the problem of water pressure, heat preservation water tank with 15 m diameter 12 mm copper plate heat exchanger dedicated tank.Wallmounted solar water heating system in a circular manner system used more indirect dual cycle, natural circulation mode, use antifreeze as heat transfer medium can rise to prevent frostbite, fouling prevention purposes, truly embodies the
perfect combination of solar energy and the building and environment integration.
