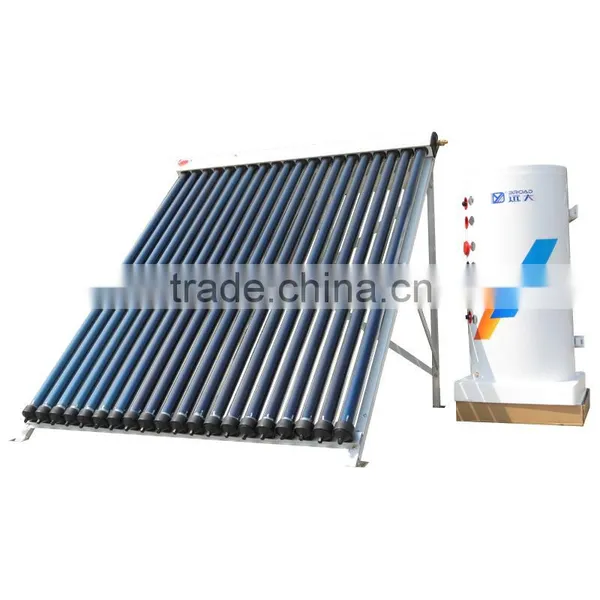

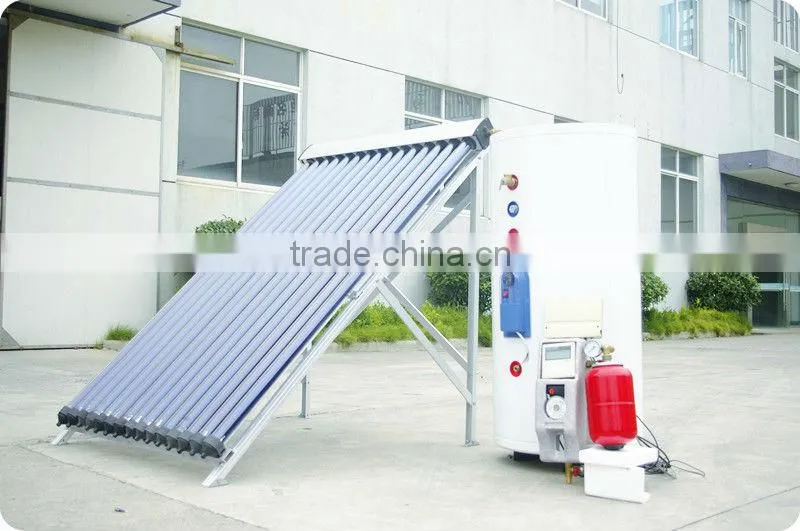

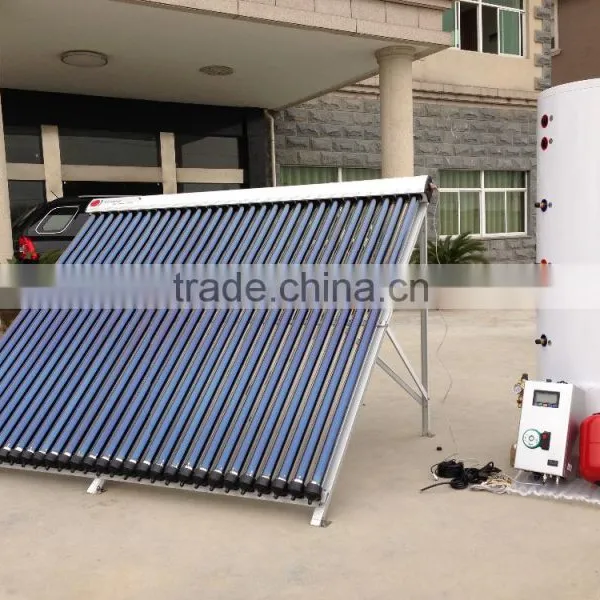

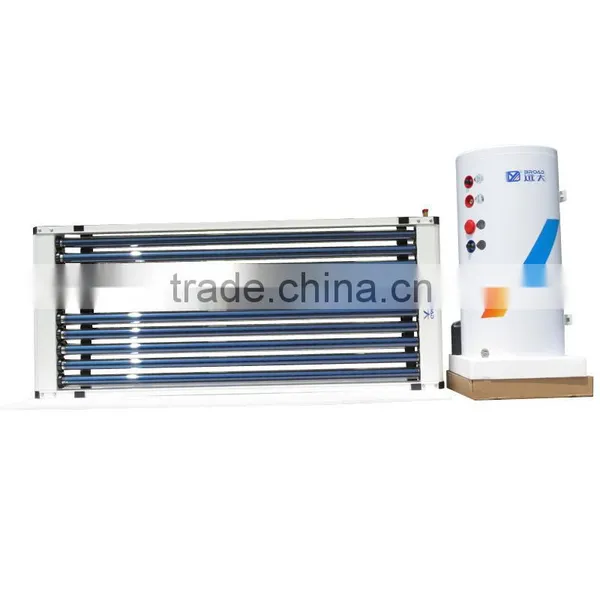

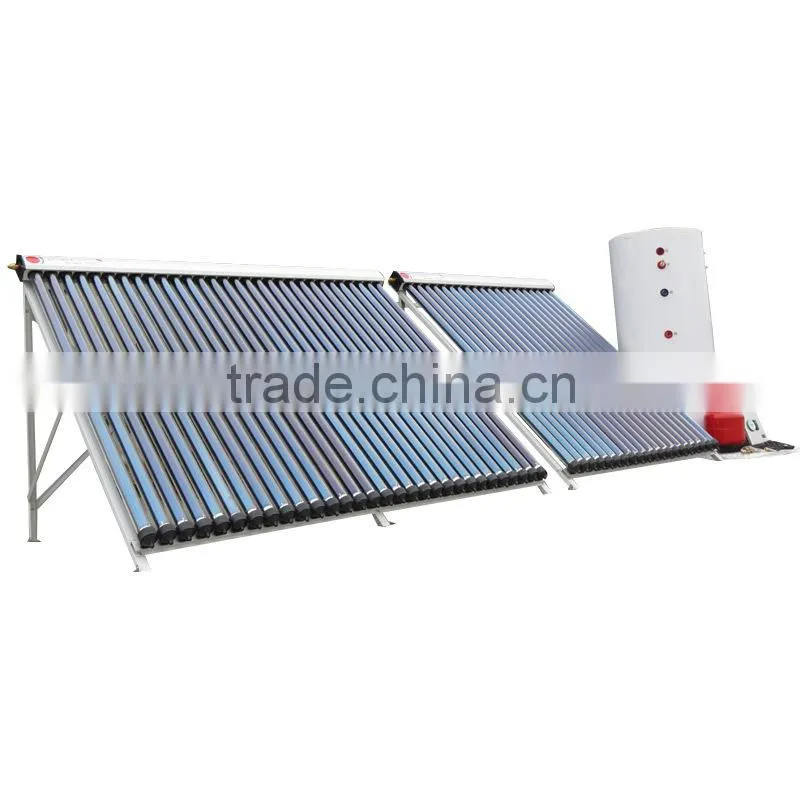

Heat Pipe Split pressurized Solar water heater solar collecting system
Model: SP6015

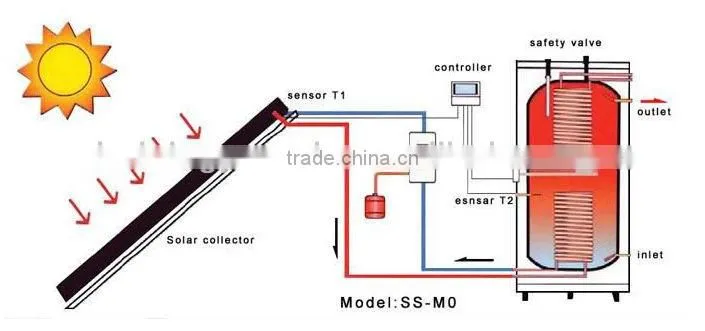

Working Principle
1. The solar collector absorbs solar energy and transmits it to the solar water heater tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically

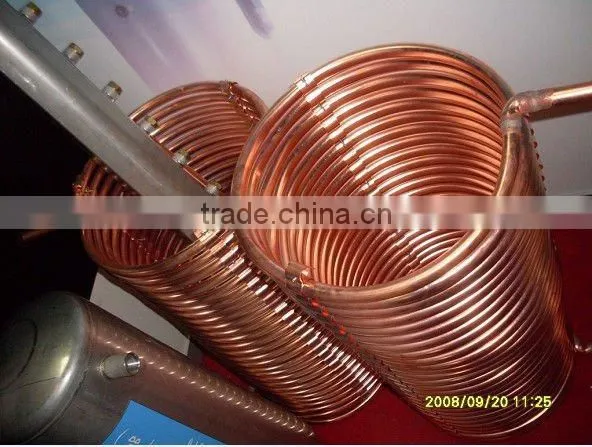

4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach T-max, Electric Heating Element will start to work automatically
Features
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming
Working Station Component
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
9. Wall mounting

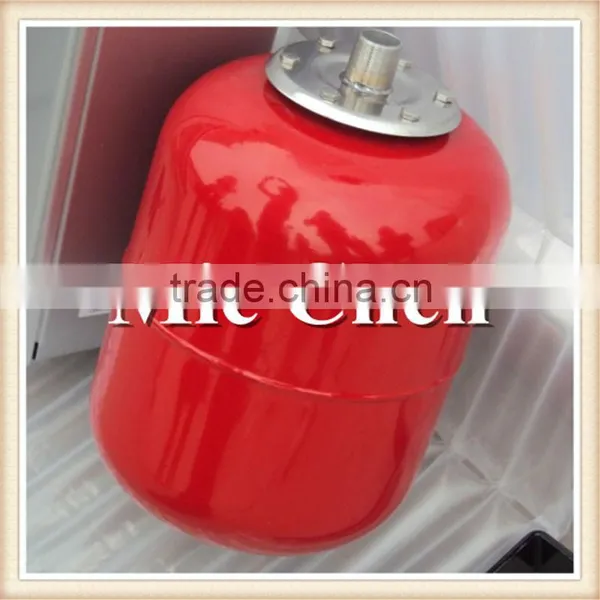

10. Expansion vessel:8L
11. Pressure resistance: 10 bar pressure for expansion vessel

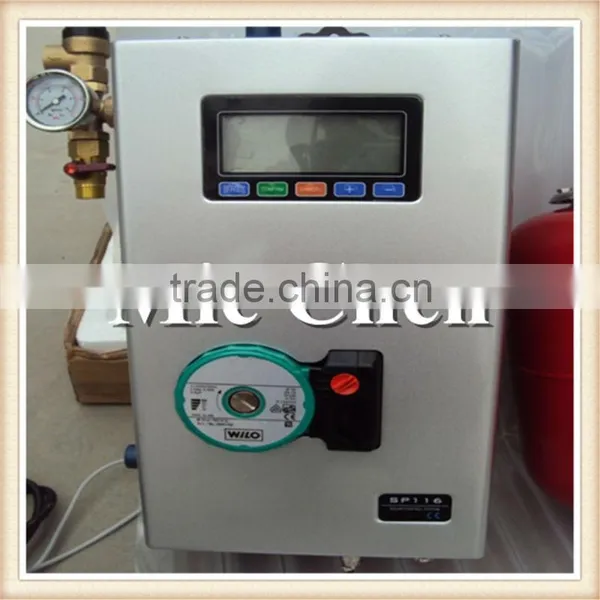

Pump Station Component
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel: 8L
12. Pressure resistance: 10 bar pressure for expansion vessel
Specification
1. Inner tank: stainless steel thickness 1.50-2.0MM
2. Outer tank: stainless steel thickness 0.35MM

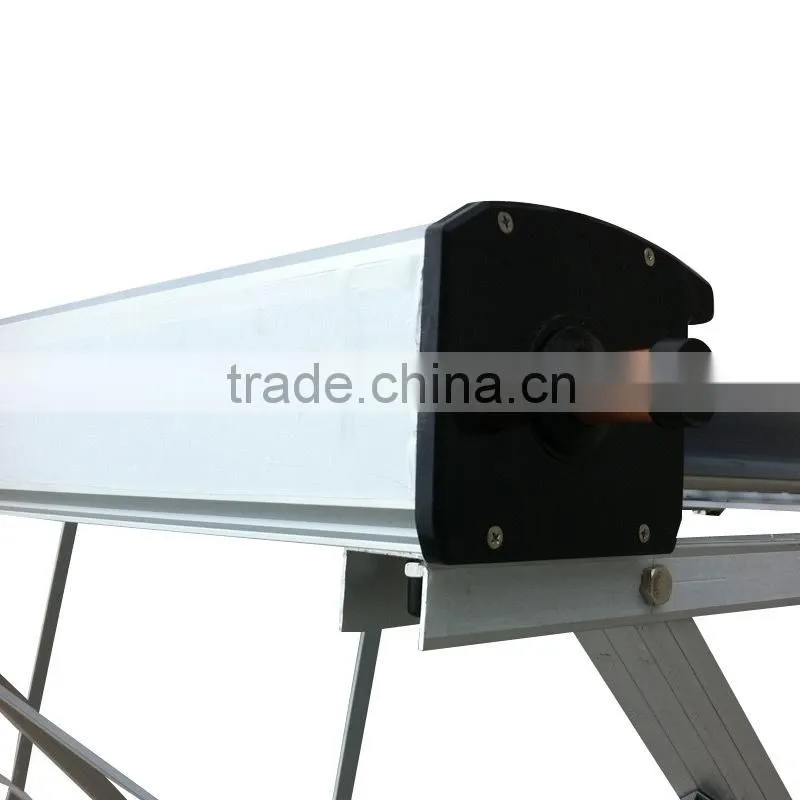

3. Manifold (interior): red copper
4. Manifold (exterior): aluminum alloy

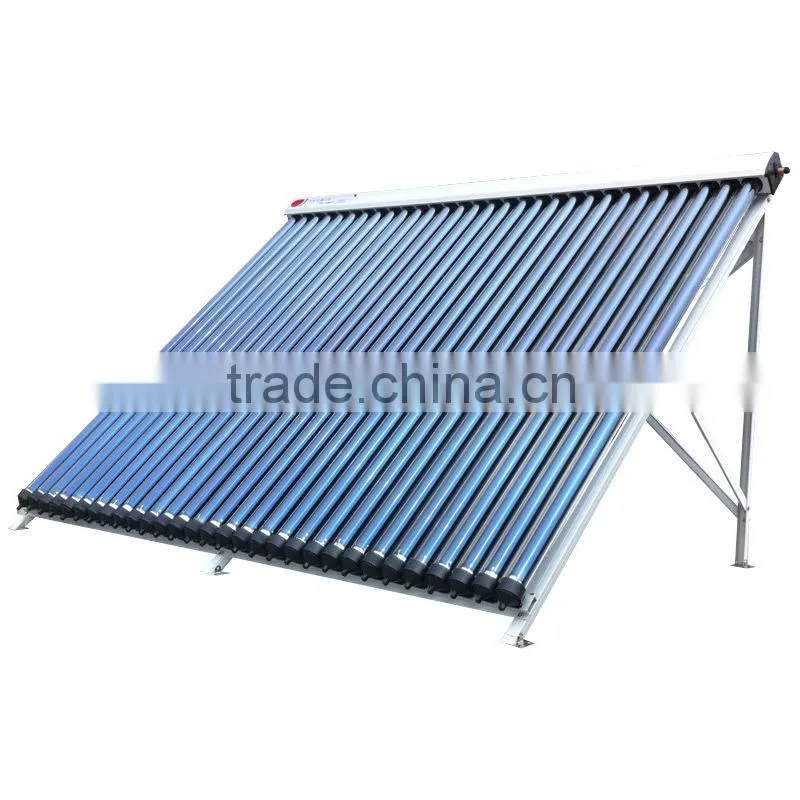

5. Glass tube dimensions: 58mm x 1.8m
6. Heat preservation: 72 hrs
7. Hail resistance: 25mm
8. max pressure: 0.6Mpa
9. Coating of vacuum tube: SS-C/CU
11. Anti-freezing > -35 degree

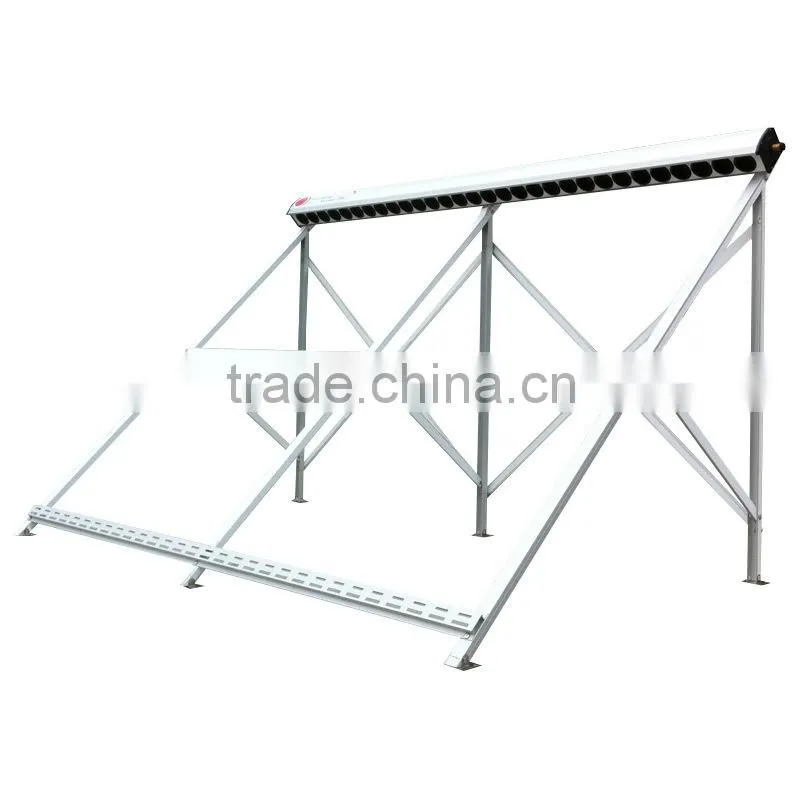

12. Bracket::aluminum alloy thickness 2.0MM
Benefits of this kind solar water heaters
1. Prolong the life of your existing water heater;
2. Costs less than an electric, gas or oil water heater;
3. No maintenance required;
4. Lasts longer than a traditional hot water heater;
5. Reduce your water heating costs;
6. Reduce your carbon footprint.
Advantages
1. High Efficient:

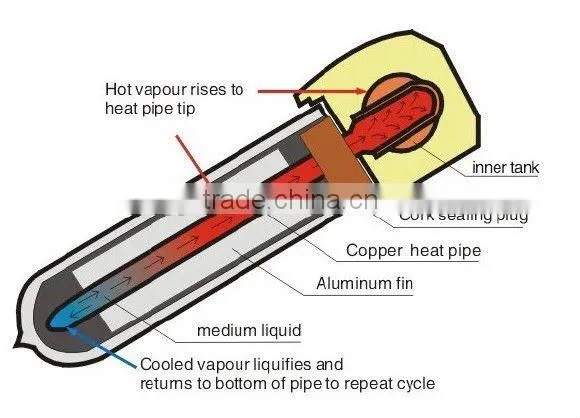

Advanced heat transferring style of heat pipes,excellent Selective absorption coating,perfectly combined with high vacuum heat preservation;
2. Convenient Installation:
Solar collectors are separated from storage tanks. The tank can be put at any place in house. And the collector can be put on inclined roof or flat place;
3. Module Design, Intelligent Control and Automatic Operation;
4. Anti-Freeze:No water inside the tubes when it works,so no freeze;
5. All Weather Hot Water Supply:Equipped with auxiliary electrical heating device,supplying enough hot water during bad weather days;
6. Multifunction: Bathing, washing, domestic heating etc;
7. Energy Saving and Environment Friendly:Taking advantage of solar energy, free of charge, and no pollution;
8. Stable and Reliable Performance, Well Wind Resistance.
Warranty
1.5 years' responsibility for free repairing or exchanging due to original quality problem
2.15 years' quality guarantee for the vacuum tube, and offering 0.8% vacuum tube free for exchanging in case several shattered ones during transportation.
Remark
Delivery time: 7-15days
Payment term: 100% T/T in advance for the sample
30% days payment by T/T,The balance 70% by T/T against the Copy of B/L for the container
Warranty: 5 Years for the full system, 15 Years for the vacuum tube, and 1year for the accessories
Delivery term: FOB preferred, CFR and CIF acceptable

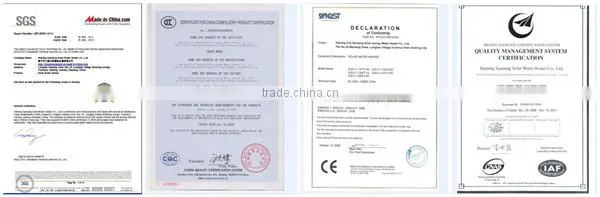

Certificates: CE,ISO,CCC,SGS
