1. Product description of engineering construction concrete mixer aluminum oil cooler
Application |
1.oil cooler for concrete mixer, pump truck etc. engineering machinery |
2.Aluminum plate and bar type oil cooler |
ing pressure: 2-40 bar |
ing temp : -10-220 Deg C |
5.ambient temp:0-50 Deg C |
Description |
pact bar and plate design, oil-cooled unit, higher strength and efficiency |
2.Delivery: Typically 7-30 days |
3. Painting: Black, silver, or according to customers’ requirements. |
Features |
1.Aluminum plate and bar/fin brazed concrete mixer oil cooler |
2. Powder coated durability and oxidation protection |
3.Compact design, light weight ,high efficient and low pressure drop |
4.Built in tank 12L,15L,18/20,25L |
5. Oil temperature control: 55- 60 centigrade |
6. Suction oil filter with filter element & pressure gauge |
7.12/24v electric cooling fan with cable wiring |
8.Thermo switch makes sure the fan work intermittent |
9.Filter grid size is about 10 um, and clogged filter cartridges can be changed without refilling the hydraulic system |
10.Easy installed on construction concrete mixer, pump truck etc. engineer machinery |
11.Transferred the heat from the fluid to the cooling air flow |
2. Product pictures of engineering construction concrete mixer aluminum oil cooler

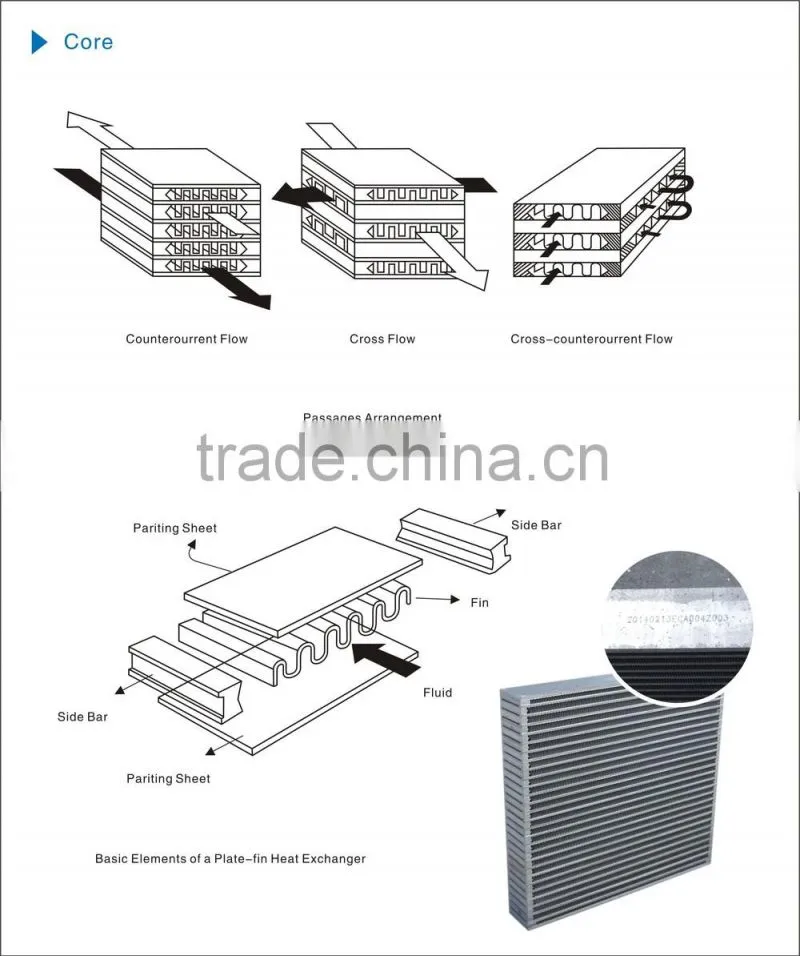

According to the different cooling requirements, we provide various types of fins & core.
Parameter of Fins:

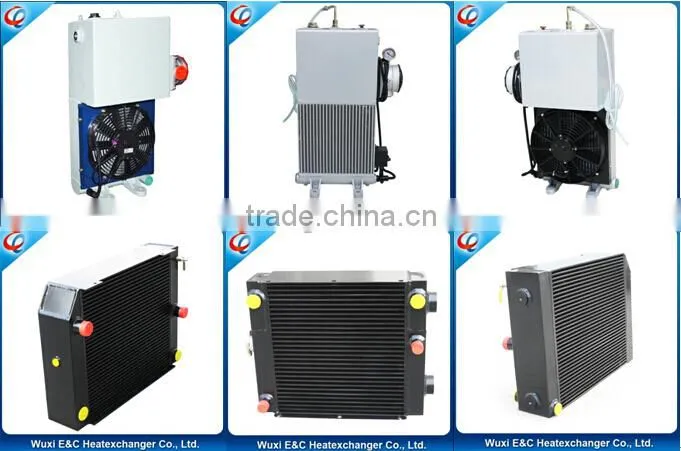

3. More aluminum oil coolers for you to choose
Wuxi E&C Heat Exchanger Co., Ltd. is a manufacturer of plate and bar heat exchangers with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in compressors, construction machinery, hydraulic systems and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:What is the material of your products?
A:The material is aluminum/stainless steel. We can also choose material as
customers'requirement.
3.Q:How can I get some samples?
A:We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. E&C people always attach great importance to quality controlling from the very beginning to the very end.Our factory has gained ISO-9001, CE authentication.
5.Q:Where is your factory located? How can I visit there? A:Location Wuxi E&C Heat Exchanger Co.,Ltd is located in wuxi city, Jiangsu Province, P.R. China: About 1 hour highspeed train from Shanghai to wuxi;40mins from Wuxi Railway station to our factory; 1hour from Wuxi airport to our factory;Less than 20 mins from highway to our factory.B.Details,pls see the maps 1&2.
