Home > Consumer Electronics > Water Heater & Components > Solar Water Heater > High Quality Solar Work Station SP116

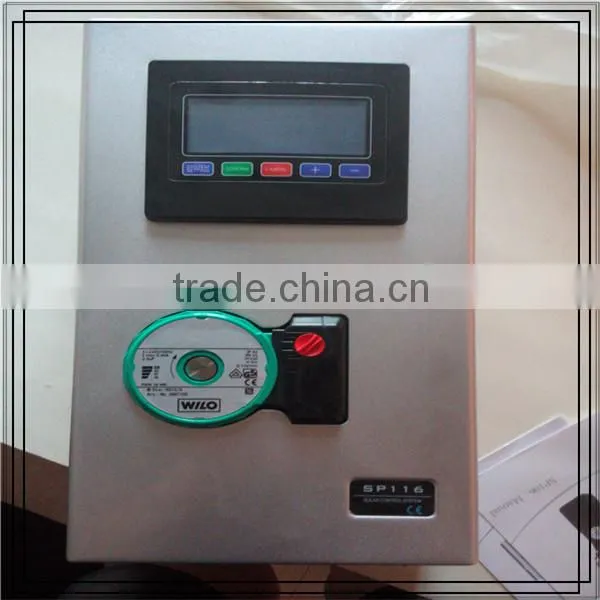

High Quality Solar Work Station SP116

High Quality Solar Work Station SP116 thumbnail-1
High Quality Solar Work Station SP116 photo-1
US$ 10 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Contact Supplier Request Quote Chat Now
Haining Sanneng Solar Water Heater Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Evacuated Tube
Pressure Pressurized
Circulation Type Indirect / Closed Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Split
Installation Freestanding
Housing Material Plastic
Certification CE, Other, CE, CCC SGS ISO
Place of Origin Zhejiang, China
Brand Name SANNENG/OEM
Model Number SN-WS01

   high quality Solar Work Station SP116

High Quality Solar Work Station SP116

High Quality Solar Work Station SP116High Quality Solar Work Station SP116

High Quality Solar Work Station SP116

Main technical data:

1. Dimension: 380×220×140mm.

2. Input voltage: 200V~240V AC or 100V~120V AC.

3. Power: ≤3W.

4. Accuracy of temperature measuring: ±1°C.

5. Range of temperature measuring: PT1000 : 0~199°C NTC10K: 0~99°C.

6. Input signals:

1 x PT1000 sensor temperature probe ≤500°C, silicon cable ≤280°C;

2 x NTC10K sensor temperature probe≤135°C, PVC cable ≤105°C.

7. Output signals:

1 x Auxiliary heating output (Max. load current: 12A)

2 x Relay output (Max. load current: 3A)

8. System design pressure: 1 MPa

9. Safety valve respond pressure: 0.6 MPa

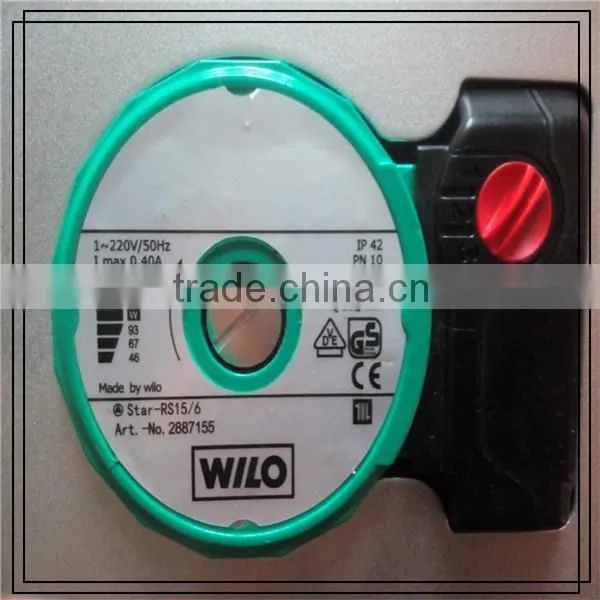

10. WILO pump model: RS15/6

11. Screw coupling: 1/2

12. Pipeline Material: Brass

13. Secondary display screen (For selection)

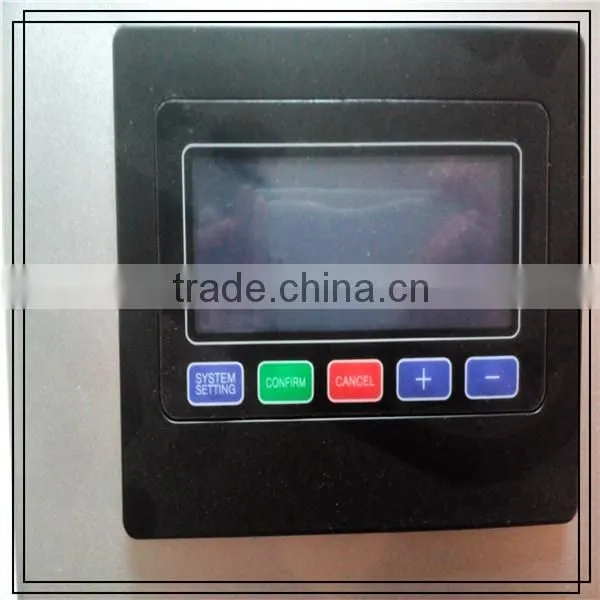

14. LCD-display

15. Range of environment temperature: -10~50°C

16. Water protection grade: IP40

Main functions:

1. Time display

2. Temperature difference circulation

3. Storage tank overheating protection

4. Emergent stop of system overheating

5. Frost protection of pipeline and collector

6. Three periods of time adjustable on pipeline circulation

7. Three periods of time adjustable on auxiliary heating

8. Holiday function

9. Anti-bacteria function

10. Three speed levels on circulation pump

11. Display flow rate

12. Display system pressure.

High Quality Solar Work Station SP116
