Specifications

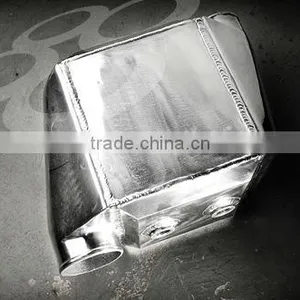

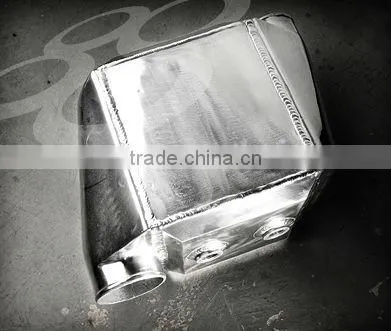

Water to Air IntercoolerOur largest water to air intercooler.
The proportions are somewhat crazy, please make sure it will fit before ordering. If you have the room, there's nothing better.
The height, its smallest dimension, is nine inches. The total core size is almost 1500 cubic inches. Recommended for up to two thousand horsepower.
We have customers using these on semi trucks!
100% Lightweight aluminum, No Epoxy Used In Core
Recommended for over 2500 CFM
Pressure Drop: Less than 0.5 PSI. This is not a typo! Liquid/Air Intercoolers have incredibly low pressure drop.
Inlet: 4" Outlet: 4"
Maximum water/air pressure: 70 PSI
This intercooler has the inlet and outlet on the OPPOSITE SIDE.
Note: The water inlet and outlet on most water/air intercooles are BPT threads. BPT fittings are difficult to find in the United States, so ours all come with NPT threads. Water Inlet/outlet: 3/4 NPT
