12v High Speed Electric Tubular Lineactuator Fast Linear Actuators
- Shanghai
You May Like
-
750N Power Supply 12V DC Speed 10mm/s Stroke150mm Linear Actuator
-
12V 24V DC Mini Linear Actuator With Potentiometer
-
Gear Motor Type and Waterproof Linear Actuator
-
Fittings Type Mini Linear Actuators
-
Drip-proof Protect Feature and Gear Motor Type 12v Linear Actuator
-
Self-lock Industry Mini Linear Actuators 12v
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDR | |
| Model Number | FY021 |
Product Description

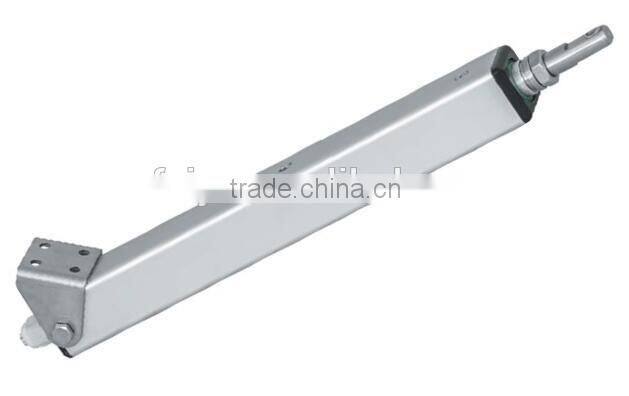

Mini actuator 1000N
*Designed for use with torque arm system
*Compact size
*Safe, low voltage operator, 24v or 12V
Specifications:
1) Voltage: 24VDC or 12VDC
2) Capacity: 250N /500N/750N/1000N
3) Max Speed: 25mm/s
4) Stroke: 50mm ~ 650mm
5)Type of duty: 10% or 2 minutes continuous use followed
by 18 minutes not in use
6) Protection class: IP54
7) Built-in limit switches, not adjustable after leave factory
8) Certification: CE, RoHS
Features :
1) Powder Coated Steel Outer Tube
2) Lubrication for life time
3) Aluminum extension and outer tubes
4) Enhanced Corrosion Resistance
5) Powder Coated Aluminum Alloy Housing
Name: | Industrial Linear Actuator |
Model: | FY021 |
Usage: | Electric Window, Skylight Canopy, other Application use |
Input Voltage: | 12v or 24v DC |
Load Capacity: | 1000N |
Free Load Speed: | 25mm/s |
Standard Stroke: | 100mm |
Installation Dimension: | 100 --- 330mm |
Type of Duty: | S2 -- 10 min (2 minutes work, 18 minutes rest) |
Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
Work Temp.: | -26 to 65 centigrade |
Protection Grade: | IP54 |
Certificate: | CE / EMC + LVD, RoHS |
Control Box Used: | Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 | |
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 | |
Control 4 Linear Actuators: FYK012-4, FYK016-4 | |
Control 5 Linear Actuators: FYK012-5, FYK016-5 | |
Control 6 Linear Actuators: FYK016-6 | |
Handset Used: | All FYH Series Handset, Pls contact us for detail pictures. |
High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.
Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series
Item Number:FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of OurElectric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage:24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class:IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.

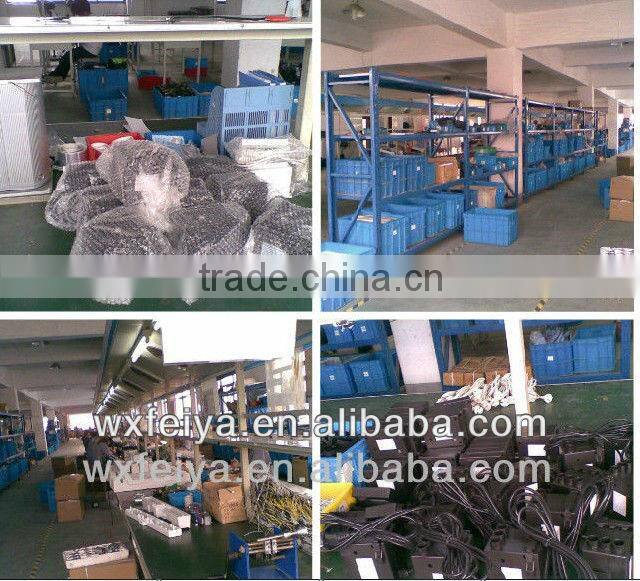

JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation

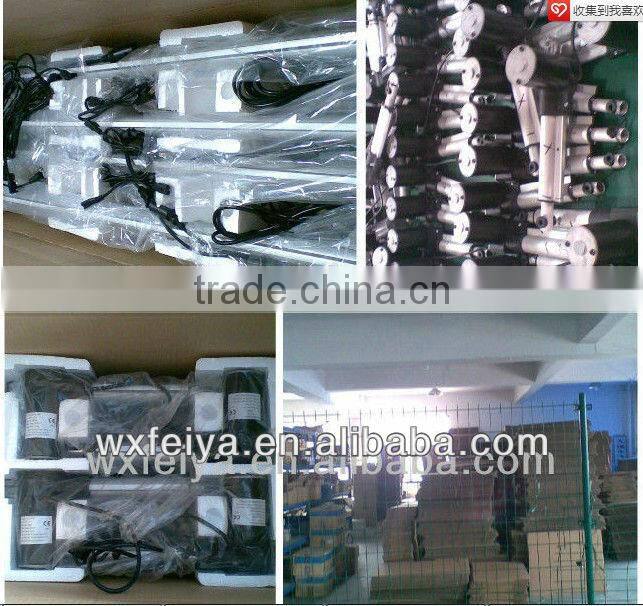

All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
