Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1

Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1 thumbnail-1
Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1 thumbnail-2
Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1 photo-1
Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1 photo-2
US$ 12 - 15 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PROYU
Model Number:
PY-EL5-1
Contact Supplier Request Quote Chat Now
Shenzhen Proyu Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PROYU
Model Number PY-EL5-1

Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1

Features of magnetic door lock  :



Collinear Load Test 60kg,100pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Anti-Residual Magneism Designed
High Strength Material,Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force,Dual Insulative Hosing



Application of magnetic door lock   : File Cabinet ,Display Cabinet



Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1

Technical Specification of magnetic door lock  :



Lock Size: 80Lx35Wx20H(mm)

L type bracket:L80×W40×H3
Holding Force: 60kg(100Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/100mA
Suitable for: File Cabinet ,Display Cabinet
Surface Temp: ≤+20°C
Operating Temp: 10~+55°C(14-131F)
Suitable Humidity:  0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc

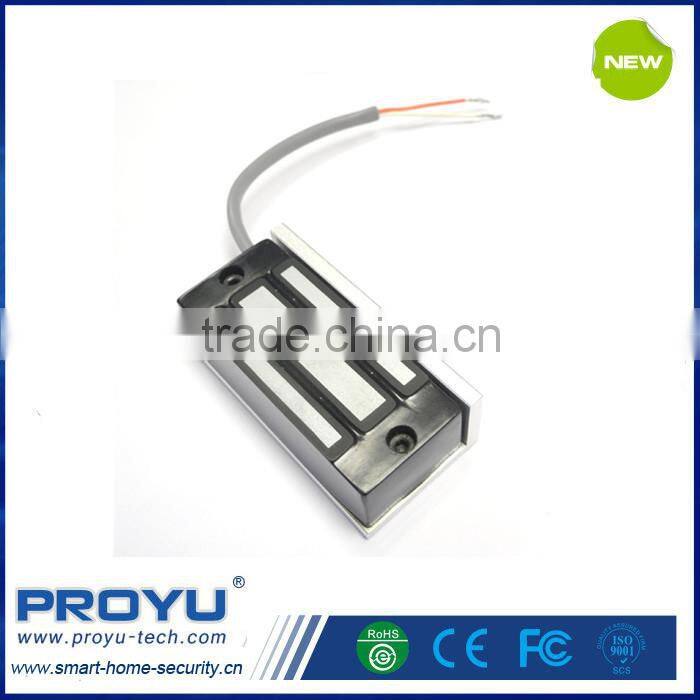

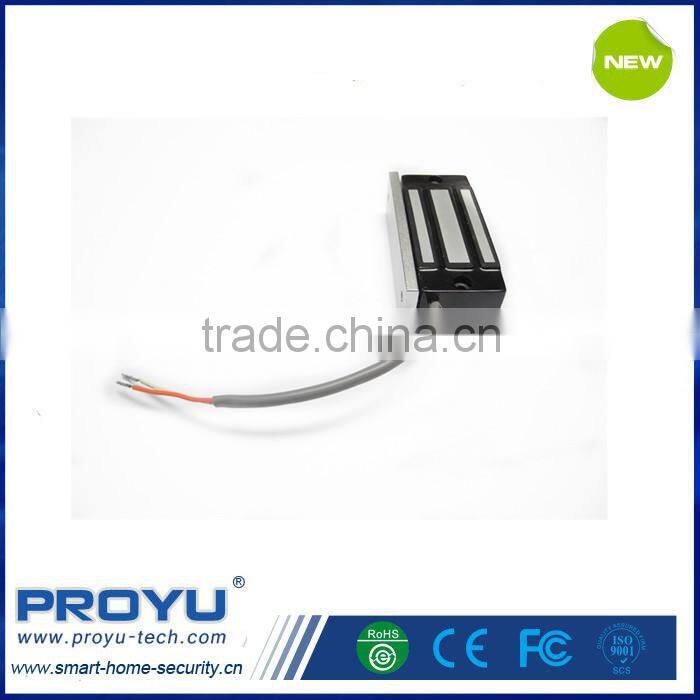

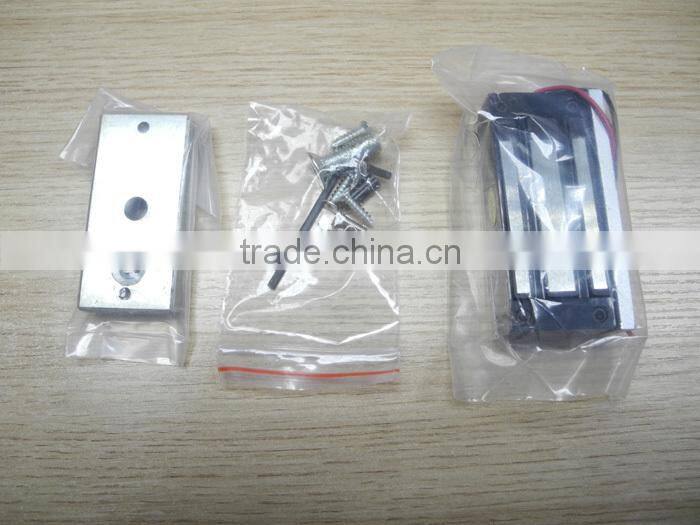

magnetic door lock  detail picture

Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1





Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1





 Door Access Control 60Kg Electric Magnetic Lock PY-EL5-1
