FY016 Electric Vibrator Motor Linear Actuator Stroke Optional

Detailed Product Description   electric vibrator motor

        Dual Actuator : 1) dual linear actuator 2) used for home bed 3) electric double motors 4) ce ceritificate

Dual Actuator with emergency function under no   power

Features

Specifications    be electric vibrator motor

      1.24V DC twin drive

      2.Max Pushing force:2x4500N

      3. Standard stroke 87-69/87-87/69-69 , other strokes are on request

      4.Max pushing speed 4.3mm/s

      5.Power supply: 100-110v/220-240v

       6.Duty cycle : 2/18 mints. 10%

      8.Smart, slinky, original design

      9.Installation dimension : 581mm + 2mm

     10.Protection Class: IP20

     11.Ambient temperature : -5 to 40

     12.Color: Black or White

     13. Built-in limit switch , not adjustable after leaving the factory

     14. Mains isolation in the mains plug .

     15. With overload protection function

     16. With emergency function under the sudden power failure

     17. Strong intensify plastic housing protects motor and gear

     18. Low noise design , db < 48 (A)

     19. Connectivity : 1 handset  or 1 handset & two single actuators

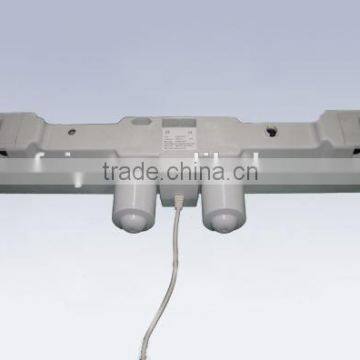

Product picture electric vibrator motor

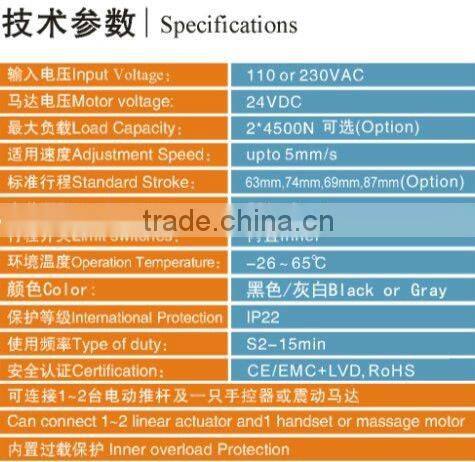

      electric vibrator motor specification

      electric vibrator motor installation

More prodcut

 Certificates of   electric vibrator motor

connection for linear actuator and control box with handset

applying pictures for   electric vibrator motor

 factory picture product line and packing
