DC12V or DC24V Adjust LED 600lbs Magnetic Lock Security Glass Door With Time Delay PY-EL5-4SD Supplier's Choice

DC12V or DC24V Adjust LED 600lbs Magnetic Lock Security Glass Door With Time Delay PY-EL5-4SD Supplier's Choice photo-1
DC12V or DC24V Adjust LED 600lbs Magnetic Lock Security Glass Door With Time Delay PY-EL5-4SD Supplier's Choice photo-2
DC12V or DC24V Adjust LED 600lbs Magnetic Lock Security Glass Door With Time Delay PY-EL5-4SD Supplier's Choice photo-3
DC12V or DC24V Adjust LED 600lbs Magnetic Lock Security Glass Door With Time Delay PY-EL5-4SD Supplier's Choice photo-4
DC12V or DC24V Adjust LED 600lbs Magnetic Lock Security Glass Door With Time Delay PY-EL5-4SD Supplier's Choice photo-5
DC12V or DC24V Adjust LED 600lbs Magnetic Lock Security Glass Door With Time Delay PY-EL5-4SD Supplier's Choice photo-6
US$ 24 - 28 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Proyu
Model Number:
PY-EL5-4SD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Proyu
Model Number PY-EL5-4SD

DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD

DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD



1:what are they ?

Electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate.



2: How they work?

When the electromagnet is energized, a current passing through the electromagnet creates a magnetic flux that causes the armature plate to attract to the electromagnet, creating a locking action.


Description:



Product ParameterParameter Spec.
Lock size250 x 48 x 29mm
Armature plate size 180 x 38 x 11mm
Holding force280kg (600lbs)
Dual voltageDC12V/DC24V
CurrentDC12V/480mA, DC24V/240mA
Fail safelocked when energized
Safety functionbuilt-in voltage spike suppressor
Opening mode90-degree swinging door
Suitable forwooden doors, glass doors, metal doors, fireproof doors
weight2.1kg



Installation style:

1.Embeded

DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD

2.Surface installed

DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD



3.For Glasss door

DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD

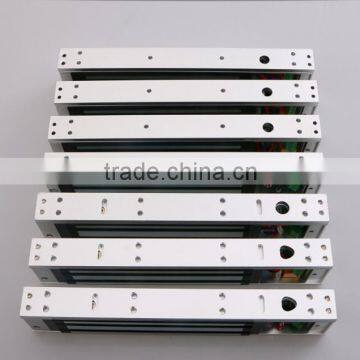

 Detail Show:

DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SDDC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD

Benefits:
With dual voltage of 12V and 24V, which can be adjusted by the voltage selector.
Imaterial of PCB enables a stable voltage and long life.
Better aluminium and better plating.



 Work show:

DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD



Bracket Type:
DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD

 Wiring:

DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD

 FactoryShow:

 DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD

Excellent Service:

Advantage:

1.Good quality with competitive price

2.Professional technique supports and great services

3.Fast delivery and safe shipping way

Payment terms:

T/T,Western Union, Paypal

Shipping way

Fast way: by Express courier, such as DHL,FedEx,UPS,TNT,EMS etc.,

Feedback quickly:

Any inquires will be replied within 24 hours;

We can provide online supports for you when need helps on testing.

Warranty:

1-2 years warranty from the date of delivery.A lifetime technical support.

We warmly welcome you will join us,make Win-Win cooperation.

                                                                  DC12V or DC24V adjust LED 600lbs magnetic lock security glass door with time delay PY-EL5-4SD
