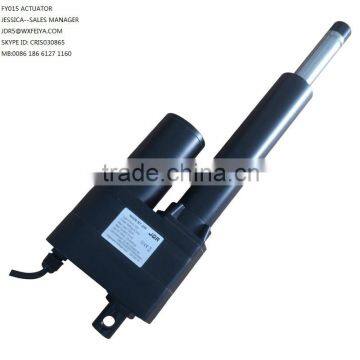

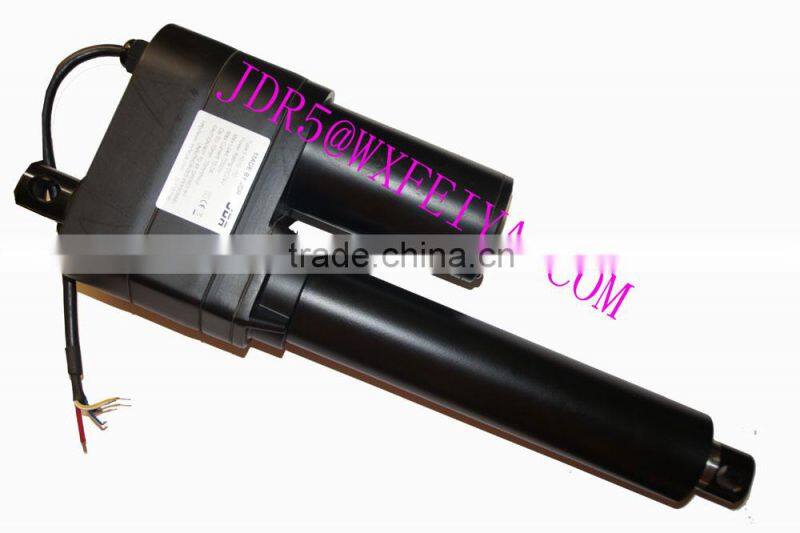

Help CenterLinear Actuator With METAL Gear
Related Products
-
Hih Quality FY015 Inner Switching Powerful Linear Actuator IP65US$ 130 - 150MOQ: 10 Pieces -
FY015 Inner Switching Powerful Linear Actuator IP65US$ 130 - 150MOQ: 10 Pieces
-
CE ROHS Certificates FY015 12v 24v dc Motor High Waterproof IP65 Linear ActuatorUS$ 135 - 150MOQ: 10 Pieces
-
10000N FY015 High Quality Fast Speed Industrial Mini Motor Linear ActuatorUS$ 120 - 150MOQ: 10 Units
-
FY015 Electric dc Motor Linear Actuator 12V 24V for Solar Tracker 400mm StrokeUS$ 120 - 150MOQ: 10 Units

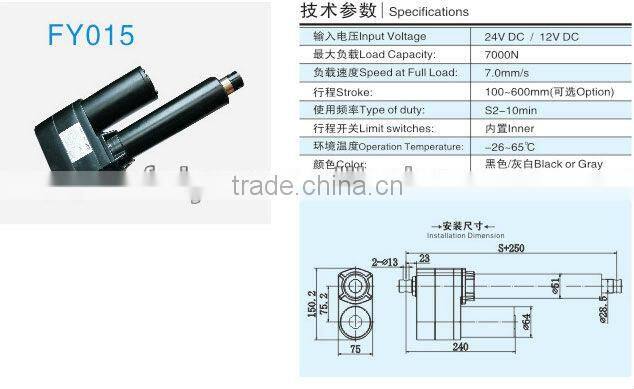

Specifications:
Input voltage: DC 24V/12V
Load capacity: 7000N
Stroke: 100mm-600mm
Speed: 6mm/s~7mm/s
Material of transmission pole: stainless steel
Limit switches: Inner
Color: gray
Protection class: IP65
Name: |
Industrial Linear Actuator |
Model: |
FY015 |
Usage: |
Solar panel lift, truck lift, other Application use |
Input Voltage: |
12v DC or 24v DC |
Load Capacity: |
7000N |
Free Load Speed: |
7mm/s |
Standard Stroke: |
100-600mm |
Installation Dimension: |
250mm (more or less 15mm) |
Type of Duty: |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
Limit Switch: |
Builtin / Inner (can not be adjust after left factory) |
Work Temp.: |
-26 to 65 centigrade |
Protection Grade: |
IP65/IP54 |
Certificate: |
CE / EMC + LVD, RoHS |

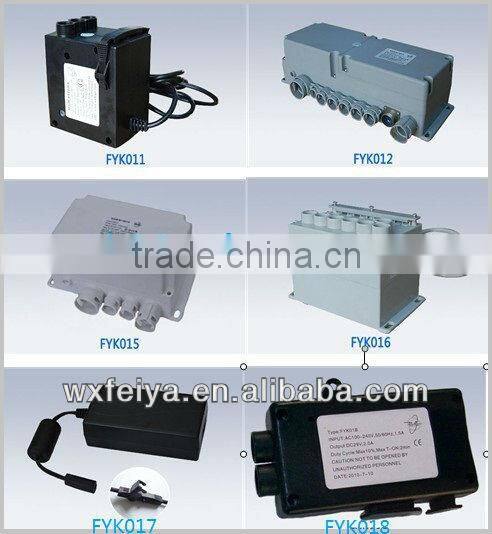

Control Box Used: |
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
|
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
|
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
|
Control 4 Linear Actuators: FYK012-4, FYK016-4 |
|
Control 5 Linear Actuators: FYK012-5, FYK016-5 |
|
Control 6 Linear Actuators: FYK016-6 |
|

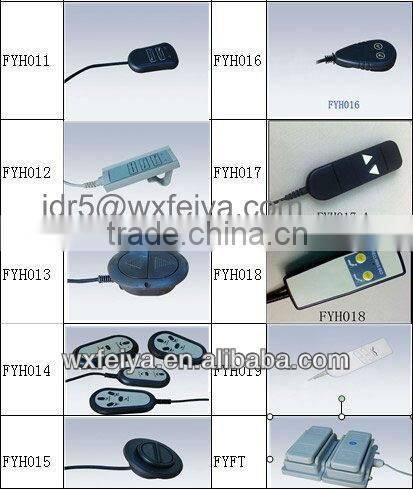

Handset Used: |
All FYH Series Handset, Pls contact us for detail pictures. |
,
High quality of electric linear actuator to worldwide customers. We are professional manufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
