60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1

60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 thumbnail-1
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 thumbnail-2
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 thumbnail-3
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 thumbnail-4
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 thumbnail-5
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 photo-1
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 photo-2
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 photo-3
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 photo-4
60KG/100lbs Single Door Mini Magnetic Lock for Access Control PY-EL5-1 photo-5
US$ 12 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PROYU
Model Number:
PY-EL5-1
Contact Supplier Request Quote Chat Now
Shenzhen Proyu Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PROYU
Model Number PY-EL5-1

60KG/100lbs single door mini magnetic lock for access control PY-EL5-1



60KG/100lbs single door mini magnetic lock for access control PY-EL5-1



Features:

Collinear Load Test 60kg,100pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Anti-Residual Magneism Designed
High Strength Material,Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force,Dual Insulative Hosing



Application: File Cabinet ,Display Cabinet



Technical Specification:



Lock Size: 80Lx35Wx20H(mm)

L type bracket:L80×W40×H3
Holding Force: 60kg(100Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/100mA
Suitable for: File Cabinet ,Display Cabinet
Surface Temp: ≤+20°C
Operating Temp: 10~+55°C(14-131F)
Suitable Humidity:  0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc

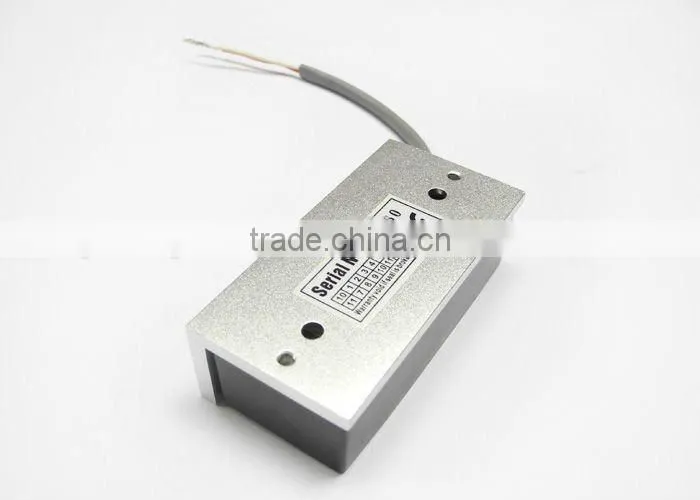

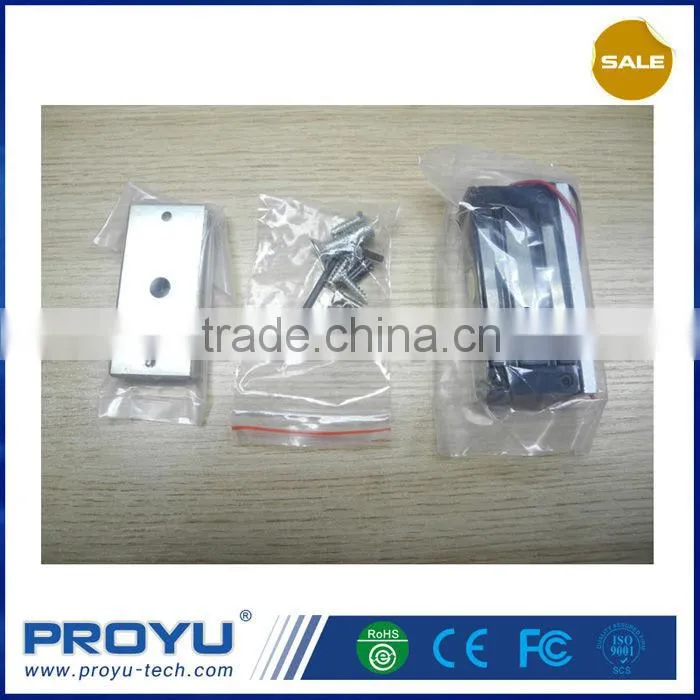

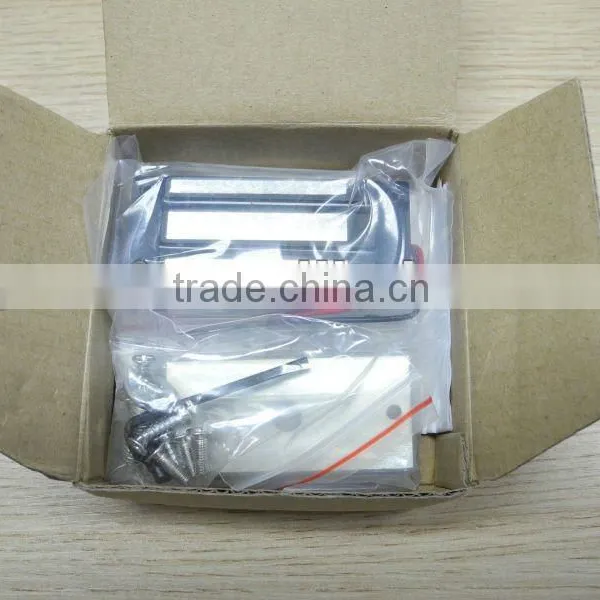

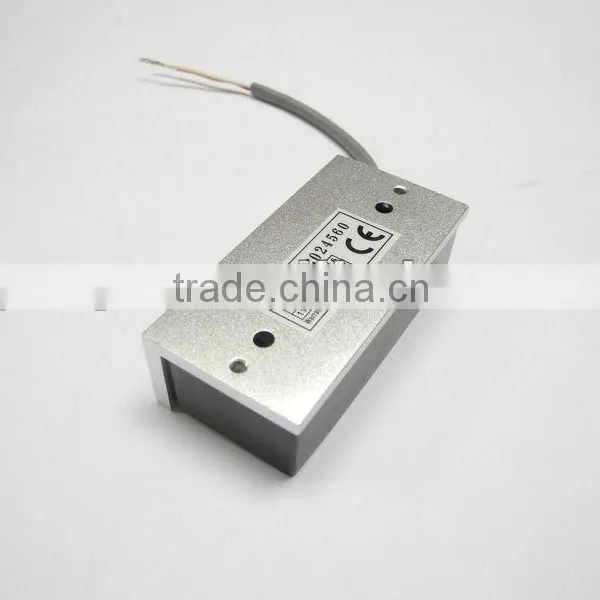

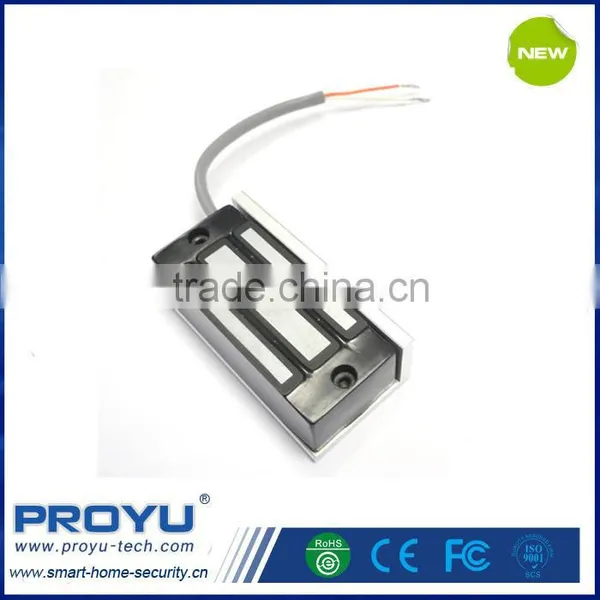

Product Show:

60KG/100lbs single door mini magnetic lock for access control PY-EL5-160KG/100lbs single door mini magnetic lock for access control PY-EL5-160KG/100lbs single door mini magnetic lock for access control PY-EL5-1

Our Services

Advantage:

1.Good quality with competitive price

2.Professional technique supports and great services

3.Fast delivery and safe shipping way

Payment terms:

T/T,Western Union, Paypal

Shipping way

Fast way: by Express courier, such as DHL,FedEx,UPS,TNT,EMS etc.,

Feedback quickly:

Any inquires will be replied within 24 hours;

We can provide online supports for you when need helps on testing.

Warranty:

1-2 years warranty from the date of delivery.A lifetime technical support.

We warmly welcome you will join us,make Win-Win cooperation.
