Specifications
1.Switch Power Supply2.Full voltage input
3.Defencive Function: Short Circuit/Overload/Overvoltage
4.100% Burn Test

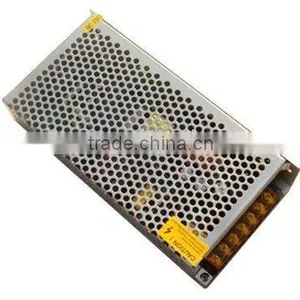

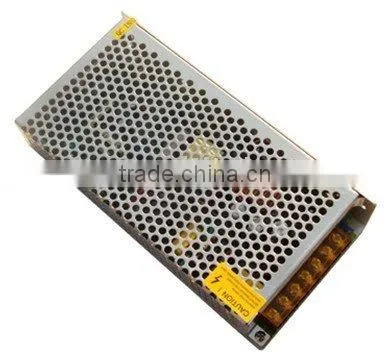

150W Switch Power Supply PY-12V12.5A
` Full voltage input
` Miniaturization
` Defencive Function: Short Circuit/Overload/Overvoltage
` 100% Burn Test
Input Voltage&Frequency Range----------85~264VAC/47~63Hz
Inrush starting current ---------------20A@120VAC (cold boot)
Output Adjust Range ---------------±10%(Rated Output Voltage)
Overcurrent Protection-------------------105%~200%(Rated Load), Safe-Fail
Overvoltage Protection-------------------115%~135%(Rated Output Voltage)
Short-circuit Protection-------------------Safe-Fail
Output Starting Time---------------≤2S@120VAC ≤1.0S@230VAC
Output Holding Time---------------≥10mS@120VAC,≥20mS@230VAC
Insulating Strength-------------------Input-Output: AC1500V,1min
Input-Enclosure: AC1500V,1min
Output-Enclosure: DC500V,1min
Work Environment------------------ -10°C~50°C; 20%~90%RH(No Condensation)
Safty Standard-------------------Design Reference EN/UL60950
Electromagnetic Compatibility Standard---------------Design Reference EN55022 Class B;
EN61000-4-2/-3/-4/-5/-6/-11
Measurement(L*W*H)-----------199*98*42mm
Model |
Output Voltage/Current |
Voltage Stabilization Delicacy |
Rippe&Noise |
Efficiency |
|
PY-5V30A |
5V |
30A |
±3% |
≤50mV |
92% |
PY-12V12.5A |
12V |
12.5A |
±3% |
≤120mV |
92% |
PY-15V10A |
15V |
10A |
±3% |
≤150mV |
92% |
PY-24V6.5A |
24V |
6.5A |
±3% |
≤240mV |
92% |
