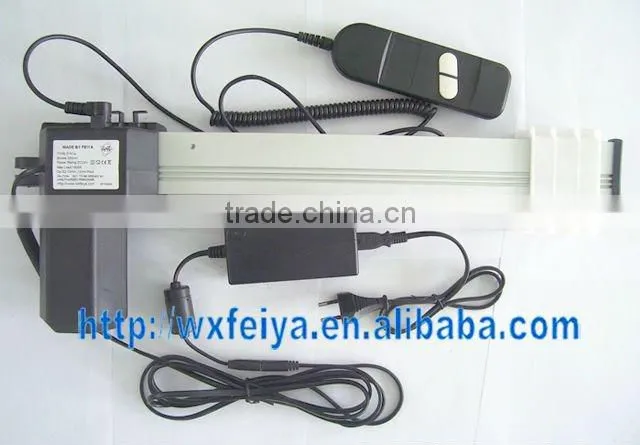

Help CenterFY014 Max Speed 35mm/s Digital 12v Linear Actuator for Electric Bed Linear Actuator
Related Products
-
Feiya CE ROHS Certificate FY014 12 or 24 DC for Bedroom FurnitureUS$ 27 - 42MOQ: 100 Units -
CE&ROHS ISO9001 Certificates FY014 12V/24V DC Linear Actuator Motor Mechanisms PartsUS$ 48 - 59MOQ: 100 Pieces
-
Actuator Linear for Machine FY014 24V DC Actuator Mechanisms PartsUS$ 27 - 42MOQ: 100 Pieces
-
New Product Electric Actuator FY014 for TV LiftUS$ 27 - 42MOQ: 10 Units
-
FY014 Accident Chair Motor Linear ActuatorsUS$ 27 - 42MOQ: 50 Units
DC electric Linear Actuator for furniture
Applications : wheelchairs, patient-lifters, working table recliners , handicap equipment, ergonomic furniture , electric sofa , geriatric chair and pedestals furniture .
Specifications:
| Name | Linear Actuator |
| Mode | FY014 |
| Input Voltage | 12 or 24V DC |
| Max Load Capacity | 4000N(4mm/s) |
| Max Speed | 35mm/s |
| Standard Stroke | 100~500mm (Option) |
| Min Install Dimension | Stroke +155mm (Option) |
| Limit Switches | Inner |
| Type of duty | S2-10min |
| Operation Temperature | -26°C~65°C |
| Noise | <50db (full load) |
| Protection Class | IP20 |
| Certification | CE/EMC+LVD |
| Usage | Electric sofa ,Medical field |
Description :
1) Thrust up to 4000N
2) 12V / 24V DC input voltage
3) Min Installation Dimension : S + 155mm
4) Standard protection class, IP20
5) High-strength plastic housing protecting motor and gears
6) Black plastic parts and anodized aluminium profile
7) Noise level, 48 dB, actuator not loaded.
8) Elegant and compact design with small installation dimensions
9) Colour, black plastic parts and natural anodiz ed Aluminium profile.
10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use
