Help CenterFY014 Track Actuator for Personal Care Chair
Related Products
-
Ball Screw Linear Actuator Electric Linear Actuator FY014US$ 27 - 42MOQ: 50 Pieces -
CE&ROHS ISO9001 FY014 12v or 24v DC for Oficce Chairs LinearUS$ 27 - 42MOQ: 10 Units
-
CE ROHS ISO9001 FY014 12v or 24v DC for Multi Purpose Furniture LinearUS$ 27 - 42MOQ: 100 Units
-
FY014D 12v/24v DC Electronic Equipment Linear ActuatorUS$ 27 - 32MOQ: 10 Units
-
FY014D Asynchronous Motors for Zero Gracity Recliner ChairUS$ 27 - 42MOQ: 50 Units
DC electric Linear Actuator for furniture
Applications : wheelchairs, patient-lifters, working table recliners , handicap equipment, ergonomic furniture , electric sofa , geriatric chair and pedestals furniture .

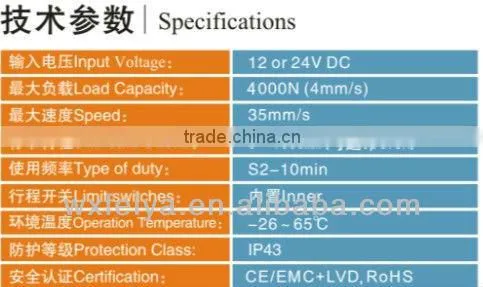

Specifications:
| Name | Linear Actuator |
| Mode | FY014 |
| Input Voltage | 12 or 24V DC |
| Max Load Capacity | 4000N(4mm/s) |
| Max Speed | 35mm/s |
| Standard Stroke | 100~500mm (Option) |
| Min Install Dimension | Stroke +155mm (Option) |
| Limit Switches | Inner |
| Type of duty | S2-10min |
| Operation Temperature | -26°C~65°C |
| Noise | <50db (full load) |
| Protection Class | IP20 |
| Certification | CE/EMC+LVD |
| Usage | Electric sofa ,Medical field |
Description :
1) Thrust up to 4000N
2) 12V / 24V DC input voltage
3) Min Installation Dimension : S + 155mm
4) Standard protection class, IP20
5) High-strength plastic housing protecting motor and gears
6) Black plastic parts and anodized aluminium profile
7) Noise level, 48 dB, actuator not loaded.
8) Elegant and compact design with small installation dimensions
9) Colour, black plastic parts and natural anodiz ed Aluminium profile.
10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use

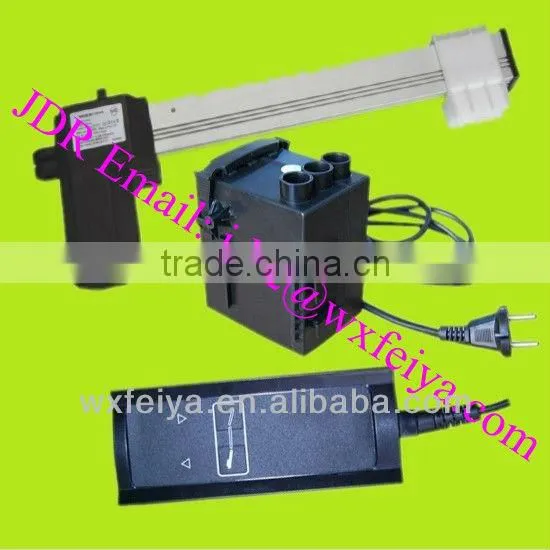

picture for products

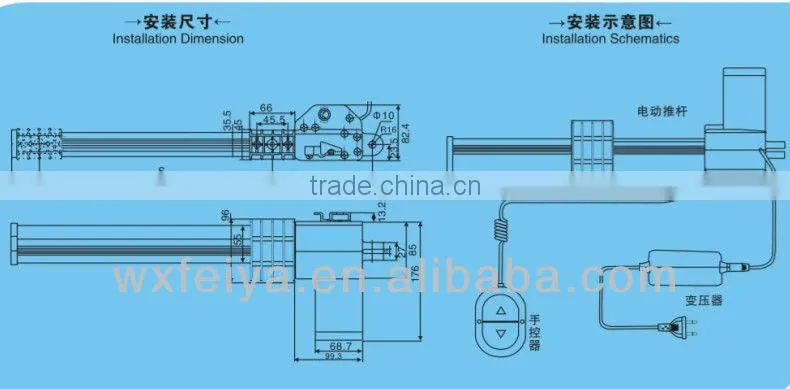

picture for installation and drawing

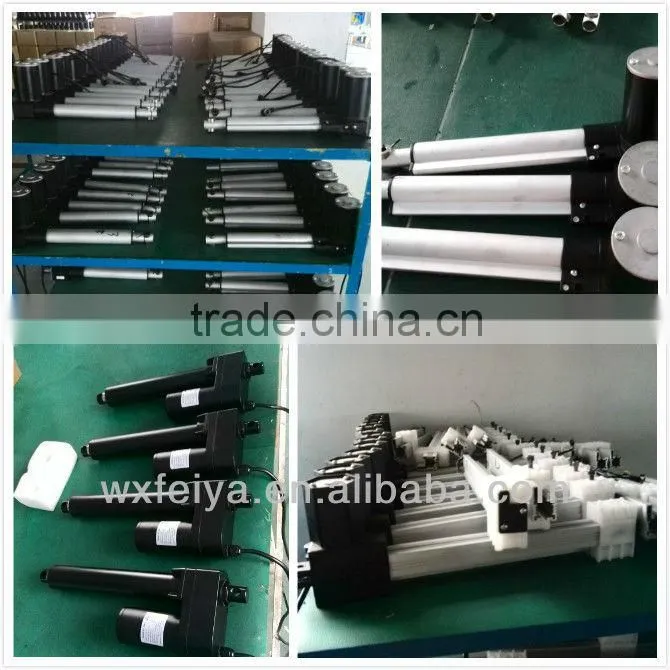

pictures for parts of linear actuators and factory product line
