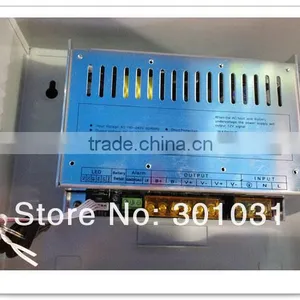

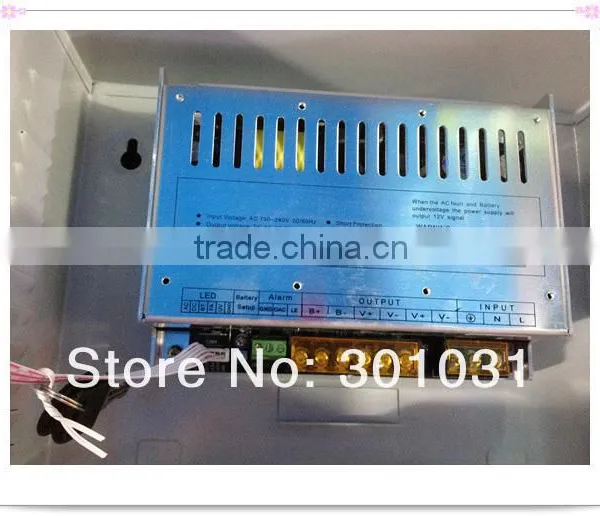

power supply 12v 10a for door and access control PY-UPS12V10A

Specifications

1. 12v power supply
2. with Regulatory function with delay,
3. power supply 12v 10a

Power supply 12v 10a  for door and access control PY-UPS12V10A





Feature:



Power protection—Output over-voltage protection, over-current protection, short circuit protection

Battery over-charging protection, over-discharging protection, anode & cathode wrong connect protection

AC failure alarm, Battery low voltage alarm



Technical Parameter:



Input: 190-240V AC  @ 50-60Hz



Output voltage: 12V±15% DC





Output Current: 10Amp



Over-current Protection: 11A±5%



Ripple & Noise: ≤100mV



Efficiency ≥85%



Charge Voltage: 13.5V



Charge Current (Max.): 1Amp



Battery Under-voltage Protection: 10V



Enclosure Dimensions: 285*285*125mm



Weight: 4kg





Package: 1x PY-UPS12V10A uninterruptible power supply

(Please kindly note that the power supply not include backup battery)
