Home > Products > FY014 Furniture Linear Actuator > High quality FY014D 12v 24v DC motor electronic equipment linear actuator

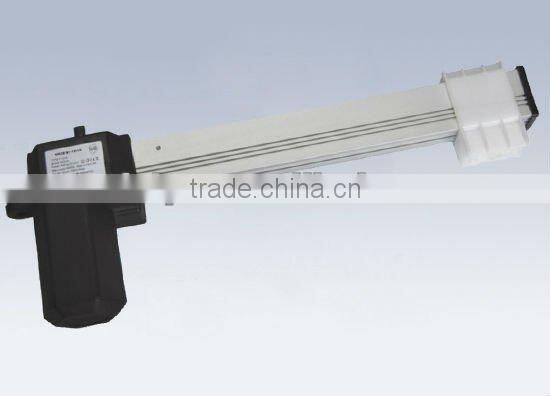

High quality FY014D 12v 24v DC motor electronic equipment linear actuator
- 14000 Unit / Units per Month
- Shanghai or HK
- T/T Credit Card
- Office Furniture Spare Parts/Office Chair backrest part B813
- Office Chair Components /office chair accessories/ chair parts B815 Quality Choice
- 2014 new style CY02 plastic school chairs for sale
- 2015 new style CY02 ergonomic childrens plastic school chairs for sale
- Revolving Chair Spare Parts / mesh Chair backrest part B813 Quality Choice
- 2015 new high back office chair seat back B816 in foshan
Product Details
Material: | Metal | Metal Type: | Aluminum | Use: | Sofa |
Place of Origin: | Jiangsu, China | Brand Name: | JDR | Model Number: | FY014D |
Product Description
Specifications
Input Voltage: 12v or 24v DC
Load Capacity: 4000N
Max Speed: 35mm/s
Stroke: 0~1000mm(option)
Type of duty: S2-10min
Limit switches: inner
Operation Temperature: -26--65 centigrade
Protection Class: IP20
Certification: CE/EMC+LVD,RoHS
type: furniture part
material: metal and plactic
Use: chair
place of origin: Jiangsu, China(mainland)
function: Driving
Shape: Linear
Power: DC
DC Linear Actuator
Technical specifications: Stroke: 0-800mm Min. Installation dimension: stroke+175mm Load capacity: 750N,1500N,4000N,6000N Free load speed:30,18,11,8,4mm/s Input voltage: 24V DC / 12V DC Limit switch: inner Protection grade: IP20 Type of duty: S2-10min Operation temperature: -26~65 centigrade
Features: Material: Aluminum and plastic Color: black Warranty: two years Certification: CE/EMC+LVD
High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.
Item: Electric Linear Actuator, Electric Linear Motor Series: FY series Item Number:FY011, FY012, FY013 FY04, FY015, FY016, FY017 Delivery time: 3~7 days for samples
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator: Max. Thrust: 4000N, 6000N, 8000N Voltage: 24VDC or 12VDC, Motor Drive Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement. Duty cycle:10% Ambient temperature -26°C to +65°C Standard protection class: IP 20 Built-in integral limit switch, not adjustable after leaving factory Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee We provide 1 year warranty for JDR Linear Actuators. We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence. Maintenance service No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us We highly appreciate your any enquiry by email, by fax or by Instant message. We will reply your email or fax within 18 hours. Please feel free to call us at any time if there is any question.
Transportation All available shipping ways could be applied, by courier, by air or by sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
|

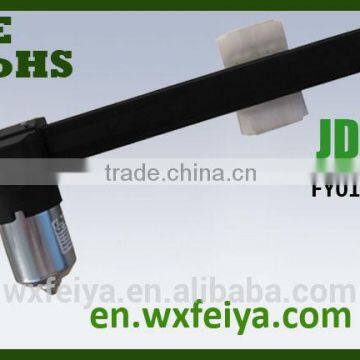

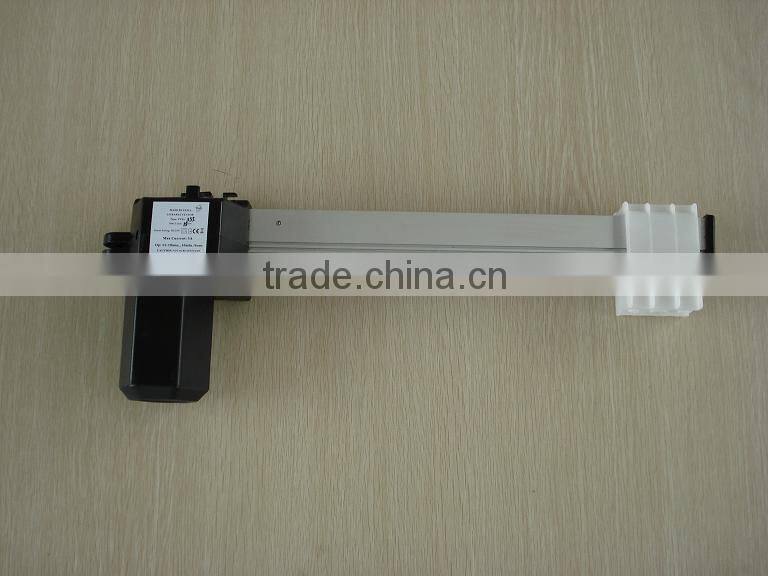

Product picture
picture for factory
Name:Claudia Wang
Telephone:0086-18651580126
Email: Jdr2 at wxfeiya dot com
Skype: Claudia Wang11
Contact Us
- Wuxi JDR Automation Equipment Co., Ltd.
- Contact nameJony Zhu
- Phone86-0510-80220927
- AddressNo. 2# Yanxing Road, Yanqiao Industrial Park, Wuxi, Jiangsu Province, China Wuxi,Jiangsu
