High quality split pressurized flat plate solar water heater projects
Specifications

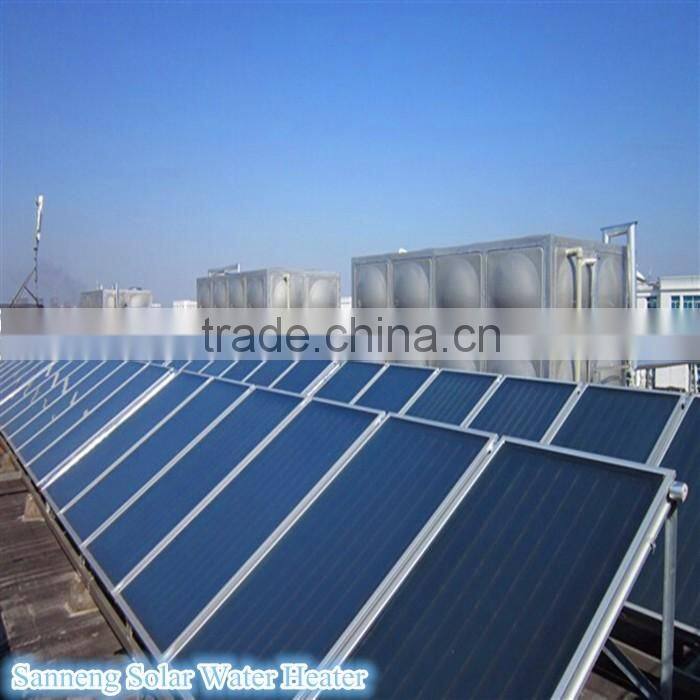

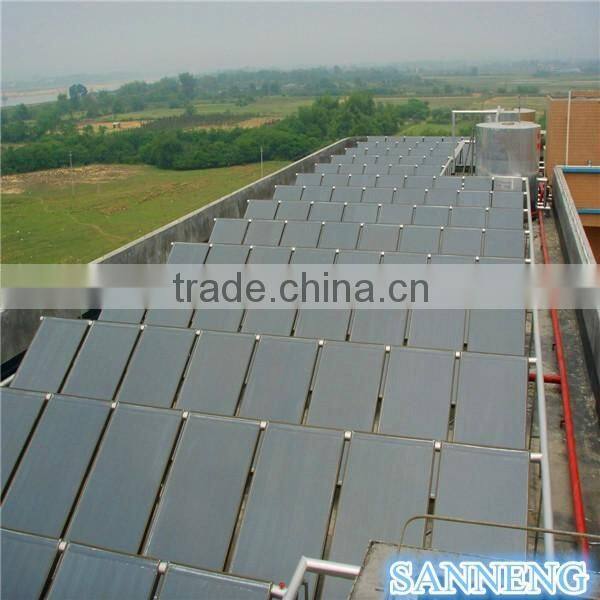

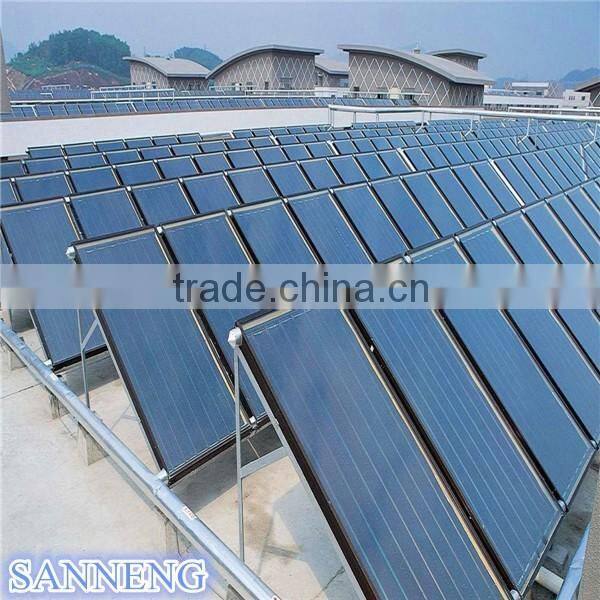

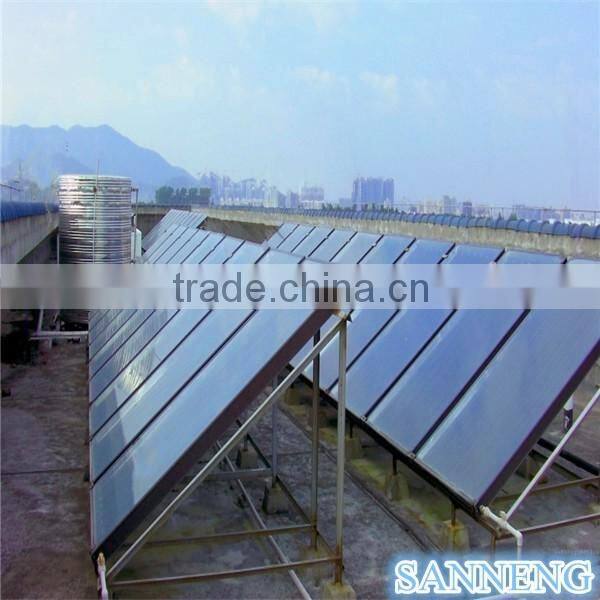

Flat Panel Solar Water Heater Projects
1.Supply hot water for factory, hotel, school
2.Can used in large scale
Specification of Flat Panel Solar Collector
1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium / black chrome coating / oxidation coating / titanium-coating have very high absorption rate to ensure the high efficiency.
3) Whole-plate ultrasonic welding technology makes the flat plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
Outer tank |
Material |
Colorful steel with thickness of 0.35-0.5mm |
Diameter |
Ø460mm |
|
Inner tank |
Material |
0.4-1.2mm thick 304-2B stainless steel |
Diameter |
Ø360mm |
|
|
Flat collector |
Dimension of solar collector(L*W*T) |
2000mm*1000mm*80mm |
Copper Riser Tubes Spec. & Qty |
Φ10 * δ0.6 * 1886mm, 7pcs copper |
|
Copper Header Tubes Spec. & Qty |
Φ22 * δ0.6 * 1060mm, 2pcs copper |
|
Copper Absorber Fin Spec. & Qty |
140 * δ0.3mm,7pcs, all cooper fin |
|
Cover |
Low iron textured tempered glass with thickness of 4mm |
|
Cover Transmission |
>91.7% |
|
Absorptivity |
95%±2% |
|
Gross Area |
2.03m² |
|
Aperture Area |
1.82m² |
|
Insulation |
30mm fiber glass |
|
Sealing Gasket |
EPDM(Ethylene-Propylene-Diene Monomer) |
|
Back Plate |
galvanized steel with thickness 0.3mm |
|
Frame |
silver or black aluminum alloy steel with thickness 1.5mm |
|
|
Support Bracket |
Material |
Galvanized steel |
Thickness |
1.5mm |
|
Deg |
25°-45° (It can be changed as local latitude) |
|
Screw |
SUS202 stainless steel 8mm diameter |
|
|
Insulation |
Material |
High density PU foaming imported from German |
Thickness |
50-55mm |
|
Density |
≥40kg/m3 |
|
Working station |
Pump/Intelligent controller/ pressure gauge/expansion tank |
|
Max operation temperature |
200°C |
|
Max pressure |
1400Kpa |
|
Max working temperature |
120°C |
|
Specail features
1. Collectors are separated from the storage tank. The tank can be put anywhere of the house,so the whole system is harmonious with the building
2. Absorbing heat quickly
3. No worry about being frozen because there is no water running inside the tubes when working
4. Completely automatic operation
5. It can withstand pressure of tap water when it works
6. Without incrusting, long usage life
7. Multifunction: Bathing, washing, domestic heating
8. Beaytiful appearance
Remarks
1.Leadtime: 715 working days after receiving payment.
2.Payment Term: T/T, L/C, Western Union.
3.Warranty:5Years for the full system,15Years for the vacuum tube,and 1year for accessories.
4.Trade Term: FOB, CFR and CIF.
we can customize according to customer's requirement
Contact: Mr. sunny Mobile: (00)86-18357309575 Skype:sunny-yu77
