Home > Products > FY014 Furniture Linear Actuator > Linear Actuator 400 mm 35 Mm/sn 700-1000 N 24 v

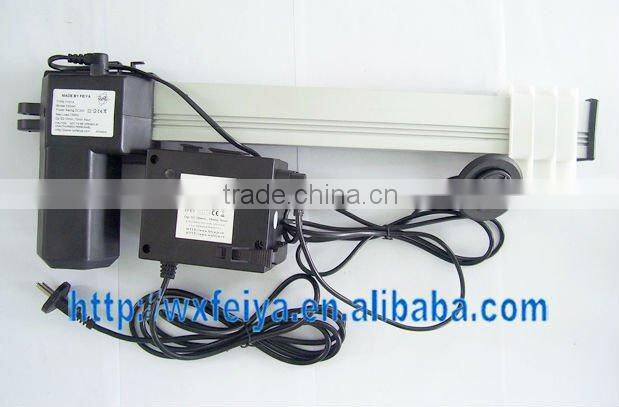

Linear Actuator 400 mm 35 Mm/sn 700-1000 N 24 v
- Shanghai or Ningbo China
You May Like
-
Autochair Lite Folds Actuator Linear Motor
-
Lift Chair Motor/lift Recliner Chair Actuator/rise Recliner Chair Linear Actuator/electric Lift Chair Motor Quality Choice
-
Furniture Lift Mechanism Electric Linear Actuator
-
Permanent Magnet Construction And Brush Commutation 12V China Linear Actuator For Recliner Chair Parts
-
24VDC Lift Linear Actutaor
-
LINEAR MOTOR LINERA ACTUATOR
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDR | |
| Model Number | FY014 |
Product Description
DC electric Linear Actuator for furniture
Applications : wheelchairs, patient-lifters, working table recliners , handicap equipment, ergonomic furniture , electric sofa , geriatric chair and pedestals furniture .
Specifications:
| Name | Linear Actuator |
| Mode | FY014 |
| Input Voltage | 12 or 24V DC |
| Max Load Capacity | 4000N(4mm/s) |
| Max Speed | 35mm/s |
| Standard Stroke | 100~500mm (Option) |
| Min Install Dimension | Stroke +155mm (Option) |
| Limit Switches | Inner |
| Type of duty | S2-10min |
| Operation Temperature | -26°C~65°C |
| Noise | <50db (full load) |
| Protection Class | IP43 |
| Certification | CE/EMC+LVD |
| Usage | Electric sofa ,Medical field |
Description :
1) Thrust up to 4000N
2) 12V / 24V DC input voltage
3) Min Installation Dimension : S + 155mm
4) Standard protection class, IP43
5) High-strength plastic housing protecting motor and gears
6) Black plastic parts and anodized aluminium profile
7) Noise level, 48 dB, actuator not loaded.
8) Elegant and compact design with small installation dimensions
9) Colour, black plastic parts and natural anodiz ed Aluminium profile.
10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use
High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.
Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series

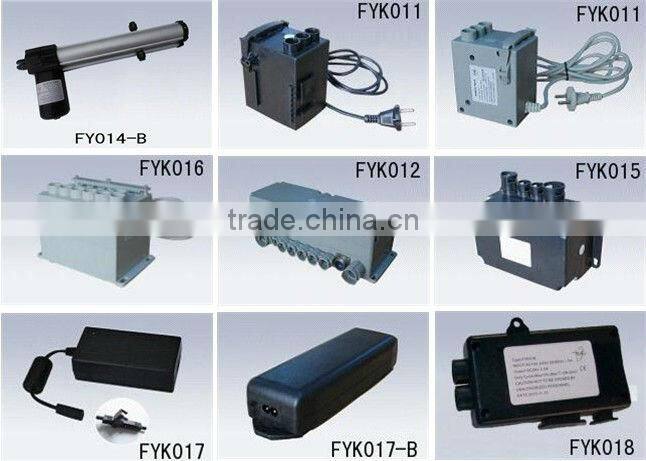

Item Number:FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
