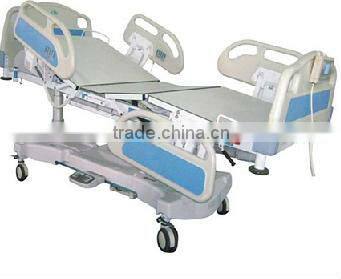

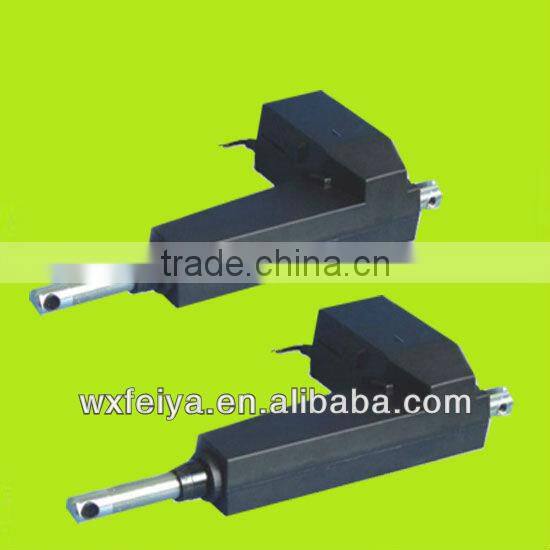

Linear Actuator for Nursing bed ,Salon bed

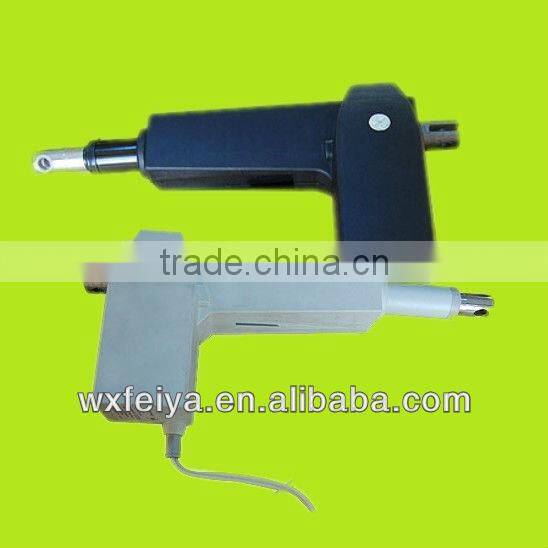

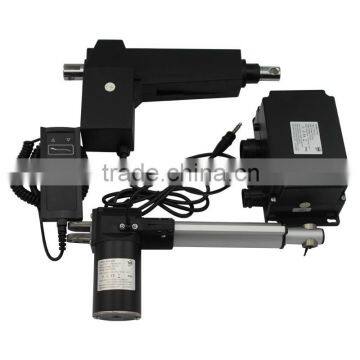

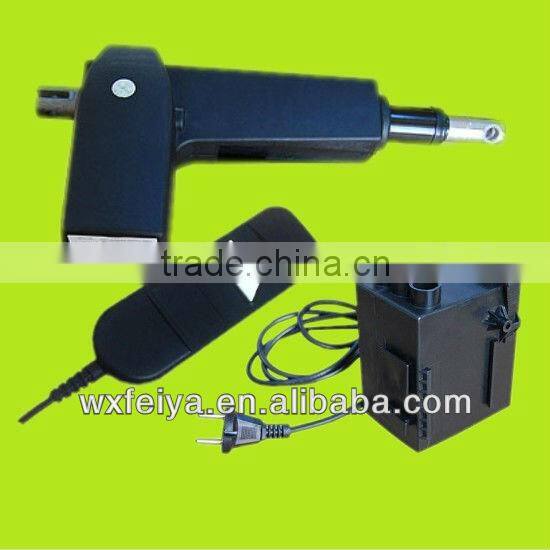

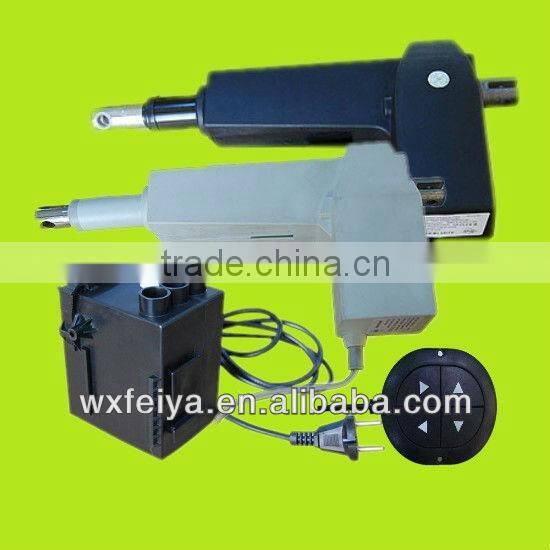

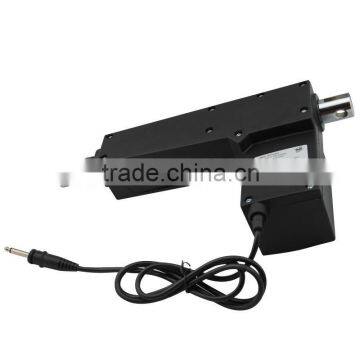

FY013 series of linear actuators have the same basic performance as FY012 , with higher load capacity which make it the best choice to be used in medical and industrial area .
Features :
| 1) Chrome Plated Piston Rod eye with slot |
| 2) Scratch and wear-resistant powder |
| 3) Stainless Steel Back Fixture |
| 4) Strong wear and corrosion resistant Stainless Steel Inner Rod |
| 5) High Strength Plastic Housing and Gears |
| 6) Elegant and compact design with small installation size |
Specifications:
| 1)Input voltage | DC 24V |
| 2)Load capacity | 8000N/6000N |
| 3) Speed | 3mm/s (8000N), 4mm/s (6000N) |
| 4) Standard stroke | 100, 150, 200, 250, 300, 400 (option) |
| 5) Min. installation dimension | S+175mm (option) |
| 6) Limit switches | Built-in |
| 7) Type of duty | S2-10 min |
| 8) Operation temperature | -26~65°c |
| 9) Protection Class | IP54 |
| 10)Certification | CE/EMC+LCD |
Name: |
Linear Actuator |
Model: |
FY013 |
Usage: |
Electric Nursing Bed, Electric Hospital Bed, Personal Care Bed, other Application use |
Input Voltage: |
24v DC |
Load Capacity: |
6000N, 8000N |
Free Load Speed: |
4mm/s, 3mm/s |
Standard Stroke: |
50 mm --- 1000mm (Optional) |
Installation Dimension: |
S + 175mm |
Type of Duty: |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
Limit Switch: |
Builtin / Inner (can not be adjust after left factory) |
Work Temp.: |
-26 to 65 centigrade |
Protection Grade: |
IP54 |
Certificate: |
CE / EMC + LVD, RoHS |

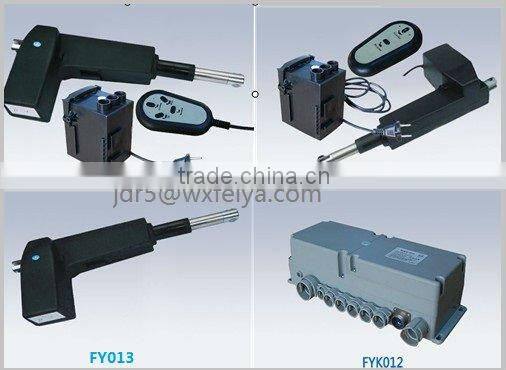

Control Box Used: |
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
|
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
|
Control 4 Linear Actuators: FYK012-4, FYK016-4 |
|
Control 5 Linear Actuators: FYK012-5, FYK016-5 |
|
Control 6 Linear Actuators: FYK016-6 |
|
Handset Used: |
All FYH Series Handset, Pls contact us for detail pictures. |
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.

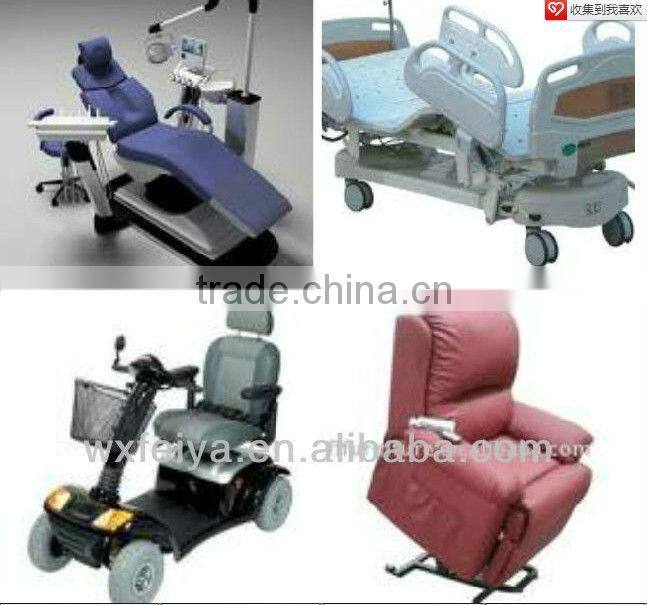

Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
