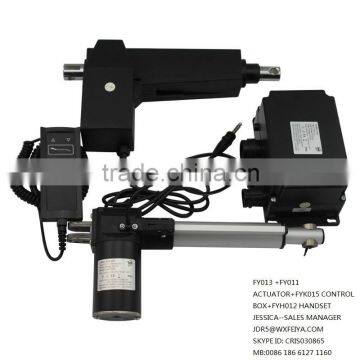

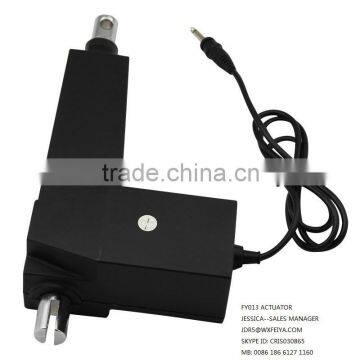

Electric Linear Actuator FY013 for Hospital Bed
FY013 Series Linear Actuator have the same basic performance as FY012 , with higher load
capability which make it the best choice to use in medical and industrial area . Building in limit switch protection .
Features :
| 1) Chrome Plated Piston Rod eye with or without slot |
| 2) Scratch and wear-resistant powder |
| 3) Stainless Steel Back Fixture |
| 4) Strong wear and corrosion resistant Stainless Steel Inner Rod |
5) High Strength Plastic Housing and Gears |
6) Elegant and compact design with small installation size |
Specifications
1) 24 V DC motor |
2) Thrust up to 8000 N in push and up to 5000 N in pull |
3) Electric chromate steel piston rod eye with slot |
4) High-strength plastic housing protects motor and gears |
5) Elegant and compact design with small installation dimensions |
6) Standard protection class, IP54 |
7) Built-in limit switches (not adjustable) |
8) Scratch and wear-resistant powder painting on outer tube |
9) steel back fixture |
10) Strong wear and corrosion resistant stainless steel inner tube |
11) Noise level 48 dB (A), actuator not loaded. |
12) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use |
13) Ambient temperature, -26°C to +65°C |
| 14)Standard stroke : 100 mm to 500 mm |
High quality of electric linear actuator to worldwide customers. We are professional manufacturer in linear actuator.
Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series
Item Number:FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
