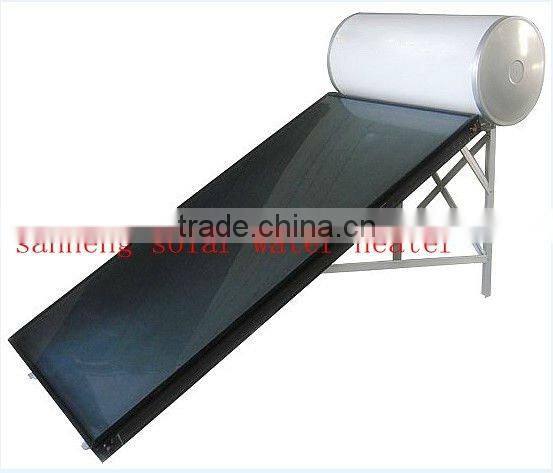

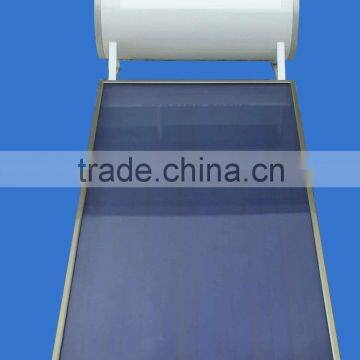

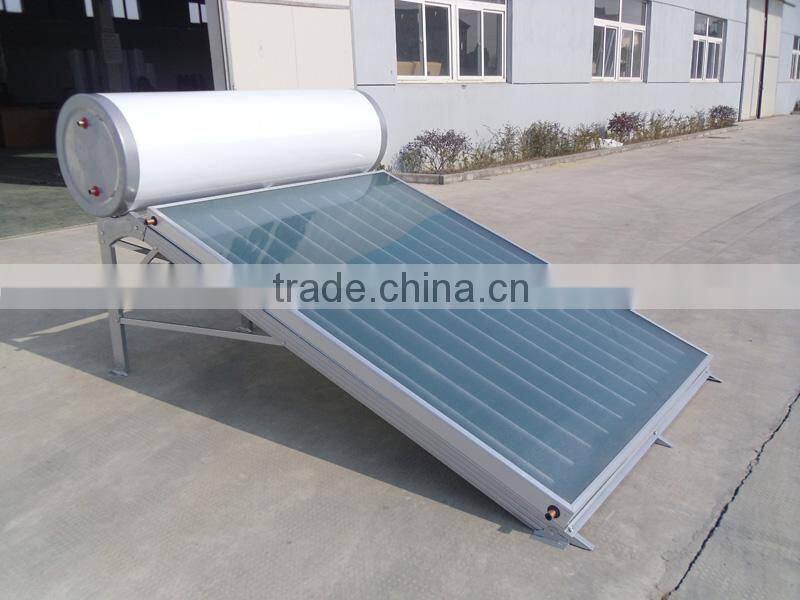

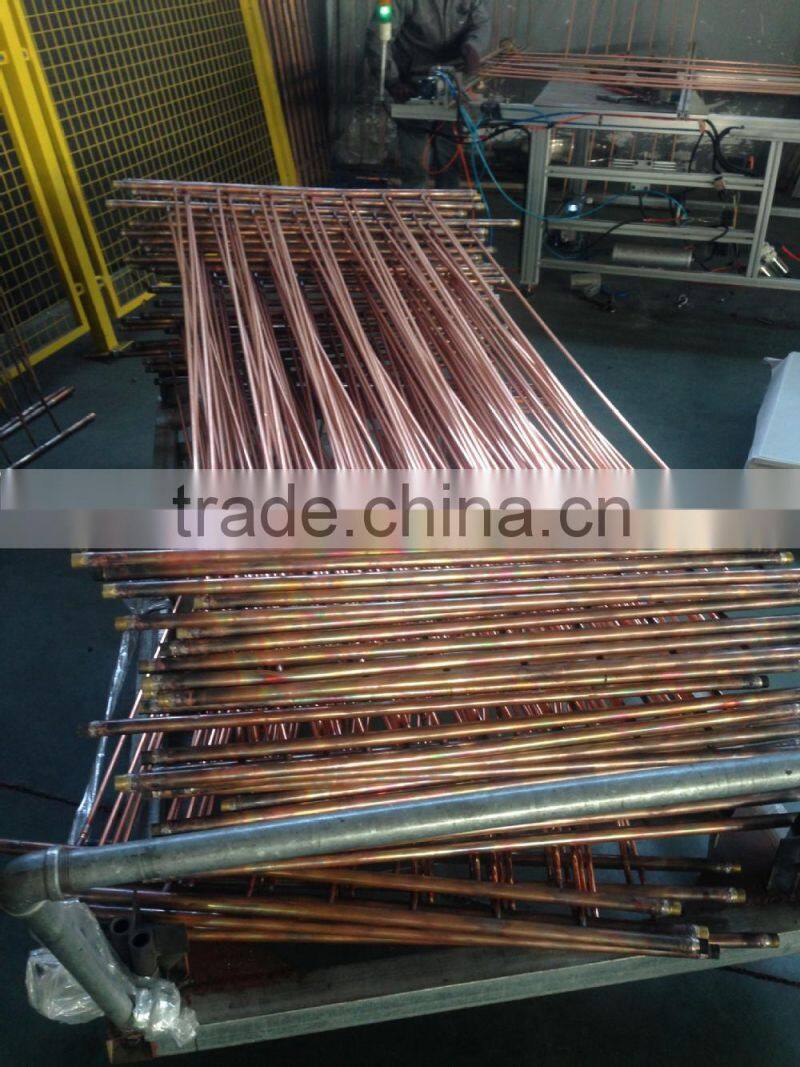

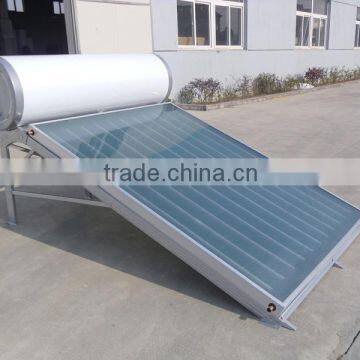

Help CenterFlat Plate Collector Compact Pressurized Solar Water Heater,solar Geyser
Related Products
-
2015 the High Efficiency and High Quality Flat Panel Solar Water HeaterUS$ 120 - 320MOQ: 10 Sets -
The Latest and High Quality Flat Panel Solar Water HeaterUS$ 50 - 360MOQ: 1 Set
-
The Lowest Price Flat Panel Solar Water HeaterUS$ 170 - 280MOQ: 10 Sets
-
The Latest and High Quality Thermodynamic Solar Panel Water HeaterUS$ 160 - 480MOQ: 5 Sets
-
Made in China High Quality Compact Pressurized Flat Panel Solar Hot Water HeaterUS$ 295 - 750MOQ: 1 Set

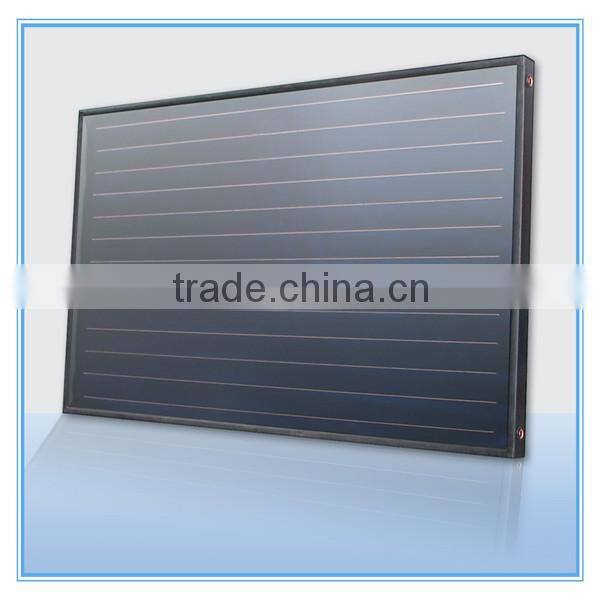

flat panel solar water heater
features:
1)5 years product warranty for all system
2)10 years warranty on 90 % of the minimum power
3)25 years warranty on 80 % of the minimum power

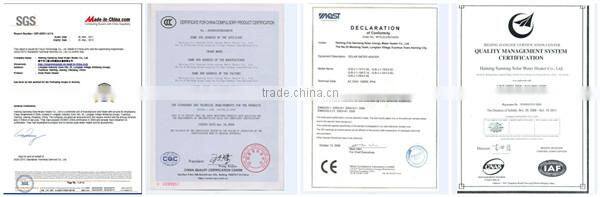

4)CE TUV UL IEC 61215 / 61730 and CE certification
technical data | |||
Type |
SA260-72 |
SA270-72 |
SA280-72 |
Maximum power (Wp) |
260Wp |
270Wp |
280Wp |
Maximum power voltage (V) |
36.00 |
36.00 |
36.00 |
Maximum power current (A) |
7.23 |
7.50 |
7.78 |
Open circuit voltage (V) |
43.20 |
43.20 |
43.20 |
Short circuit current (A) |
7.95 |
8.25 |
8.55 |
Cell Efficiency (%) |
15.50% |
16.00% |
16.50% |
FF (%) |
≥74% |
||
Maximum system voltage (V) |
1000V |
||
Temperature Range |
-40°C to +85°C |
||
Power tolerance (%) |
±3% |
||
Standard Test Conditions |
1000W/m2, AM1.5 ,25’C |
||
Mechanical Characteristics | |||
Solar cell |
Poly |
Poly |
Poly |
Number of cells (Pcs) |
72(6*12) |
||
Size of module (mm) |
1930*980*46mm |
||
Weight per piece (kg) |
22.5 |
||
Front Glass |
3.2 mm tempered glass |
||
Surface Maximum Load Capacity |
60m/s(200kg/sq.m) |
||
Allowable Hail Load |
steel ball fall down from 1m height |
||
Frame |
Anodized aluminium alloy |
||
Junction Box Type |
IP65 rated |
||
Connectors |
MC Plug Type IV connectors |
||
Cables |
4.0mm2, 900mm |
||
Temperature coefficients | |||
Nominal Operating Cell Temperature |
45±2ºC |
||
Temperature coefficients of Voc (%) |
β -2.2mV/°C |
||
Temperature coefficients of Pm (%) |
γ -0.55%/°C |
||
Temperature coefficients of Im (%) |
α 0.03%/°C |
||
Temperature coefficients of Vm (%) |
β -2.2mV/°C |
||
Product showing:
1.MOQ:1 set
2. FOB Price:from USD 198 to USD 856
3. Loading port:Shanghai/Ningbo
4. Payment terms:T/T or L/C
5.Supply ability:80000 sets per year
6. Delivery time:Within 10 days after recieve your deposit.

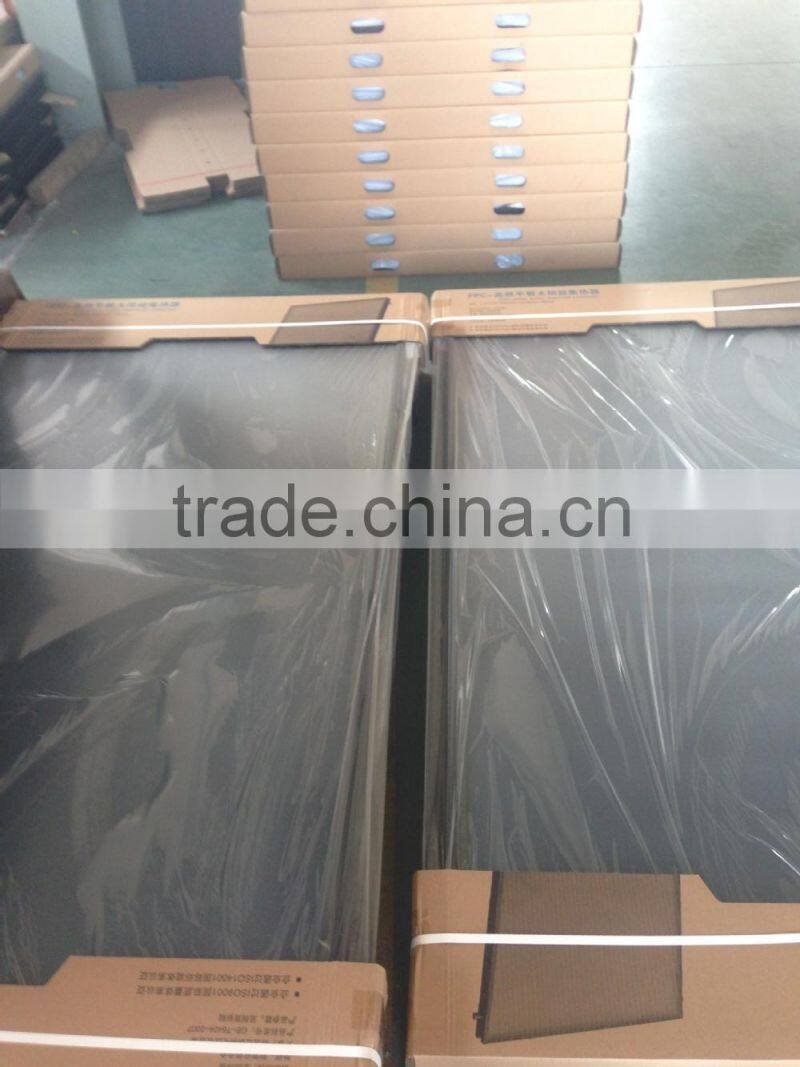

7.Shipping packing: 1)Standard export cartons for container with foaming.
2)Standard export wooden case for sample
