FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator

FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator thumbnail-1
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator thumbnail-2
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator thumbnail-3
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator thumbnail-4
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator thumbnail-5
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator thumbnail-6
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator photo-1
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator photo-2
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator photo-3
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator photo-4
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator photo-5
FY013 dc 12v or 24v Motor Medical Care Bed Linear Actuator photo-6
US$ 32 - 45 MOQ: 100 Units
Key Specifications
Get Latest Price
Material:
Metal
Metal Type:
Stainless Steel
Use:
Chair
Contact Supplier Request Quote Chat Now
Wuxi JDR Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Metal
Metal Type Stainless Steel
Use Chair
Place of Origin Jiangsu, China
Brand Name JDR
Model Number FY013

   Dc 12v/24v motor's Specifications





Input Voltage: 12v/24v  DC



Load Capacity: 8000N/6000N



Max Speed: 3mm/s(8000N)  4mm/s(6000N)



Stroke: 0~1000mm(option)



Type of duty: S2-10min



Limit switches: inner



Operation Temperature: -26--65 centigrade



Protection Class: IP54



Certification: CE/EMC+LVD,RoHS



type: furniture part



material: metal and plastic



Use: chair,massage chair,dental chair,sofa,medical care bed.



place of origin: Jiangsu, China(mainland)



function: Driving



Shape: Linear



Power: DC

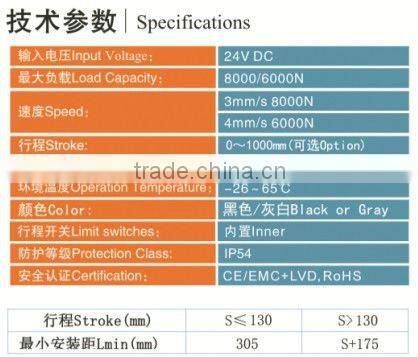

  Dc 24v motor linear actuators's specifications



FY013 dc 12v or 24v motor medical care bed linear actuator

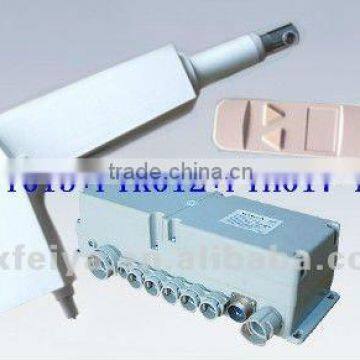

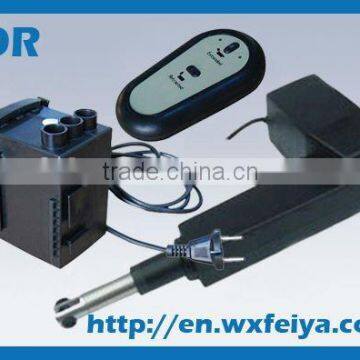

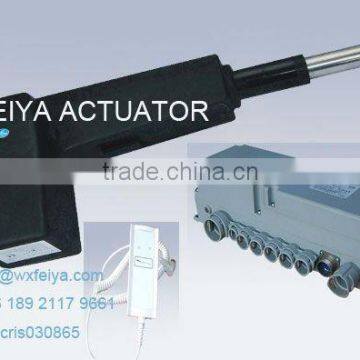

Dc 24v motor's Product picture



FY013 dc 12v or 24v motor medical care bed linear actuator



 FY013 dc 12v or 24v motor medical care bed linear actuator



Dc 24v motor linear actuator's installation

 FY013 dc 12v or 24v motor medical care bed linear actuator



Dc 24v motor linear actuator's specifications







FY013 dc 12v or 24v motor medical care bed linear actuator

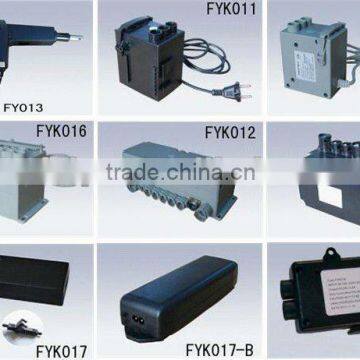

 More products





FY013 dc 12v or 24v motor medical care bed linear actuatorFY013 dc 12v or 24v motor medical care bed linear actuatorFY013 dc 12v or 24v motor medical care bed linear actuator





 Applying pictures of dc 24v motor linear actuator





Images of factory



FY013 dc 12v or 24v motor medical care bed linear actuator
