NO Eletric Bolt lock With Mort Lock 2000Kg Holding Force with Cylinder key PY-EL14



Applications:Heavy Door, Standby 150mA Metal Door, Wood Door..

Features:

* Low Temperature, safe & Durable



* Low Power, Environmental Protection



* Special photoelectricity control,three steps current application



* Long Life  with 500000 Operations



* MOV Provides Reverse Current Protection



* Superior Strength Aluminium Alloy,Solid Stain-less Steel Bolt



* Autolock Time Delay: 0,3,6,9sec.



* Door statue signal output contact(NC.COM)



* Double protection for loading current



* Auto-relock if no Action within 5 secs.



* Photoelectricity Control,Low Temperature,



A:The  Low Current is Changed immediately;



B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.



C:The Photoelectricity Control Technology, prevent the machanical defect.





Technical Specifications:

Fail Secure: Unlocked when energized



Face Plate: 260Lx30WX48H(mm)



Strike: 100Lx25Wx3H(mm)



Bolt: 16mmDIA,stainless steel 16mm throw

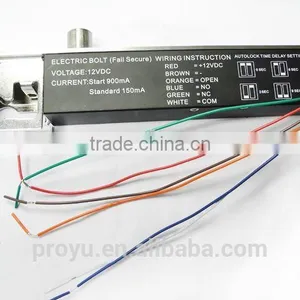

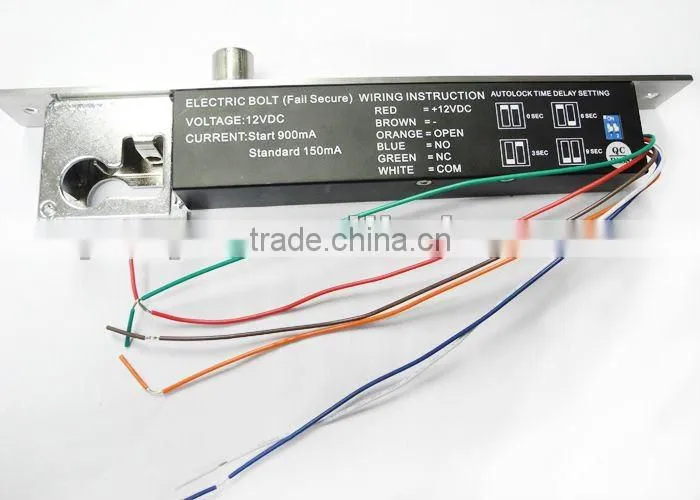

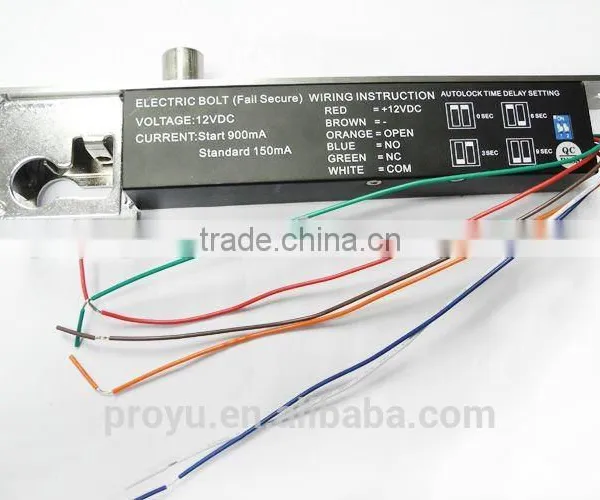

Voltage: DC12V



Start Current: 950mA



Standby Current: 150mA



Solid Bolt: polishing housing, 2000Kg Holding Force



Suitable For: Wooden Door,Metal Door



Autolock Time Delay: 0,3,6,9sec.



Signal Output: Lock status Output,NO/NC/COM



Surface Temp: Low Temperature



Induction Distance:8mm



Operating temp: -10~+55°C(14-131F)



Operating Humidity: 0~90%(non-condensing)



Special Designed: Tested to 500000 operations



Face place material:Stainless Steel



Weight: 1.436kg







Competitive Advantage:



High Quality, Quite competitive pricing, Fast Delivery! OEM & ODM are welcome!
