150 mm stroke electric motors

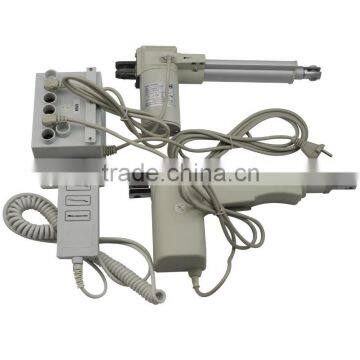

This combination consists of FY012 linear actuator ,FYK011 control box and FYH014 handset, it is very easy to install .
Applications : hospital and care beds,wheelchairs, patient-lifters,recliners, medical equipment, dental chairs ,electric sofa and traction beds.
Products specifications :
1) 12V/24VDC permanent magnet motor
2) Thrust up to 8000N in push , and up to 5000 N in pull
3) Elegant and compact design with small instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Plastci outer tube / Stainless inner tube
6) Electric chromate steel piston rod eye with slot
7) High-strength plastic housing protects motor and gears
8) Standard protection class : IP 54
9) Scratch and wear-resistant power painting
10) Noise level < 50 db
11) Warranty : Two years
12) Duty cycle : 10%, or 2 munutes continous working followed by 18 minutes not in use
Specifications of FY012 linear actuator: 150 mm stroke electric motors
| Name | Linear Actuator |
| Mode | FY012 |
| Input Voltage | 12V/24V DC |
| Max Load Capacity | 6000N |
| Max Speed | 4mm/s(6000N) 9mm/s(4000N) |
| Standard Stroke | 100,150,200,250,300,350,400(Option) |
| Min Install Dimension | Stroke +175mm (Option) |
| Limit Switches | Inner |
| Type of duty | S2-10min |
| Operation Temperature | -26°C~65°C |
| Noise | <50db (full load) |
| Protection Class | IP54 |
| Certification | CE/EMC+LVD |
| Usage | Electric sofa ,Medical field |
Specifications of FYK011 control box :
| Input Voltage | 110 or 220V AC |
| Output Voltage | 24V DC |
| Output Power | 50VA |
| Type of duty | 10%~50% |
| Overload Protection | |
| Can connect 1-3 linear actuator and 1 handset | |
