Double cylinder Mute integration brainwave lock support remote contro and smart card PY-EL16

Specifications

1. Support cards and remote control open the door
2.Compatible with all building intercom, and access control systems

Double cylinder Mute integration brainwave lock

Model: PY-EL16



Description:

This product is carrying on the advantages of two generations of products, combined with customer’s feedback. It support 1000 users cards,20 remote controls and extracellular signal-back(such as building intercom), also provides security alarm output (not closed alarm and tamper alarm)



Features:

1. With the card and remote control to in or out, support the EM or EM compatible card for long distance , high speed sensor, Inside and outside two-card reader.Support 315MHZ learning remote control.

2.The host can be conjured up an idea to achieve a lock assess control integration, and the double encrypted wireless keyborad.

3.Compatible with all building intercom, and access control systems lock signal.

4.With tamper alarm settings it will alarm when the door is not closed.

5.Look automatically after closed, with sound and lisht alert, No collision, no noise, green.

6.The integrated stuctural design helps for anti-disruptive, the cirsuit and mechanical design is reasonable, easy to install, convenience to oprate and it's durable



Technical Specification:

1.Input voltage:DC12V+20% Static state current<80ma action current <350mA

2.The radio frequency card opening response time less than 0.5seconds. the reading distance is less than 20mm

3.The remote control opening response time less than 0.3second, accessible distance more than 100M

4.Open the current less than280mA

5.Alarm output current is less than 1500mA,alarm accuracy rate is greater than or equal to 99.9%.

6.The working temperature-40°c-70°c temperature 95%

7.Sure immunity test:IEC801 standard

8.Noise immunity:IEC801 standard

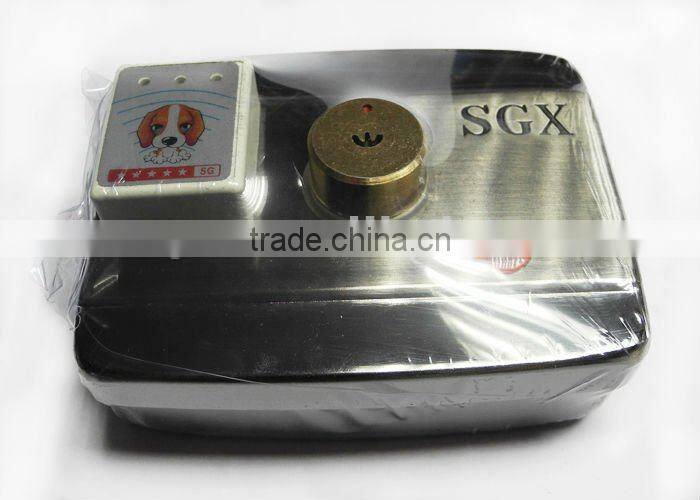

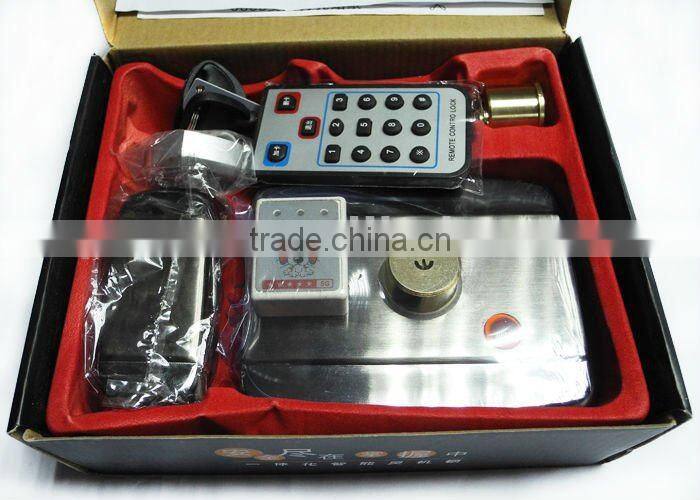

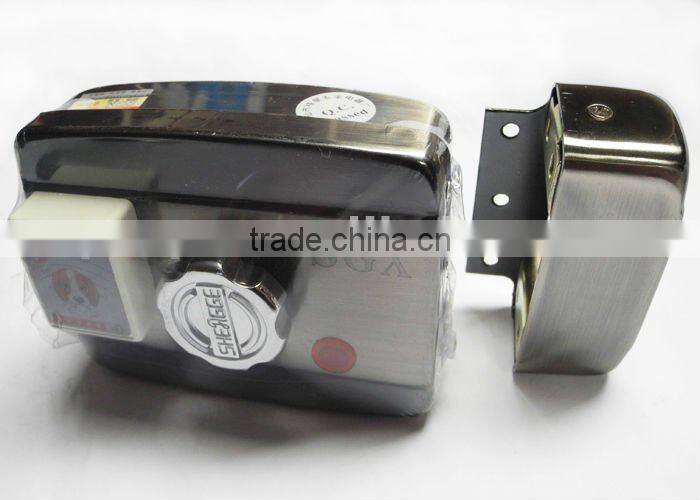

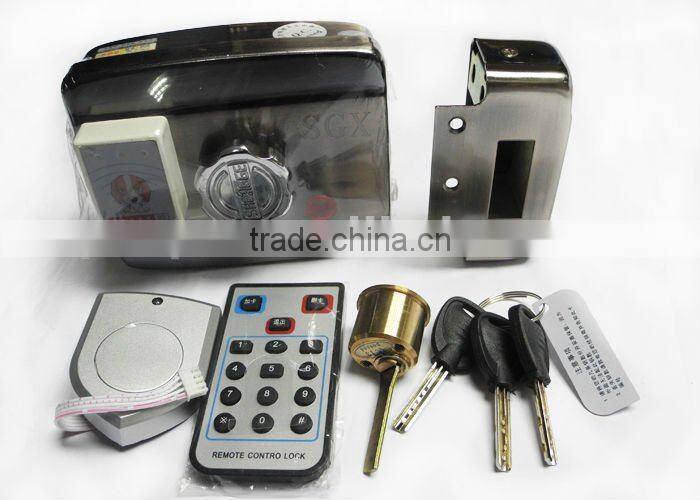

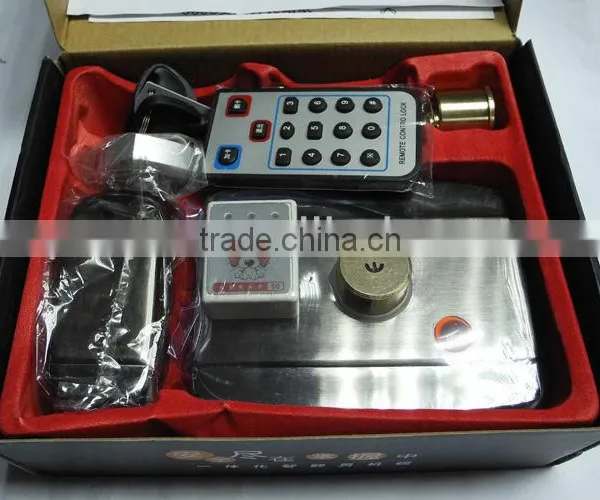

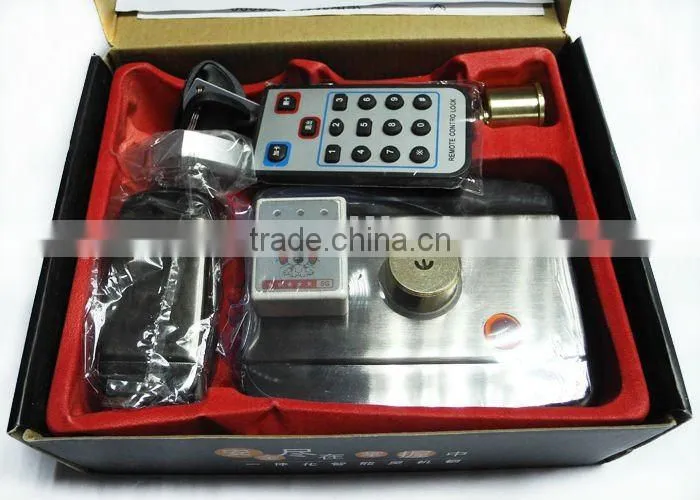

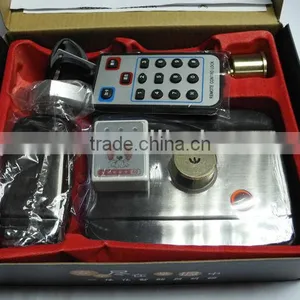

Product Photo:
