Lifts for Disabled/curverd Wheelchair Lift/disabled Lift
- QINGDAO
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Honty | |
| Model Number | HT | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 2.2kw | |
| Rated Loading Capacity | 300kg | Min. Lifting Height | 80mm | |
| Max. Lifting Height | 18m | Table Size | customized | |
| Overall Dimensions | customized | Weight | customized | |
| Certification | CE ISO | Warranty | 12 months apart from man made faults | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
lifts for disabled/curverd wheelchair lift/disabled lift
link on Youtube about our inclined wheelchair lift
/watch?v=ZgCGiTfQPhg (Copy and paste New window opens)

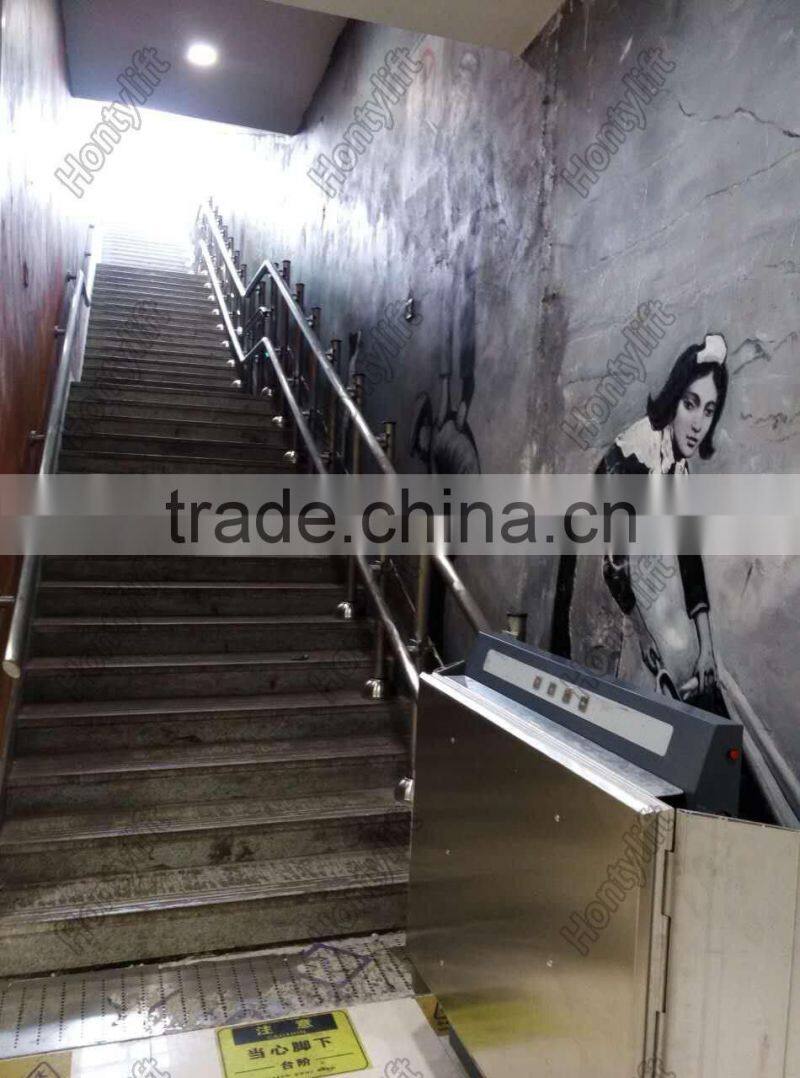

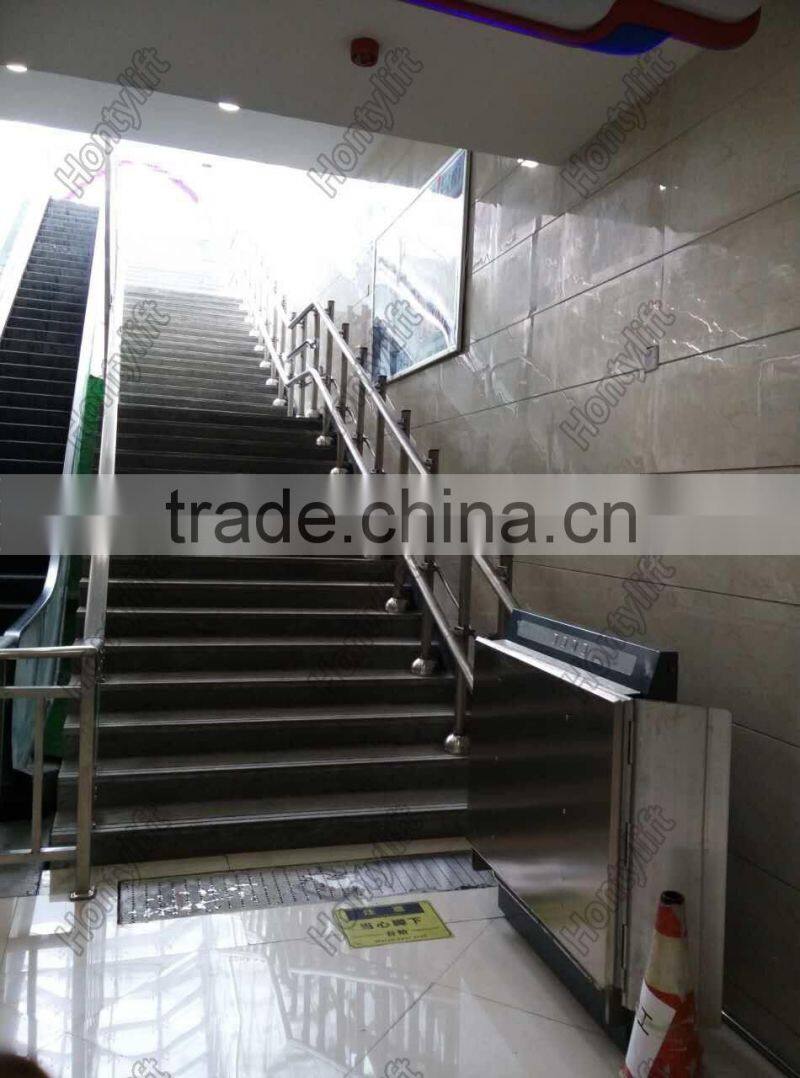

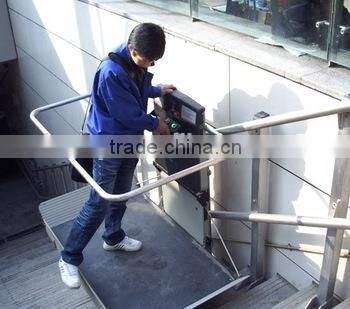

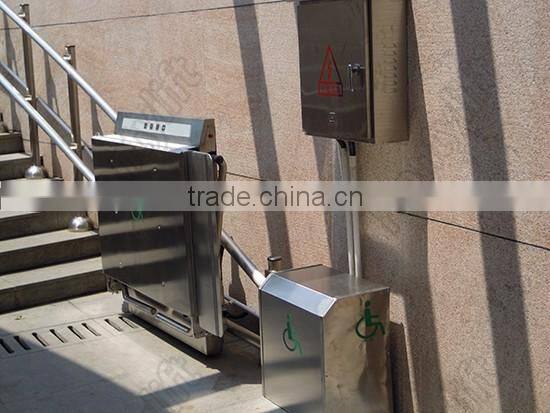

2.inclined platform lift introduction
Chair lift platform to run their direction points curved and straight two kinds.
Curve ball type with rope chain drive, do not rise and fall, but also to make the level of spiral turns and runs,
the scope more widely. The equipment for disabled people in wheelchairs up and down the stairs to provide
a great convenience, is now being widely used in residential home on the stairs and in public places.

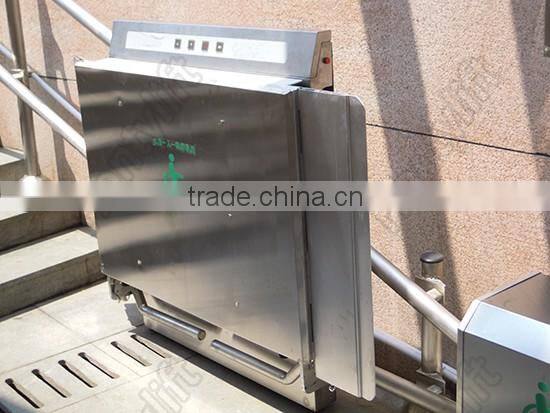

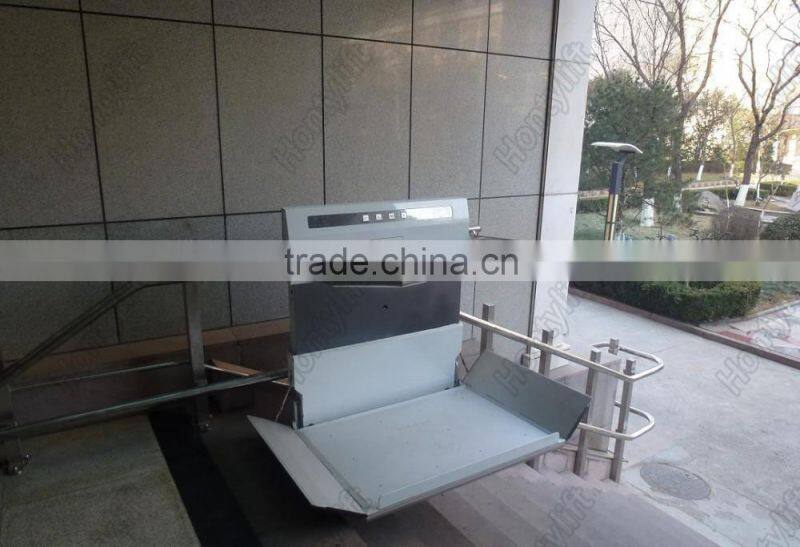

It is reasonably compact, lightweight folding platform can be folded up when not in use, saving enough
space for stairs and did not affect the passage of others.
Stair chair lift to help the elderly or those with reduced mobility alone on the stairs, a good solution to the
elderly and those with reduced mobility up and down the stairs inconvenient difficulties. Ideal for business
and home accessibility wheelchair access solutions.

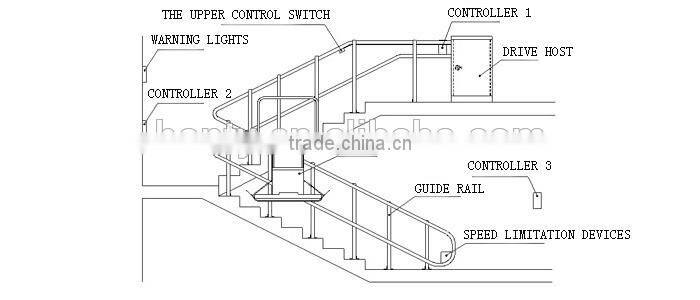

| Inclined Wheelchair Lift Specifications: | |
| Table size | 700mm*1000mm(Non-standard size) |
| Load capacity | 250kg |
| Speed | 0-7M/MIN |
| It will decelerate when departure or arrival landing | |
| Drive system | 1.5KW-VVVF Compact Drive System |
| Guide rail | Independent drive system and rails make one body, rails and |
| columns are made of | |
| stainless steel | |
| Power | AC 220V/380V, 50Hz, 15A |
| Communication | Carrier Communication |
| Platform operation | No lock constant direction button switch, DC24V, equipped with |
| emergency stop switch | |
| Remote call station | Used to call/send the lift and fold /unfold the platform(call send |
| buttons | only works |
| with platform folded up | |
| Surface coating | Durable electrostatic spray and paint, sea gray paint, polished |
| stainless steel and standard colors can be freely selected | |
| Bent Safety arm | Automatic safety arms are installed on the upper platform at 880 mm |
| Safety Warning Light | Mounted on the front and rear ends of the platform floor, |
| amber light emitting tube | |
| Overspeed governor | Mounted on the bottom rail, it will activate to quickly |
| bring the lift to a stop if it is descending down the stairs too quickly | |
| Obstruction sensors | Stop working when i encounter an obstacle |
| Manual toggle key | Manual descend the platform and fold the platform in emergency |
| Drive System | Sheave chain drive system |
| Direction system | Modular guide rail system |
| Control System | PLC control |
| Overload protection | relay protection device |
| Guard plate | Flap (three-side mounting on both sides automatically) |
| Emergency stop | Press the emergency button switch can control the machine |
| running in emergency | |
| Safety Interlock | No working if safety devices not in its position |
| Safety Edge | Touch panel operation safety in case of obstacles, stopped immediately |
| Power-off control | Manual folding when power off |
| Security ramp | Ramp up when lifting |
| Sensors | Edge sensors and underpan sensors to sense the obstacle |
| Speed Limits | Intelligent frequency control, start low, linear acceleration, |
| cornering deceleration | |
| Safety Keys | special keys control |
| Traction | rope wheel chain drive, and a slot on the rail. |
| Security system | independent security system |
| Operation | independent operation keys, open platform control voltage |
| switch cabinet and landing call station switch | |
| Stop place | Low place |
| Pause button | Each stop points have stop button |
| Non-touching sensor | Infrared sensor to sense the obstacle |
| Hand control system | manual emergency situations may decline and collapse manned |
| platforms | |
| Alarm device | Urgent call buttons ,different sound in different condition |
| Wireless remote | use in an emergency situation or operator control |
| control | |
| Color | Silver or customerized |
| End station indicator | Working and checking light |
| Foldable seats | equipped with seat belts and pack up automatically |
package of inclined wheelchair lift
FAQ
1. are you a factory or trading company ?
we are a manufacture with 7years experience.
Factory name | jinan hontylift machinary co.,ltd |
Factory address | No .8 Huixin Road Jiyang county Jinan North Development Zone Shandong China |
Business character | Integration of industry & trade |
workshops | 6 |
employees | 86~115 |
factory area | 199800m³ |
Manufacturing experience | 7 years since 2009 |
Exporting experience | 5 years since 2011. |
websites | / http://honty.en.china.cn/ / |
Service | 24h pre-sale service , 24h after-sale service |
Price advantage | Factory directly sell |
Visit factory | Anytime clients will be welcomed if visit factory, we can pick clients at airport or train station |
2. your service ?
pre-sale service 24hours and after-sale service are available , our salesman Tiny is available 24hours
3. your payment terms?
T/T.30% as deposit,70% paid before shipping.
4. your quality terms ?
we have CE certification.
C/O : CERTIFICATE OF ORIGIN is available , and as your requirements.
CE : CONFORMITY WITH EUROPEAN (DEMAND), PDF edition if you need.
5. brand terms ?
Accept OEM.
Company :
jinan hontylift manchinary co.,ltd
Address : No .8 Huixin Road Jiyang county Jinan North Development Zone Shandong China
Website :
Contact :Tiny
E-mail : tiny-sale#hontylift.com (change # into @)
whatsapp :008618763961675
Mobile phone:008618763961675
Wechat : tiny19931205
qq:2860351785
skype:
Feel free to contact me if you have any question , I will reply ASAP
