Home > Products > Wheelchair lift > Inclined Wheelchair Lift Disabled Person Assistant/wheelchair Lift/foldanle Wheelchair Lift
Inclined Wheelchair Lift Disabled Person Assistant/wheelchair Lift/foldanle Wheelchair Lift
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Honty | |
| Model Number | HT-4.0 | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Electric Motor | Power | 220V/50HZ/25A | |
| Rated Loading Capacity | 250kg | Min. Lifting Height | 65mm | |
| Max. Lifting Height | 4.0m | Table Size | 1.43*0.9m | |
| Overall Dimensions | 2.0*1.43*1.0m | Weight | 880kg | |
| Certification | CE certificate | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
inclined wheelchair lift disabled person assistant/wheelchair lift/foldanle wheelchair lift

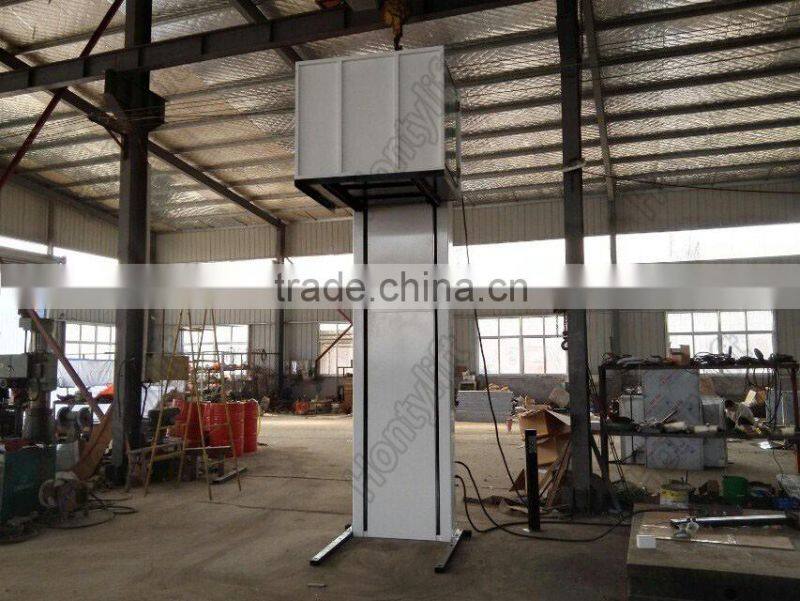

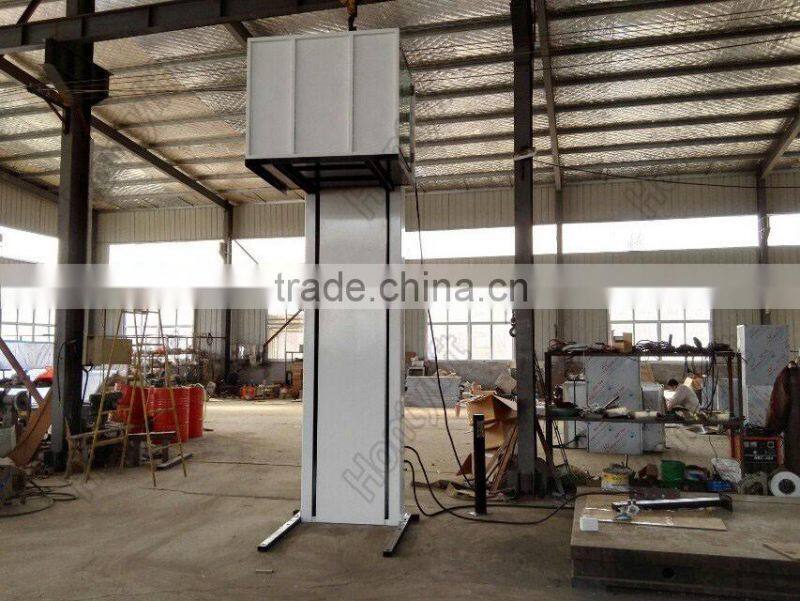

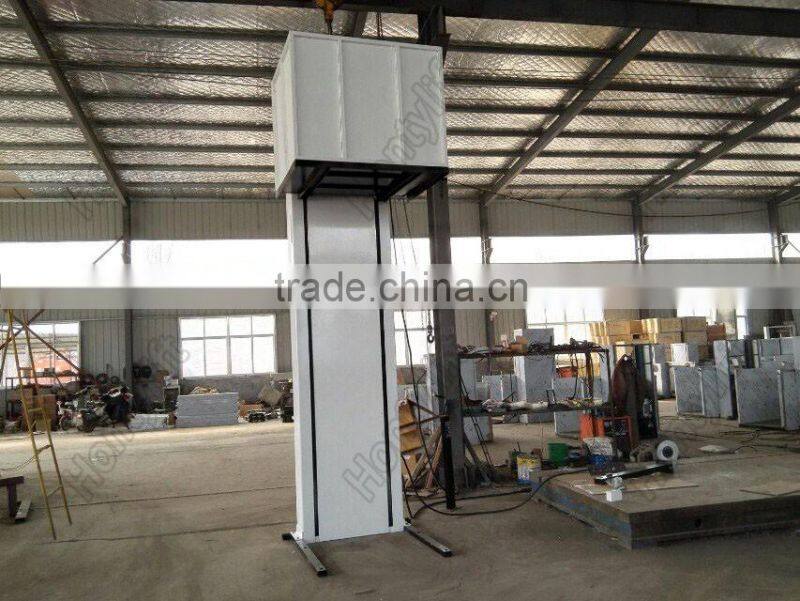

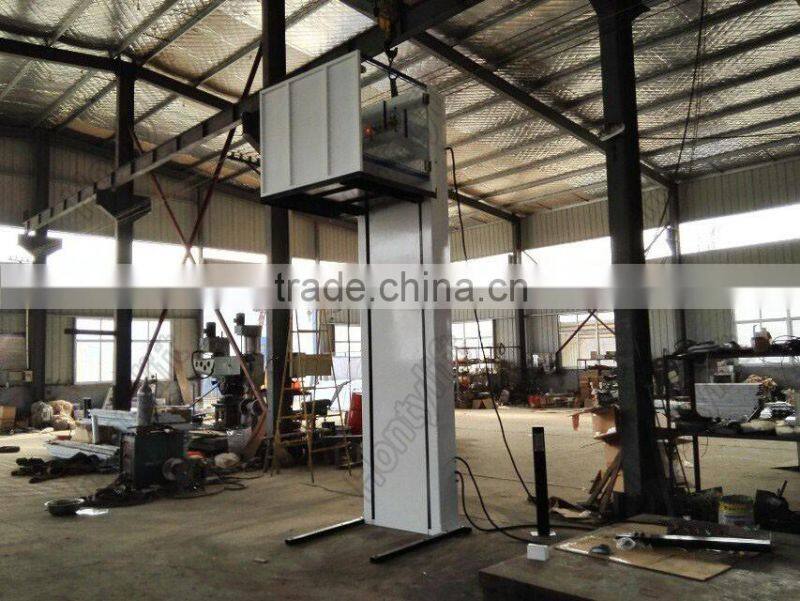

wheelchair lift introduction
- Adapt "c" steel reinforced high-strength rail.
- Drive by electro-hydraulic , up and down smoothly.
- With rupture protection device.
- The surface is decorated in stainless.
- Applicable to residential communities, hospitals, schools, restaurants, hotels and other public places.
Main parameters: | |
parameter | |
Platform size | 1.43(L)* 0.9m(W) |
Max Platform Height | 6m |
Speed | 0.06~0.1m/s |
Load capacity | 250kg |
Control voltage | 24V/DC |
Power Output | 1.5kw |
Power Input | 220V/50HZ/25A (or customized for local power supply) |
performance | |
Drive System | Hydraulic |
Control Mode | Inching Switch or Automatic |
Drive Control | Self-resetting system |
Control Device | Calling box (installed on the wall nearby) and remote controller(Extra optional) |
Overload | Protection Over current relay |
Material of Platform | Checkered slip-proof aluminum alloy |
Operation Panel | Polished aluminum Alloy |
Emergency Stop | The lifting and lowering process can be stopped immediately by pressing the emergency button. |
Safety Interlock | Lock the platform when it is out of control |
Safety Sensor | The operation must be stopped immediately the safety edge meets |
obstacles during operation. | |
Emergency lowering | The platform can be lowered by opening |
hydraulic valve manually or rolling screw rod. | |
others | |
Auto-flap | Turn up after lifting |
Painting | Plastic electrostatic spraying |
Installation | Non-pit installation, directly fixed to concrete floor (the concrete |
floor below the platform shall not be lower than the ground) | |
Working temperature | From -10°~60°C |
Working Condition | Both indoors and outdoors |
Safety Wane Working Range | 75° |
Guard panel & drive cabinet (framework) | Aluminum Alloy / 304 stainless steel |

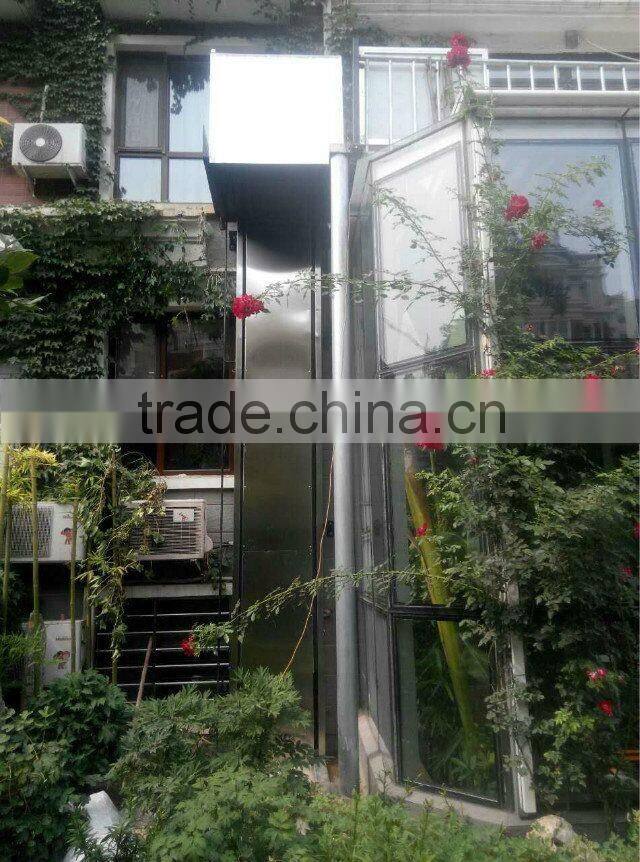

stainless vertical wheelchair lift is available
wheelchair lift type sheet
| model | travle height | capacity | platform size | dimension | weight |
| HT-1.0 | 1.0m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 350kg |
| HT-1.5 | 1.5m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 450kg |
| HT-2.0 | 2.0m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 550kg |
| HT-2.5 | 2.5m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 700kg |
| HT-3.0 | 3.0m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 780kg |
| HT-3.5 | 3.5m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 850kg |
| HT-4.0 | 4.0m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 880kg |
| HT-5.0 | 5.0m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 1000kg |
| HT-6.0 | 6.0m | 250kg | 1.43*0.9m | 2.0*1.43*1.0m | 1100kg |
| Available Configuration | |
| Name | use |
| Security wall | Aluminum alloy ,Glass shaft |
| Door Protection device | Interlock device to secure safe |
| DC models | Automatic built-in battery power supply system , |
| Ensure the machine after a power failure using | |
| Auxiliary control | Control box can be mounted at the desired position |
| with the machine circuit linkage operation | |
| Panel | 304 brushed stainless steel sheet / Electrostatic spraying |
| Protectative Platform | 304 brushed stainless steel sheet / Electrostatic spraying |
| Lifting height | As user needs to provide 80000mm mode |
Available Access Way : 90°adjacent access or 180°through access
Available Materials : Two choices including stainless steel & spraying plastic material can be selected as user request.
