Specifications
Chinese Linear Actuator Supplier1) 750N,1500N,4000N,6000N
2) Built in switch
3) 12V/24V DC
3) CE, RoHS
Chinese Linear Actuator 12v or 24v Supplier
JDR company can supply the linear actuator, lift motor, DC linear actuator, electric chair parts actuator, mini linear actuator, electric linear actuator, electric actuator, track actuator, electric sofa motor, etc.
They are used in hospital and care beds, wheelchairs, patient-lifters, electric sofa, working tables, skylights, recliners, medical equipment, dental chairs, handicap equipment, ergonomic furniture, tables, pedestals, furniture, and traction beds, etc.
Specifications of FY011 Linear Actuator:
Name: |
Linear Actuator |
Model: |
FY011 |
Usage: |
Electric Bed, Electric Sofa, Massage Chair, Dental Chair, other Industrial use |
Input Voltage: |
12v or 24v DC |
Load Capacity: |
750N, 1500N, 4000N, 6000N |
Free Load Speed: |
30mm/s, 18mm/s, 8mm/s, 4mm/s |
Standard Stroke: |
50 mm --- 1000mm (Optional) |
Installation Dimension: |
S + 175mm |
Type of Duty: |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
Limit Switch: |
Builtin / Inner (can not be adjust after left factory) |
Work Temp.: |
-26 to 65 centigrade |
Protection Grade: |
IP43, IP54, IP65 |
Certificate: |
CE / EMC + LVD, RoHS |
Control Box Used: |
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 | |
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 | |
Control 4 Linear Actuators: FYK012-4, FYK016-4 | |
Control 5 Linear Actuators: FYK012-5, FYK016-5 | |
Control 6 Linear Actuators: FYK016-6 | |
Handset Used: |
All FYH Series Handset, Pls contact us for detail pictures. |
Features:
Material: Stainless Steel and plastic
Color: black / gray
Warranty: two years
Certification: CE/EMC+LVD
Specifications for all JDR Linear Actuators:

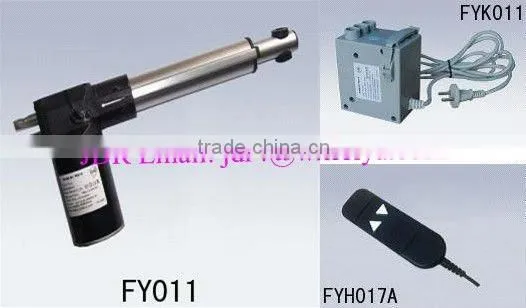

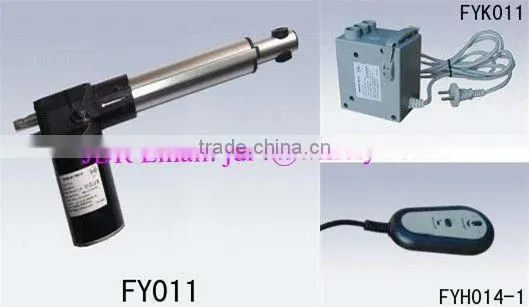

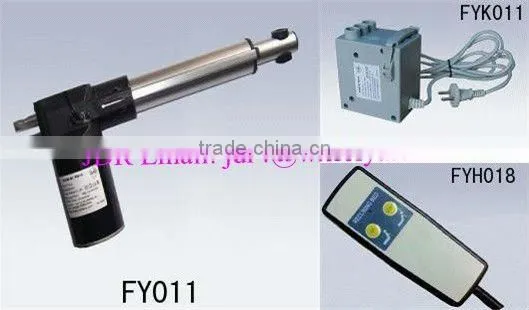

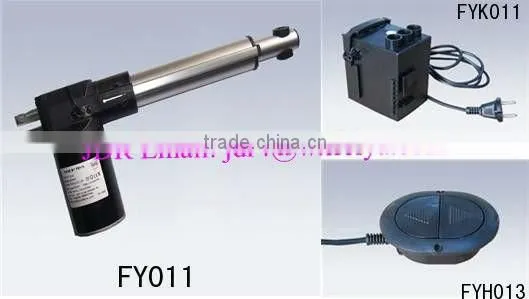

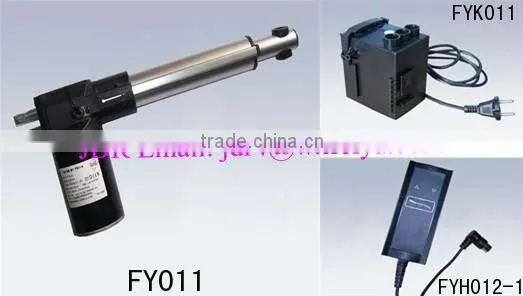

More FY011 Linear Actuator sets:
Installation of FY011 Linear Actuator

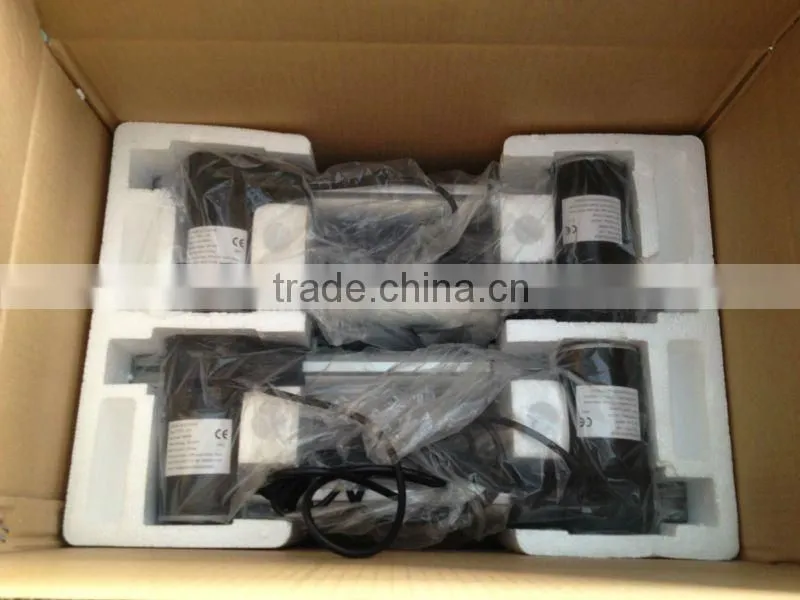

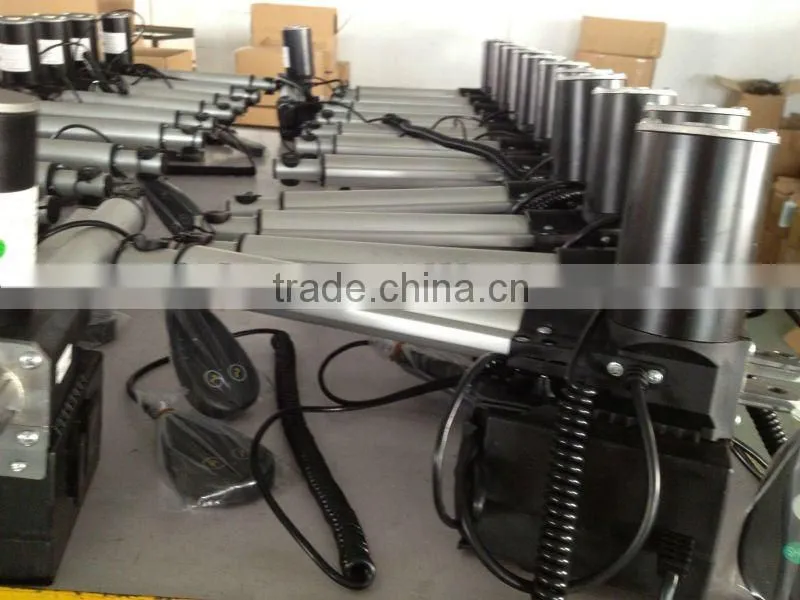

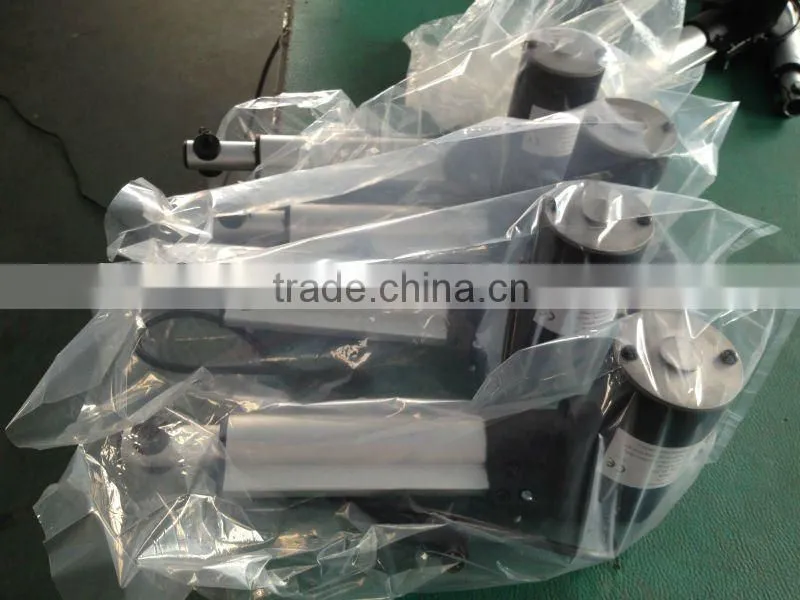

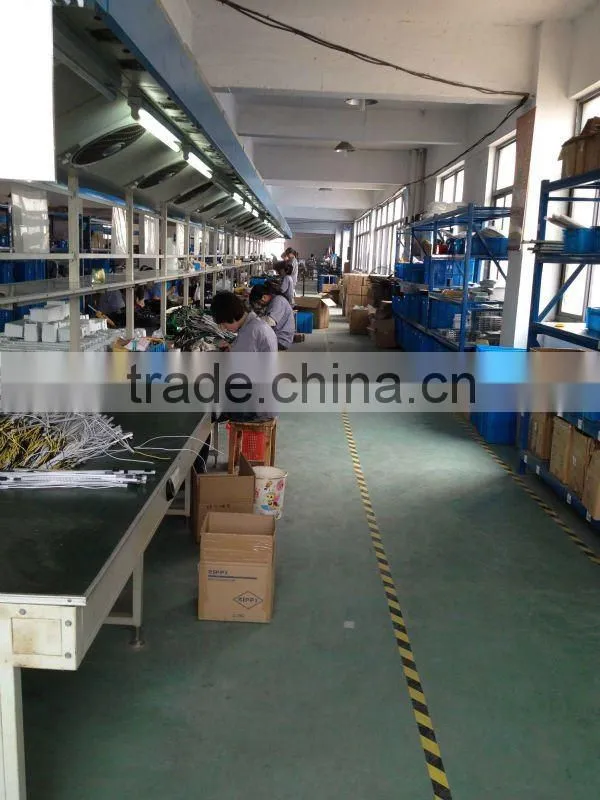

Production & Packing for FY011 Linear Actuator
