Specifications
1.7 TFT LCD Screen ,Monitor Type 16:9 new panel with DVR2. Image Capture in JPEG file format, video Recording in Motion JPEG
Underwater camera security cameras monitor GSY-8000

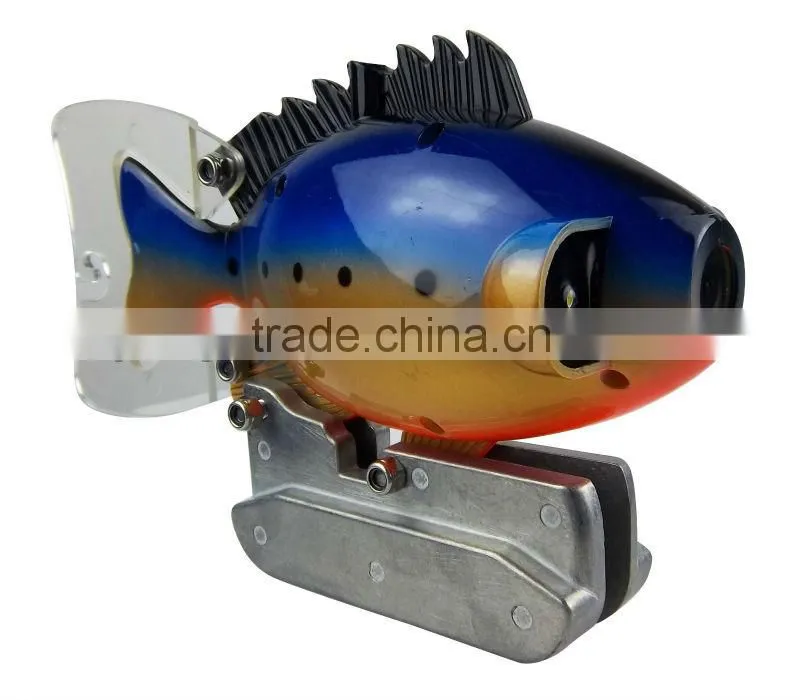

Underwater Video CCD Camera
Heavy Duty water-proof 50M .
2 pcs illuminated LEDs
For underwater exploration/Fishing/Well inspection!
Latest version from factory!
New version just arrived with user-defined pan range setting!
Product Introduction:
GSY-8000 is a underwater video camera . It is a CMOS camera , very 1/3"PC1089 Super HAD CCD image. It was specially designed for underwater activities such as sea bottom exploration, ocean fishing and ice fishing, well inspection, etc. Typical applications are:
1.7 TFT LCD Screen ,Monitor Type 16:9 new panel with DVR
2. Image Capture in JPEG file format, video Recording in Motion JPEG (AVI)
3.Display resolutions: Image: 720x480 pixels, Video 720x480p (30 fps)
4. Interface: SD Card (up to 8GB SDHC), RGB video out (NTSC/PAL)
5.OSD Language: English
6. Package style: tool box
7.Underwater exploration
8. Ocean/Ice/Lake fishing
9.Swimming/diving/snorkeling
10. Well/pipe inspection
Item Includes:
1 x 7" inch Color TFT LCD Monitor with DVR

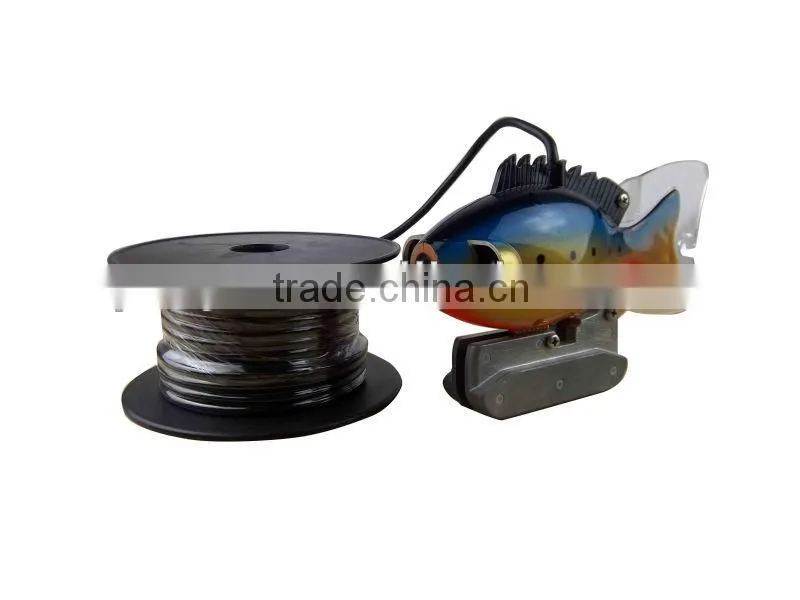

1 x Underwater Camera with 50M Cable Can be rotated
1 x DC 12V Battery Charger
1 x 12V Sealed Lead-Acid Rechargeable Battery
1 x Connector (for Battery charging only)
7 Inch TFT-LCD Color Monitor Specification:
•Vision: TFT
•Display Made: 16:9
•System: PAL/NTSC
•Video Input: 1Vp-p 75ohm
•Consuming Power: <9.5W
•Power: DC 12V
•Resolution: 960(W) x RGB x 480(H)
•Operating Temperature: -10 to +50 degree C
•Storage Temperature: -20 to +60 degree C
Camera Specification:
•Input Voltage: DC 12V
•Image Sensor: 1/3 PC1089 CCD
•Pixel Resolution: PAL: 500 x 582
•NTSC: 512 x 492
•Electronic Shutter: 1/60~1/5000 Sec
•Lens Angular Field of View: 110 Degree
•Cable Length: 50m
•Effective Focal Length: 6mm, 9 Light
•Maximum Relative Aperture: F/2.0
•Resolution: 480 TV Lines
•Video Signal Output: 1V(p-p) Composite Video Signal at 75ohm Termination
•Power Consumption: 1 Watt
•S/N Ratio: 40dB
•Packaging Material: High Impact ABS Plastic
•Operating Temperature: -50 to +160 degree F
•Humidity: 100% Condensing

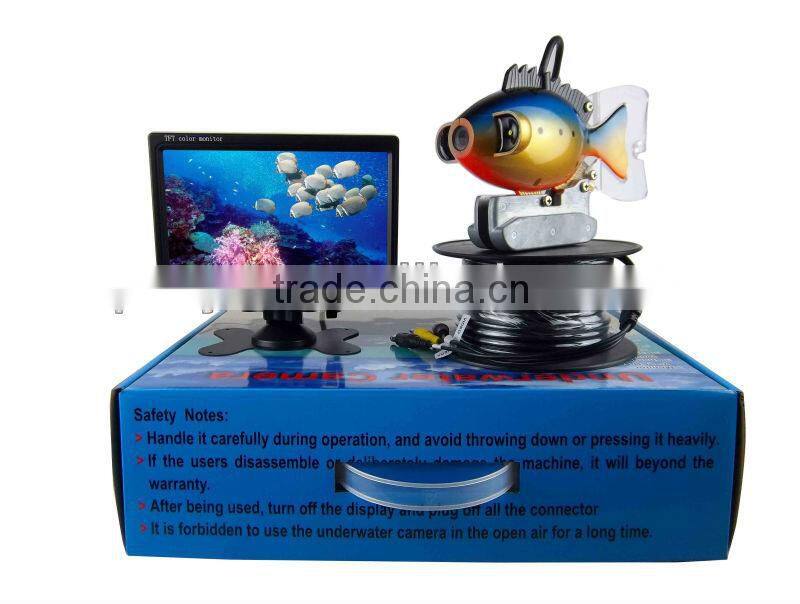

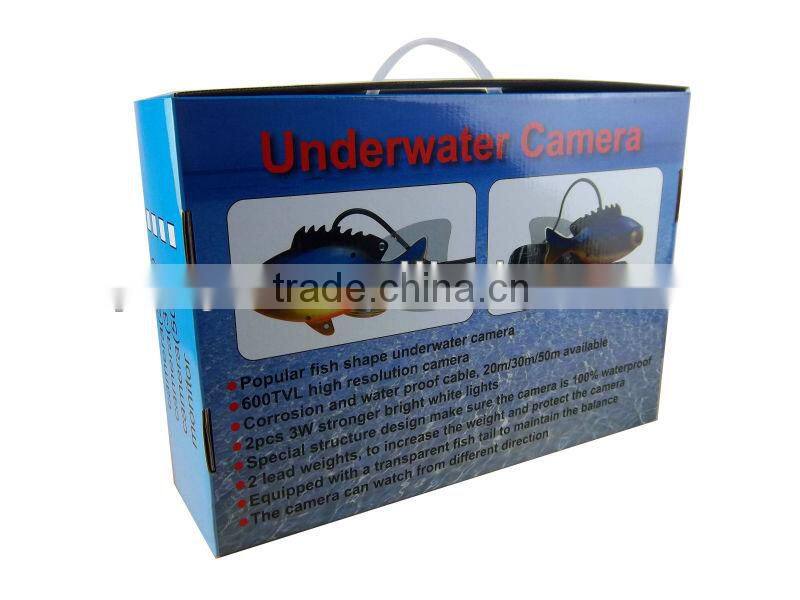

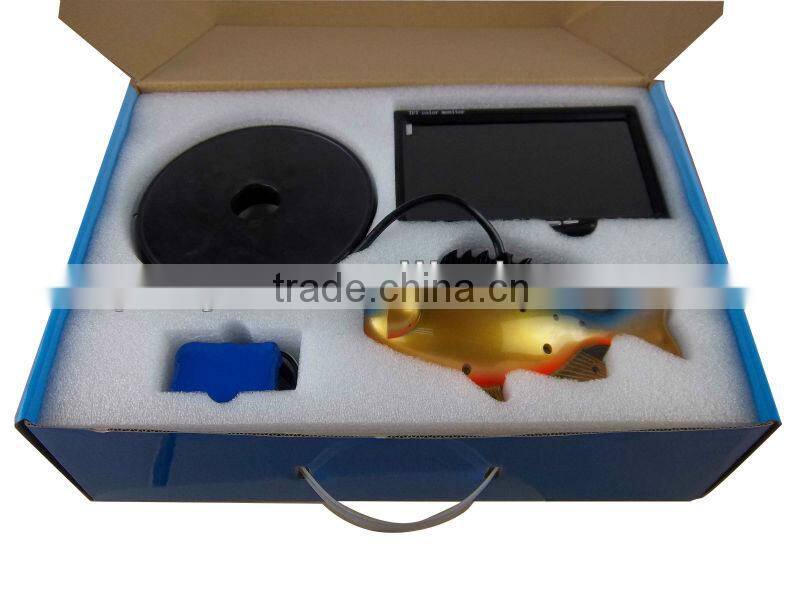

Product package show as follow:
