Wheelchair Lift Manufacturer Supply Chair Lift for Stairs Chair

FOB Price

US$ 1,000 - 8,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Honty
Model Number	VL /Y	Lift Mechanism	Lift Chain
Lift Drive / Actuation	Hydraulic	Power	0.75kw
Rated Loading Capacity	300kg	Min. Lifting Height	0.5m
Max. Lifting Height	12000m	Table Size	1400*1000mm
Overall Dimensions	150010001400m	Weight	<400kg
Certification	CE ,ISO	Warranty	12months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

wheelchair lift manufacturer supply chair lift for stairs chair

1.Product Description

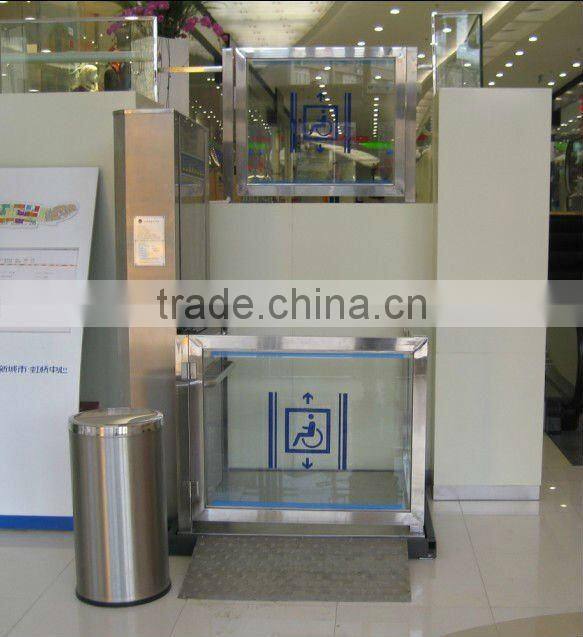

our wheelchair for disabled lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to-use operating controls.

Wheelchair lift is divided into two types according to material, which Spray type and Stainless Steel type.

Characterized by novel design, perfect stability and safety, nice appearance, low noise and so on, with 0.65-12.0m working range, 150-300kg carrying capacity. Ideal for indoor and outdoor applications.

2.Featuers:

1.accessible lift is a mechanical device that is designed specifically to transport a wheelchair or motorized scooter and individual from one floor to another

2.This allows wheelchair users the opportunity to move move freely within a multi-floored building while taking the wheelchair with them so they are fully independent between floors

3.Accessible lift is divided into two typeset according to material ,which spray type and stainless steel type

4.Characterized by novel design ,perfect stability and safety ,nice appearance ,low noise and so on ,with 1.0-12m working range ,150kg-300kg Carrying capacity ,ideal for indoor and outdoor applications

5.Non-pit installation ,directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground .)

3.Technical Parameters:

Name	No.
Wheel-chair vertical lift	VL/Y accessible lift platform
Platform size	1400mm(L)* 1000mm(W) OR as your demand
Max Platform Height	12000(mm)
Min Platform height	65mm
Speed	0.06-0.1 m/s
Load capacity	300KG
Control voltage	24V/DC
Power Output	0.75kw-2.2kw
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Stainless steel
Guard panel & drive cabinet (framework)	304 stainless steel
Auto matical ramp	yes
Column switch	Two column switch, one is on the ground floor, one on the first floor
Operation Panel	Polished Stainless steel(up down and Emergency drop valve)
Safety Wane Working Range	75
Working Condition	Both indoors and outdoors
Working temperature	From -20 ~60
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Control Device	Calling box (installed on the wall nearby) and remote controller(Extra optional)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation.
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting

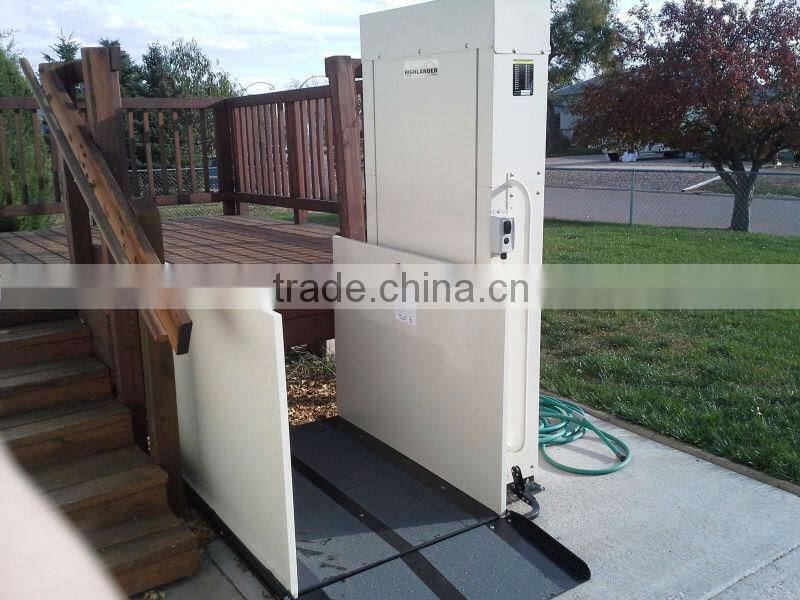

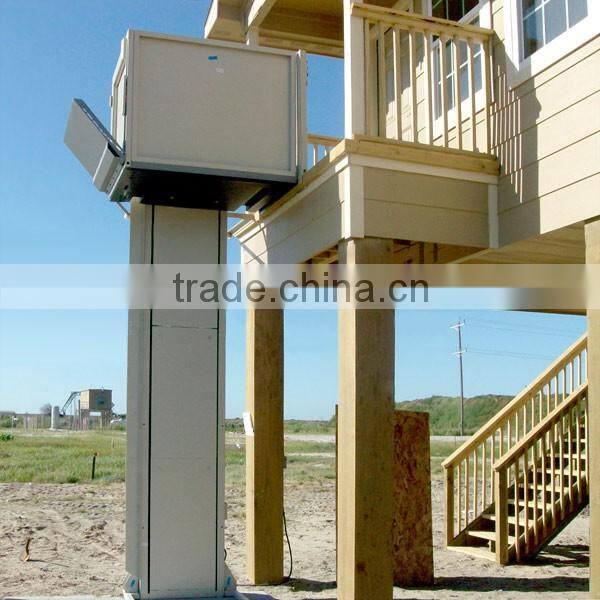

duct picture:

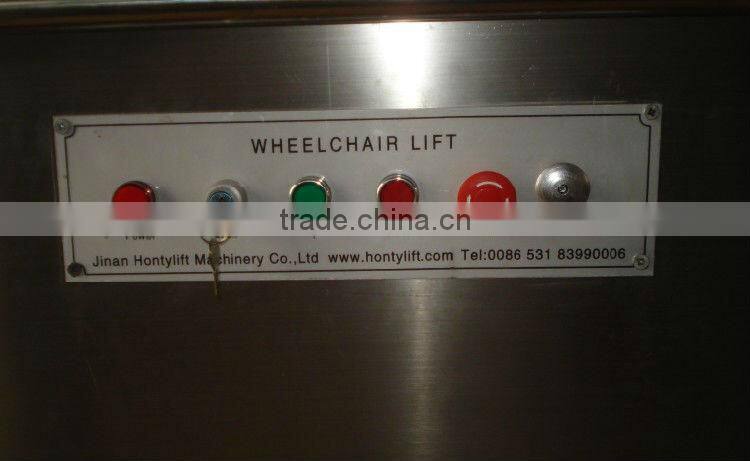

5.Control buttons:

Our Services

1- One year warranty for whole machines.

2- Providing free quick-wear part.

3- Low charge for continue maintenance when warranty is expired.

4- Exclusive engineer support at any time.

5- We can provide free training to end-users

FAQ

1. How about the delivery time?
Within 15 working days after we receive the order

2. What kind of payments do you support?
T/T, L/C, other kinds, pls contact with us.

3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, better price. pls contact with us.

4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.

5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
