new potable light electric wheelchair lift for handicapped
1.Product Description
1)Characterized by novel design
2)perfect stability and safety,
3)nice appearance, low noise
4)with 0.65-12.0m working range
5)150-300kg carrying capacity.
6) Non-pit installation
7)for indoor and outdoor applications.
2.Technical Parameters:
Name |
No. |
|
Wheel-chair vertical lift |
VL/Y accessible lift platform |
|

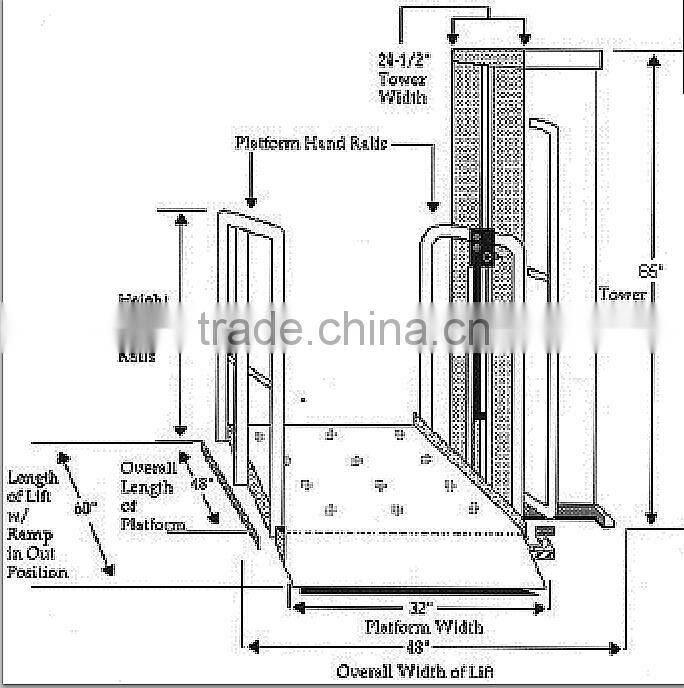

Platform size |
1400mm(L)* 1000mm(W) OR as your demand |
|
Max Platform Height |
12000(mm) |
|
Min Platform height |
65mm |
|
Speed |
0.06-0.1 m/s |
|
Load capacity |
300KG |
|
Control voltage |
24V/DC |
|
Power Output |
0.75kw-2.2kw |
|
Power Input |
220V/50HZ/25A (or customized for local power supply) |
|
Drive System |
Hydraulic |
|
Control Mode |
Inching Switch or Automatic |
|
Drive Control |
Self-resetting system |
|
Overload |
Protection Over current relay |
|
Material of Platform |
Stainless steel |
|
|
Guard panel & drive cabinet (framework) |
304 stainless steel
|
|
Auto matical ramp |
yes |
|
Column switch |
Two column switch, one is on the ground floor, one on the first floor |
|
Operation Panel |
Polished Stainless steel(up down and Emergency drop valve) |
|
Safety Wane Working Range |
75 |
|
Working Condition |
Both indoors and outdoors |
|
Working temperature |
From -20 ~60 |
|
Installation |
Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
|
Control Device |
Calling box (installed on the wall nearby) and remote controller(Extra optional) |
|
Emergency Stop |
The lifting and lowering process can be stopped immediately by pressing the emergency button. |
|
Safety device |
Safety Interlock |
Lock the platform when it is out of control |
|
Safety Sensor |
The operation must be stopped immediately the safety edge meets obstacles during operation. |
|
Emergency lowering |
The platform can be lowered by opening hydraulic valve manually or rolling screw rod. |
|
Auto-flap |
Turn up after lifting |

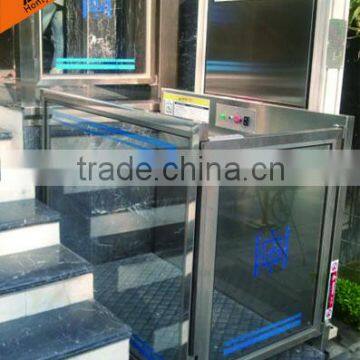

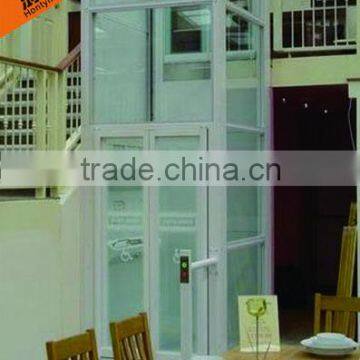

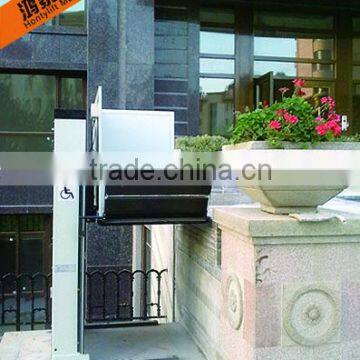

duct picture:
4.Control buttons:

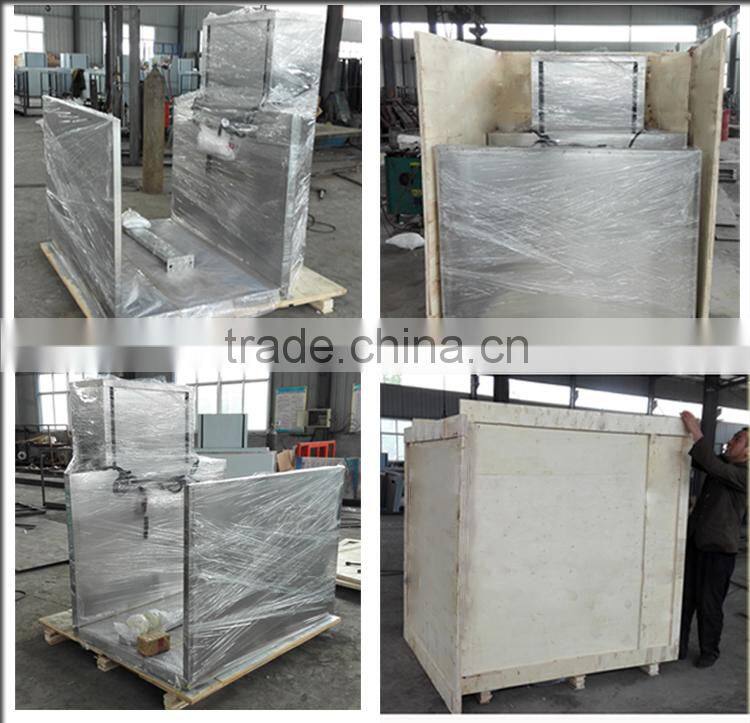

| Packaging Details: |
1) Internal packaging:be packed air bubble film inside first 2) External packaging:be packed in wooden cases |
|---|---|
| Delivery and shipping Details: |
1)Usually be shipped by maritime transport 2)if it is landlocked countries, generally |
1)- One year warranty for whole machines.
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
1. How about the delivery time?
Within 15 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, other kinds, pls contact with us.
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, better price. pls contact with us.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
Please contact us if you are interested in our products, we will provide satisfactory service for you!
If you want to customize the products,please provide below details:
1- Lifting Capacity
2- Lifting height
3- Platform size
4- working height
5- Other special needs
Any confusing,please contact us directly.
