hot sale power bus wheelchair elevator lift

FOB Price

USD $3,000 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 350 Unit / Units per Month
Port QINGDAO
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Brand Name:	Honty	Model Number:	VL /Y
Lift Mechanism:	Screw Lift	Lift Drive / Actuation:	Hydraulic	Power:	0.75kw
Rated Loading Capacity:	300kg	Max. Lifting Height:	3-12 m	Table Size:	1400*1000mm
Overall Dimensions:	customized	Weight:	<400kg	Certification:	CE ,ISO
Warranty:	12months, 12 months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

power bus wheelchair elevator lift

1.Product Description

1)Characterized by novel design

2)perfect stability and safety,

3)nice appearance, low noise

4)with 0.65-12.0m working range

5)150-300kg carrying capacity.

6) Non-pit installation

7)for indoor and outdoor applications.

2.Technical Parameters:

Name	No.
Wheel-chair vertical lift	VL/Y accessible lift platform
Platform size	1400mm(L)* 1000mm(W) OR as your demand
Max Platform Height	12000(mm)
Min Platform height	65mm
Speed	0.06-0.1 m/s
Load capacity	300KG
Control voltage	24V/DC
Power Output	0.75kw-2.2kw
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Stainless steel
Guard panel & drive cabinet (framework)	304 stainless steel
Auto matical ramp	yes
Column switch	Two column switch, one is on the ground floor, one on the first floor
Operation Panel	Polished Stainless steel(up down and Emergency drop valve)
Safety Wane Working Range	75
Working Condition	Both indoors and outdoors
Working temperature	From -20 ~60
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Control Device	Calling box (installed on the wall nearby) and remote controller(Extra optional)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation.
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting

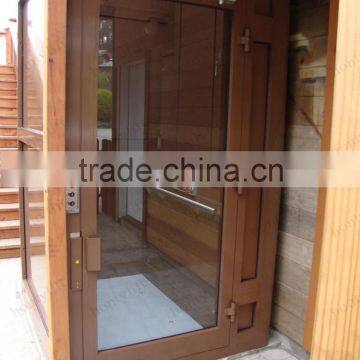

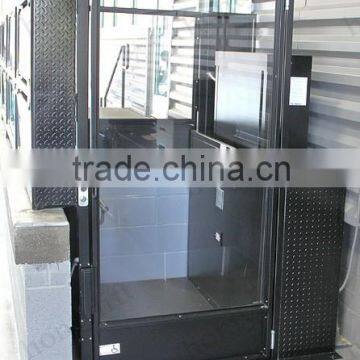

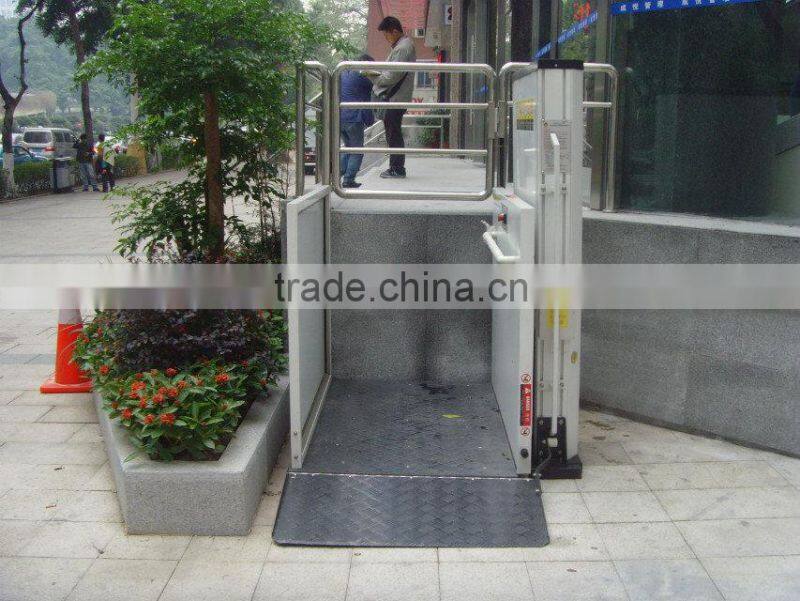

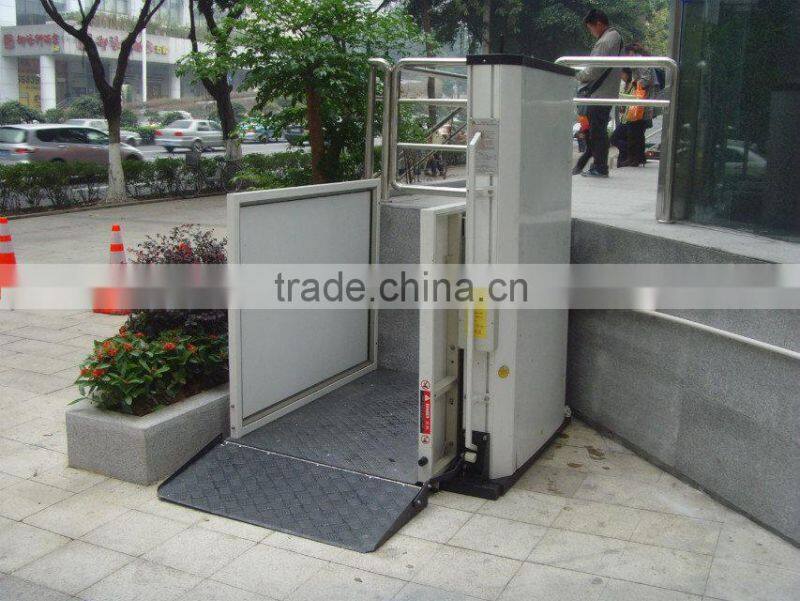

duct picture:

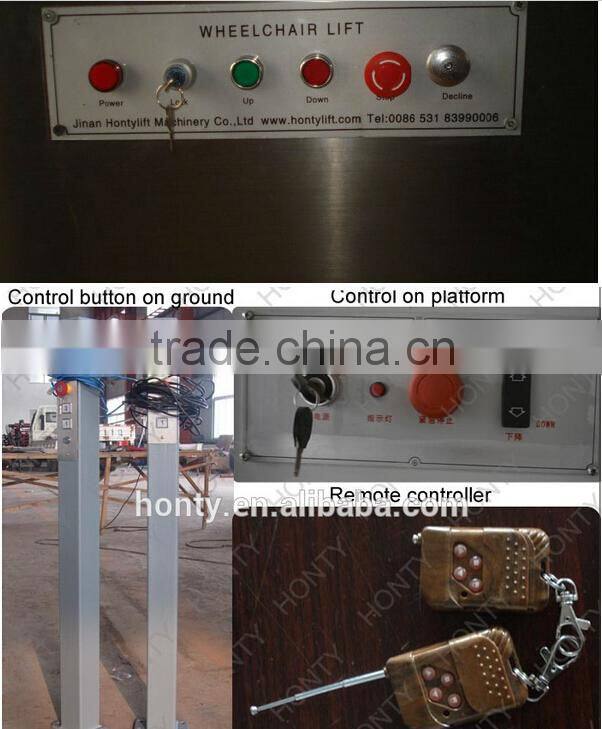

4.Control buttons:

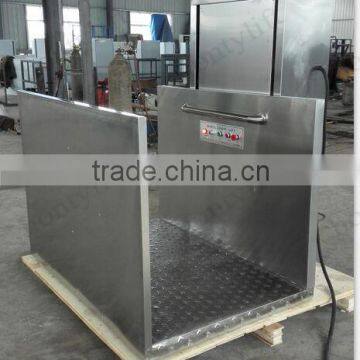

Production line

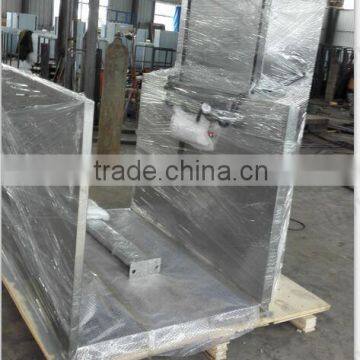

Packaging & Shipping

Packaging Details:

1) Internal packaging:be packed air bubble film inside first

2) External packaging:be packed in wooden cases

Delivery and shipping Details:

1)Usually be shipped by maritime transport

2)if it is landlocked countries, generally
land and sea transport.

3)15—30 days after confirmation of the purchase order

Our Services

if you are interested in our products, we will provide satisfactory service for you!

1)- One year warranty for whole machines.

2)- Providing free quick-wear part.

3)- Low charge for continue maintenance when warranty is expired.

4)- Exclusive engineer support at any time.

5)- We can provide free training to end-users

6)- 24hours online services

Customer visit

FAQ

1. How about the delivery time?
Within 15 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, other kinds, pls contact with us.
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, better price. pls contact with us.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.

Certifications

How to customize?

If you want to customize the products,please provide below details:

1- Lifting Capacity

2- Lifting height

3- Platform size

4- working height

5- Other special needs

Any confusing,please contact us directly.
