High Alumina Firebrick China

High Alumina Firebrick China thumbnail-1
High Alumina Firebrick China photo-1
US$ 1 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Shape:
Brick
Material:
Other, --, Al2O3, SiO2,Fe2O3
Contact Supplier Request Quote Chat Now
Jiangsu Cera Thermal Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port/Shandong port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Shape Brick
Material Other, --, Al2O3, SiO2,Fe2O3
SiO2 Content (%) 44.4.0%
Al2O3 Content (%) 37.0%
MgO Content (%) --
CaO Content (%) --
CrO Content (%) --
SiC Content (%) --
Model Number JM 23
Brand Name Cera Tec / Morgan

Specifications

1. low thermal conductive, low heat storage
2. purity
3. good thermal insulation, enable the use of thin-walled constructions

Insulating Firebrick





Description

  1. CT firebricks are made from high-purity refractory clays, temperature of use ranging from 1100 oC to 1700 oC, each grade is formulated to meet specific thermal and physical requirements.
  2. With graduated additions of alumina for higher temperature products
  3. Carefully grade d organic filler
  4. The organic filler burns out during manufacture to give a uniform, control pore structure.

Features

  1. low thermal conductive, low heat storage
  2. purity
  3. good thermal insulation, enable the use of thin-walled constructions
  4. the good alumina contents confer good refractoriness
  5. iow iron and alkali fluxcontent contributes to their stability to reducing atmosphere
  6. these can be machined to special shapes, incurring fewer sections and joints

Typical Application

  1. Recommended for use as primary hot face refractory lining or as back-up insulation behind other refractories in furnaces, kiln, flues, heaters, regenerators, stress relieving furnaces,etc





Date Sheet



Type   TJM 23 TJM B5  TJM 26  TJM 28  TJM 30
Classification temperature (°C)    1260  1300  1430  1540  1600
Properties at mean temperature
Density (kg/m3)    500  800  800  900  1100
Compressive strength (MPa)    1.0  2.0  2.0  2.5  3.0
 Rupture strength (MPa)    0.7  1.2  1.5  1.8  2.0
Properties at high tempetature
Thermal conductvties (W/m.k)

0.22(600°C)

0.27(800°C)

 0.28(600°C)

0.30(800°C)

 0.39(800°C)

0.43(1000°C)

 0.37(800°C)

0.41(1000°C)

 0.43(800°C)

0.45(1000°C)
  Al2O3  45  45  55  64  73
 Chemical composition (%) SiO2   48  50  41  32  25
   Fe2O3  1.0  1.0  0.9  0.7  0.6





Product pictures



High Alumina Firebrick China





High Alumina Firebrick China





High Alumina Firebrick China







Office in Nanjing



High Alumina Firebrick China







Factories in China





High Alumina Firebrick China



High Alumina Firebrick China

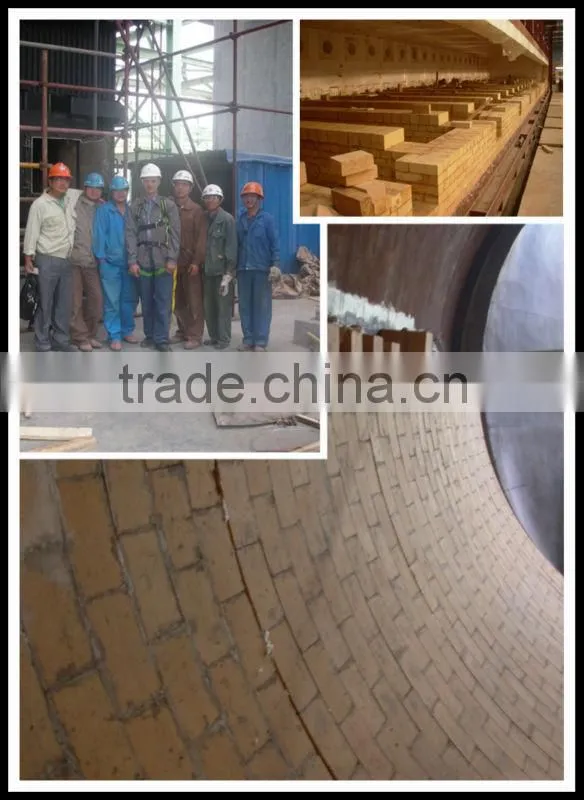

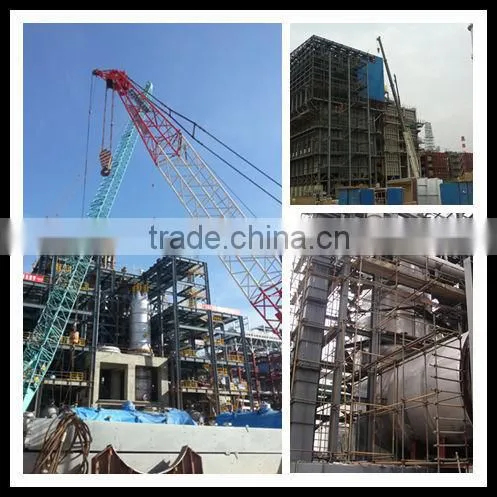

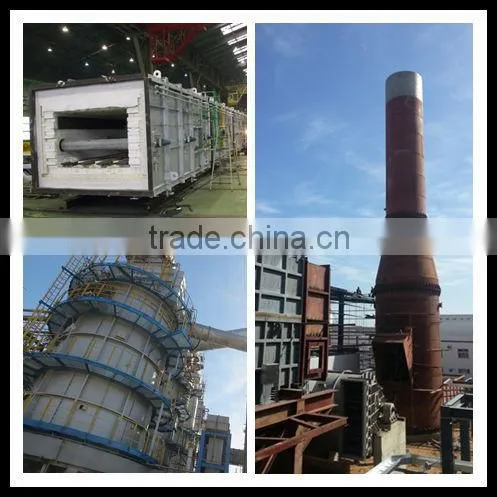

Construction projects



High Alumina Firebrick China



High Alumina Firebrick ChinaHigh Alumina Firebrick China
