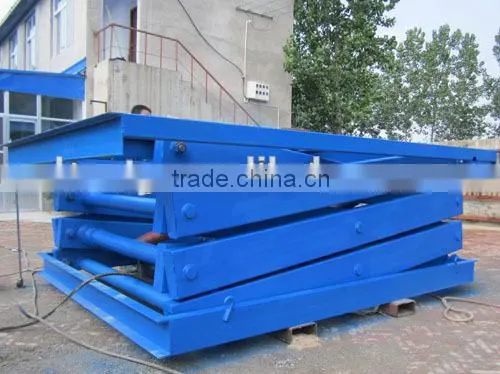

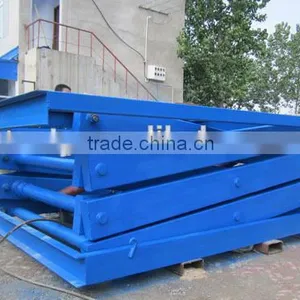

Help CenterStationary Hydraulic Scissor Lift Platform
Related Products
-
Stationary Scissor Cargo Lift Table With 1-10ton CapacityUS$ 1,000 - 5,000MOQ: 1 Set -
Hydraulic Upright Elevator 2tons Cargo ElevatorUS$ 1,000 - 10,000MOQ: 1 Unit
-
10m Guide Rail Cargo Lift/2tons Cargo ElevatorUS$ 1,000 - 10,000MOQ: 1 Unit
-
Lead Rail Upright Cargo LiftUS$ 1,000 - 10,000MOQ: 1 Unit
-
7.5m Hydraulic Upright Cargo Lift/guide Rail Cargo ElevatorUS$ 1,000 - 10,000MOQ: 1 Unit
Our Advantage:
1.we are providing the most stable ,dependable,and versatile method of lifting heavy loads.
2.The most popular and efficient style of industrial scissor cargo lifts.
3.Simplicity and few moving parts,maintenance-free bushing,and wide acceptance by customers.
4.Many years of trouble free operation for relatively small capital investment.
Features:
1.High strength steel frame structure
2.Can be customized
3.Simple and easily pushbutton operation to provide fully control.
4.Heavy duty hydraulic lift cylinders enable a safe and efficient service.
5.High tensile structure scissor arms and rigid platform construction allow high loading capacity.
6.Safety dismountable guardrail,hydraulic support legs.
Different types of installation:
1. One is to be sited on a special place to loading cargos and then lifting to a certain height to handle and move the cargos.
2.The other type is sited in a lift pit and accessorial tracks. The table of lift is in the same level with the ground which is convenient to move the cargo onto it. In this way it also can be called freight elevator.
Specifications:
|
Name |
Type. |
Mix height (MM) |
rises height (MM) |
Raise weight (Kg) |
Platform size (mm) |
Power (KW) |
Weight (KG) |
Stationary lift tables |
SJG4.5-3.5 |
760 |
3500 |
4500 |
4000*2000 |
5.5 |
4500 |
SJG2-4.8 |
700 |
4800 |
2000 |
3600*2000 |
5.5 |
3800 |
|
SJG5-5.4 |
950 |
5400 |
5000 |
5000*1600 |
7.5 |
6000 |
|
SJG3-7.2 |
860 |
7200 |
3000 |
5500*3000 |
11 |
8870 |
|
SJG0.5-5 |
850 |
5000 |
500 |
2000*1000 |
2.2 |
1200 |
|
SJG1-3.3 |
840 |
3300 |
1000 |
1900*1500 |
3 |
1300 |
|
SJG1-4.3 |
860 |
4300 |
1000 |
2500*2500 |
1.5 |
2500 |
|
SJG1-6 |
1230 |
6000 |
1000 |
2200*1500 |
2.2 |
2500 |
|
SJG2-3.5 |
1000 |
3500 |
2000 |
2200*1500 |
2.2 |
1800 |
|
SJG2-4.5 |
1070 |
4500 |
2000 |
1600*1600 |
4 |
2500 |
|
SJG2-6.8 |
1400 |
6800 |
2000 |
2550*2200 |
4 |
3300 |
|
SJG3-4.5 |
1060 |
4500 |
3000 |
2200*1800 |
4 |
2200 |
