motorized vertical platform lifting
Hatchway type lift platform:
Hatchway type lift platform is based on the basic barrier-free lift, but better than that.
It includes three parts lift platform, driving wall, seal type hatchway; driving wall contains vertical guide rail and driving mechanism.
The equipment has its own unique hydraulic drive system, the vertical platform which connected by platform and hatchway, running fast and stable, and this product also with the characters of high safety, simple installation, small floor space and don’t need pit.
Hatchway type lift platform is an ideal plan for barrier-free path to solve the problem of big gaps between each storey in the building. It is extensively used in hospital, small office building, apartment building for the Old and so on public architectures.
Reference technology parameter:
Goes in and out way: 90°or180°
Control electrical power:24V/DC
Motor power:1.5KW,24V/DC or 2.2KW,220V/AC
Storage battery supply electricity: (only supply DC) 24V/DC,30A/H
Electric source:220V/50HZ/25A,
Driving system: fluid power drive(hydraulic)
Running way: jogging control or automatic
Installation way: no pit installation, directed fix on the concrete.
External controlling setting: external calling boxes settled on the top and down floor of the equipment which close to the wall, also you can choose to use remote control.
Manual: when manual hydraulic valve open, lift base plate can go down by hand.
Reference Model
| Model | Load | Platform size | Lifting height | Pit depth | Dimension |
| HT3-2.4 | 3T | 2.0*2.0M | 2.4M | 300 MM | 2.0*2.0*0.63M |
| HT2-5 | 2T | 2.1*1.2M | 5.0M | 200 MM | 2.1*1.2*0.87M |
| HT1-4.5 | 1T | 2.1*1.5M | 4.5M | 200 MM | 2.1*1.5*0.80M |
| HT 5-6.5 | 5T | 2.2*1.6M | 6.5M | 300 MM | 2.2*1.6*1.28M |
| HT 3-6.5 | 3T | 2.2*1.9M | 6.5M | 300 MM | 2.2*1.9*1.52M |

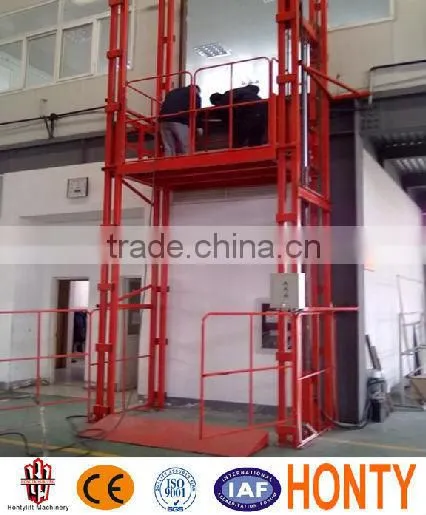

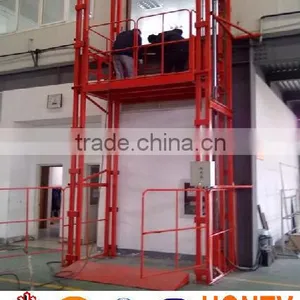

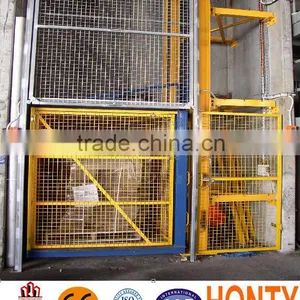

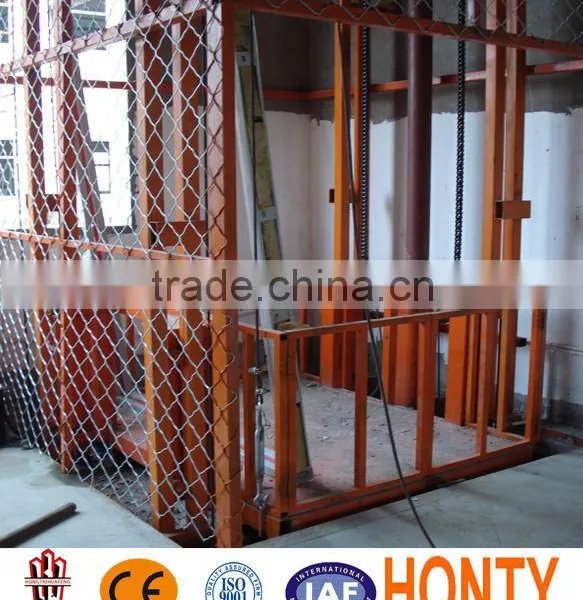

indoor inground vertical lead rail lift for goods handle ,help people to transport goods out

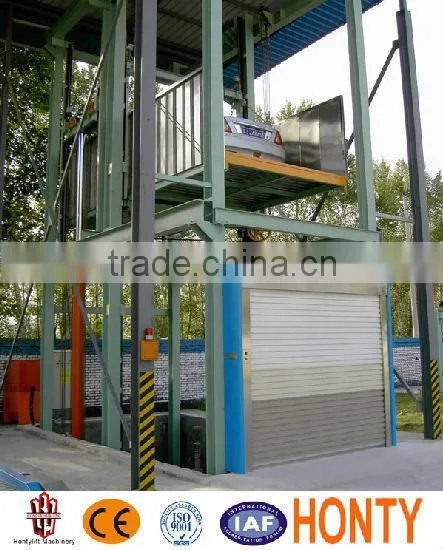

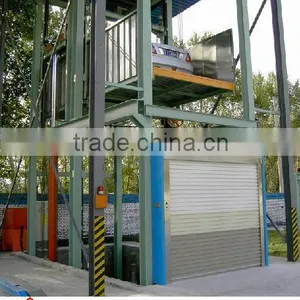

outdoor vertical lead rail to transport goods ,can be used together with truck unloading &loading

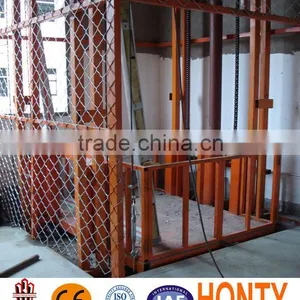

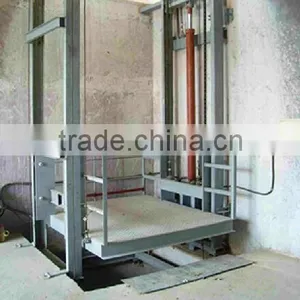

The lift chain can help the lift runs fast and stable (against the wall)
Safety device:
Safety lock: any improper operations will stop the lift platform running.
Safety touching plate: the safety toughing plate will stop when it touch the barriers.
Emergency descend: manual the lift goes down when no electricity or have some problems.

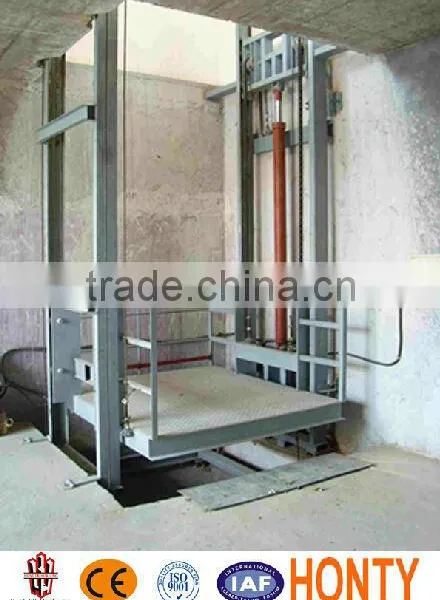

outdoor and against the wall
Hydraulic explosion-proof: we installed an explosion-proof valve at the end of the hydraulic cylinder, when oil circuit exploded, it will control the speed of lifting down.
Prevent falling by machine: we put two mechanical cams on the each side of the guide rail, when the chain broken, cams will jam the guide rail, and lock the platform, so the platform will not fall down.
Manual safety door: when the platform left the station, the safety will lock automatically, when the platform arrive the station, the safety door will open automatically
Electric safety door: when the platform left the station, the safety will lock automatically, when the platform arrive the station, the electric safety door will open automatically, and also delay automatically closing the door.
Packaging & Shipping
packaging: standard international packaging . The wooden case can be customized as the machine size. Water-proof.
shipping: The loading port is Qingdao,China. We will delivery your machine once your order done within 15 days.
