Specifications

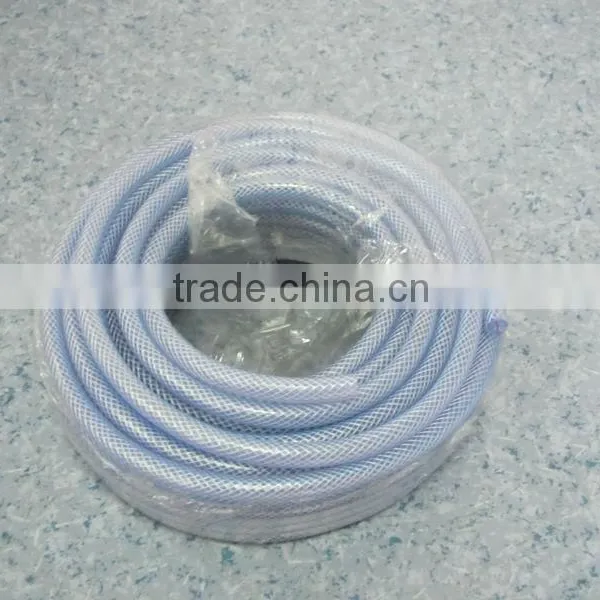

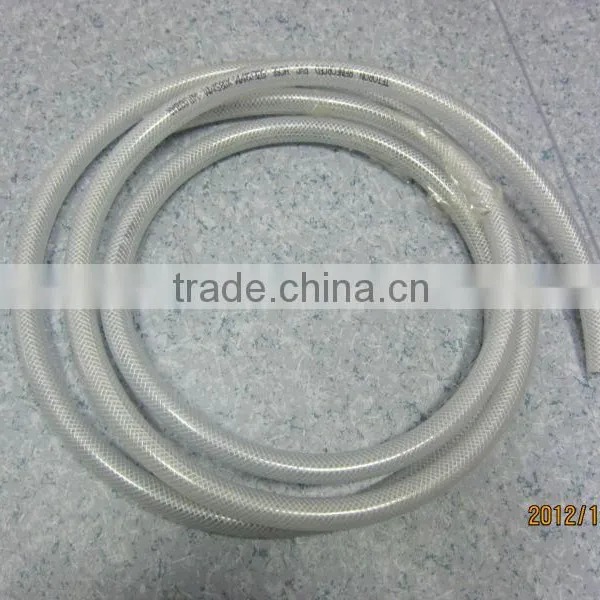

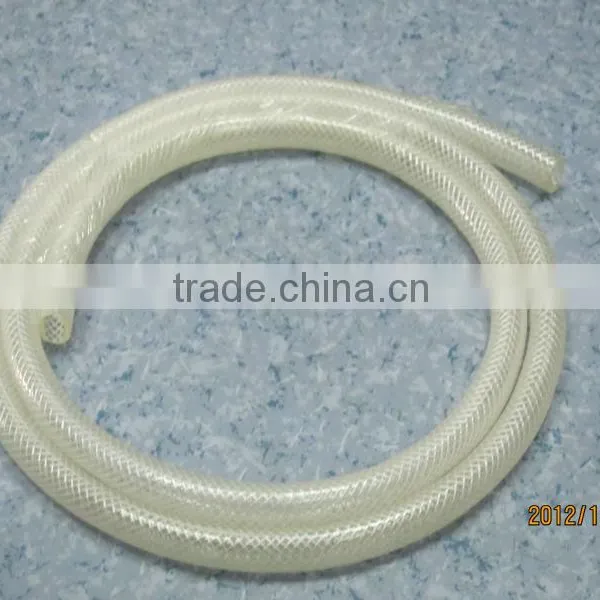

PVC Reinforced HoseMade of PVC and polyester yarn reinforced, flexible and light weight
Temperature: -5degrees-+65degrees
Product Detail:
Normal size | Pressure | Standard Length | Net weight | Measure -ment | ||||
size | I.D | O.D. | WALL | W.P. | B.P. | |||
inch | mm | mm | bar | M/roll | Kg/roll | M3/roll | ||
3/16 | 5 | 9 | 2.0 | 10 | 77 | 100 | 4.9 | 0.010 |
1/4 | 6 | 10 | 2.0 | 8 | 45 | 6.1 | 0.023 | |
6 | 11 | 2.5 | 10 | 65 | 8.3 | 0.025 | ||
5/16 | 8 | 12 | 2.0 | 7 | 40 | 7.6 | 0.028 | |
8 | 13 | 2.5 | 10 | 58 | 10.0 | 0.030 | ||
3/8 | 10 | 14 | 2.0 | 5 | 35 | 9.1 | 0.031 | |
10 | 15 | 2.5 | 9 | 45 | 12.2 | 0.038 | ||
1/2 | 12 | 16 | 2.0 | 4 | 28 | 11.0 | 0.045 | |
12 | 17 | 2.5 | 7 | 38 | 14.2 | 0.050 | ||
13 | 17 | 2.0 | 5 | 30 | 11.5 | 0.047 | ||
13 | 18 | 2.5 | 8 | 43 | 15.0 | 0.052 | ||
5/8 | 16 | 20 | 2.0 | 5 | 28 | 50 | 7.0 | 0.035 |
16 | 20.5 | 2.25 | 6 | 30 | 8.1 | 0.035 | ||
16 | 21 | 2.5 | 8 | 35 | 9.0 | 0.035 | ||
3/4 | 19 | 23 | 2.0 | 3.5 | 19 | 8.3 | 0.036 | |
19 | 24 | 2.5 | 4 | 25 | 10.3 | 0.040 | ||
19 | 25 | 3.0 | 8 | 32 | 12.5 | 0.045 | ||
1 | 25 | 29 | 2.0 | 3.5 | 16 | 10.6 | 0.070 | |
25 | 30 | 2.5 | 4 | 23 | 13.5 | 0.074 | ||
25 | 31 | 3.0 | 6 | 28 | 15.0 | 0.083 | ||
1-1/4 | 32 | 38 | 3.0 | 3.5 | 18 | 40 | 16.4 | 0.104 |
32 | 39 | 3.5 | 5 | 26 | 20.0 | 0.104 | ||
1-1/2 | 38 | 44 | 3.0 | 3 | 12 | 19.5 | 0.110 | |
38 | 45 | 3.5 | 3.5 | 15 | 22.8 | 0.127 | ||
38 | 46 | 4.0 | 5 | 20 | 26.2 | 0.141 | ||
2 | 50 | 58 | 4.0 | 2.5 | 10 | 30 | 26.0 | 0.220 |
50 | 59 | 4.5 | 3 | 13 | 28.8 | 0.250 | ||
50 | 60 | 5.0 | 4 | 17 | 30.0 | 0.250 | ||
