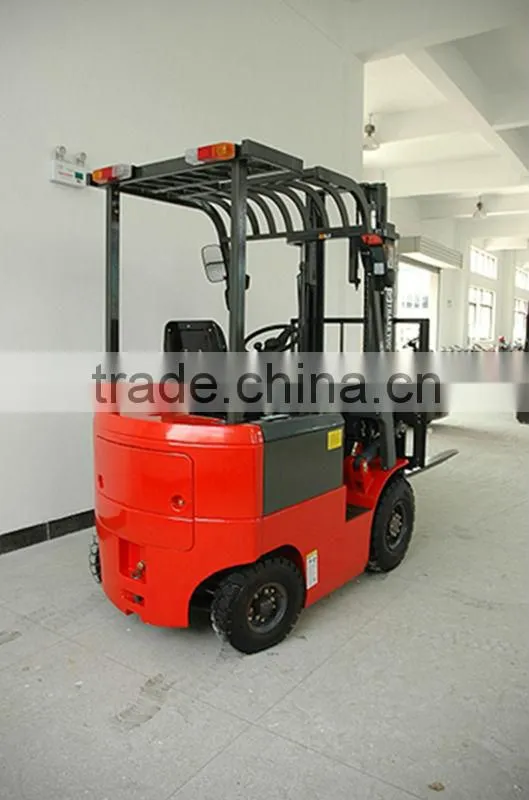

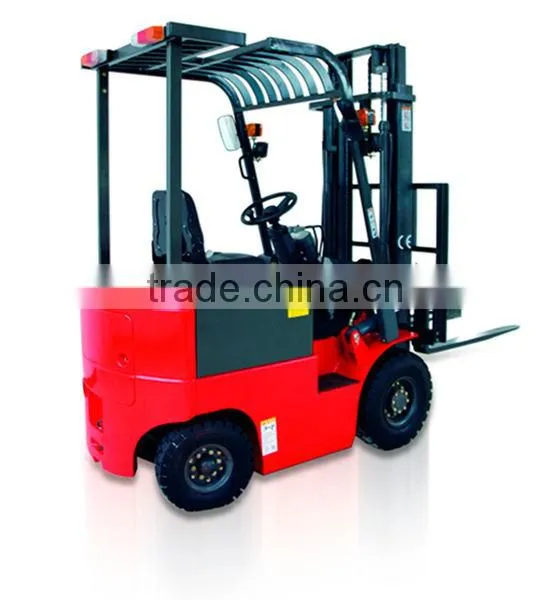

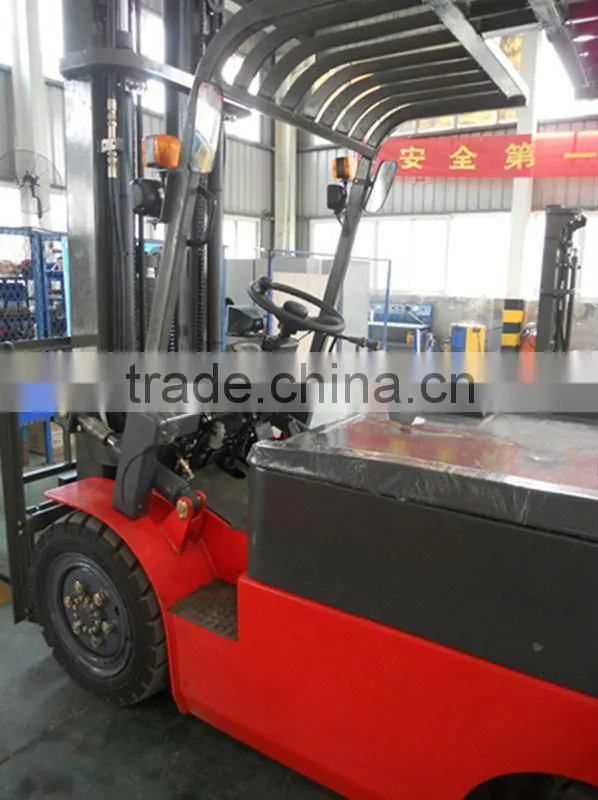

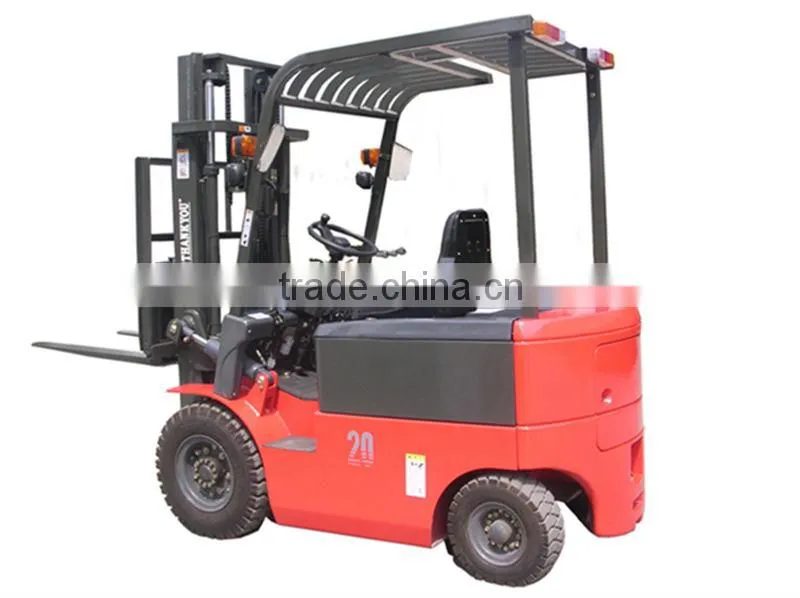

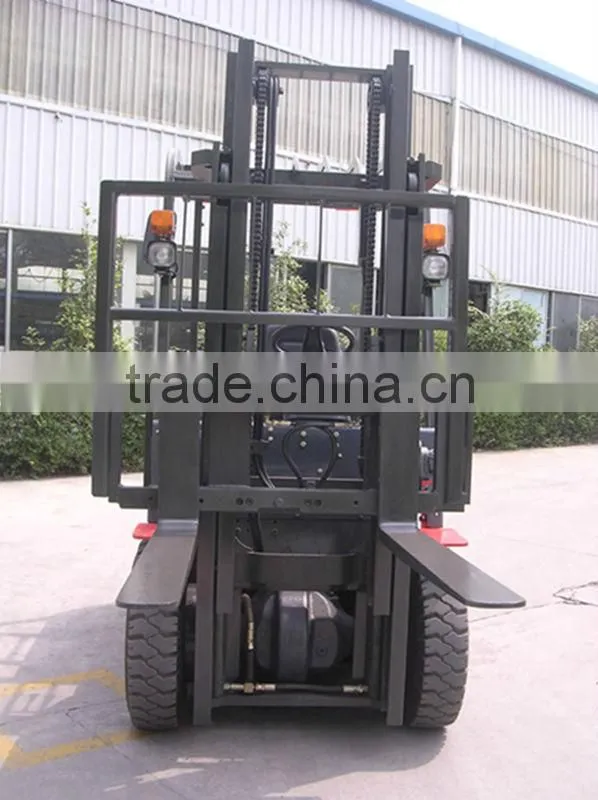

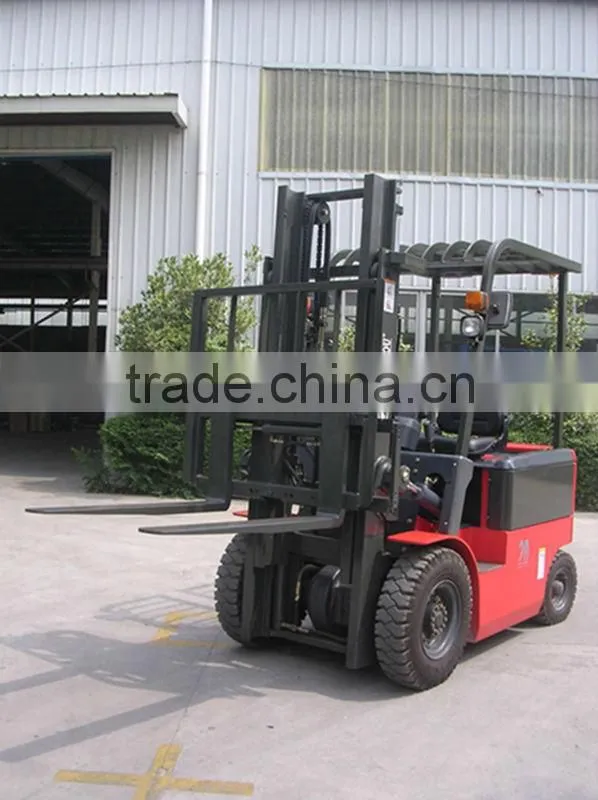

Electric Forklift Truck

Electric Forklift Truck thumbnail-1
Electric Forklift Truck photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
After-sales Service Provided:
No overseas service provided
Contact Supplier Request Quote Chat Now
Anhui Tea Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
After-sales Service Provided No overseas service provided

Specifications

Full AC power system, with lower maintanence cost, better water-proof technology,to reduce the operational cost

Full AC power system, with lower maintanence cost, better water-proof technology, the perfect steering stability during the hig-speed working etc, to reduce the operational cost;
1. Rated Load capcity: 2500kg, lift height: 6000mm;
2. Better stability: Low layout for battery, low center of gravity,
3. Water-proof connector;
4. Full hydraulic power-assisted steering system,easy to steering and save the energy;
5. Aeroseal wet disc type brake;
6. Curves safe control: the speed will automatic reduced when turning, to aviod the possibility of rollover;
7. Regenerative braking function to increase the working hours for forklift;
8. Better Durability: unitary frame with better strength and rigidity;
9. Ergonomics design: comfortable seat, ample inner room and wide visibility;
10. Wide angle centre rearview mirror with wide visibility; Comfortable seat with damping function.

Description
Model No.		 TK15-30 TK20-30 TK25-30 TK30-30
Rated Capacity (KG) 1500 2000 2500 3000
Operator Type Seated Seated Seated Seated
Max. Lifting Height (MM) 3000 3000 3000 3000
Min. Turning Radius (MM) 1930 2165 2170 2320
Min. Stacking Aisle---mm (1200*1200 Pallet) --AST 3730 4026 4026 4210
Max Travel Speed km/h-laden/unladen 10.5/1105 12.5/13.5 12.5/13.5 12.5/13.5
Load center MM 500 500 500 500
Fork Dimensions-L/W/T---mm 1070*100*35 1070*100*45 1070*100*45 1070*122*45
Max. Gradeability ---%--Laden/unladen 13/15 13/15 13/15 10/13
Lifting Speed (MM/S)-laden/unladen 136/301 149/285 149/285 128/282
Overall Length (MM) 3085 3420 3425 3597
Length-to Fork Face 2015 2350 2355 2527
Overall Width (MM) 1070 1150 1150 1225
Height-Overhead guard--mm 2200 2207 2207 2200
Height---Mast Lowered(MM) 2130 2015 2015 2080
Height-Mast Extended w/ Load-Backrest-mm 4050 4050 4050 4220
Height--Free Lift --mm 0 0 0 0
Height--seat to overhead guard ---mm
-- ---H7		 1040 1030 1030 1020
Tilt Angle----Forward/Backward--deg. 6/12 6/12 6/12 6/12
Fork Spread Range(MM) 220-960 220-1000 220-1000 260-1060
Front Overhang ----mm 399 455 455 478
Wheelbase ----mm 1250 1500 1500 1600
Tread ----mm --front/rear 891/920 972/960 972/960 1000/992
Min Ground Clearance--mm 94 115 115 115
Front Tyre -- (MM) 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 28×9-15-12PR
Rear Tyre -- (MM) 5.00-8-10PR 18×7-8-14PR 18×7-8-14PR 18×7-8-14PR
Service Brake Hydraulic
Parking Brake Hand
Battery V/AH- 48V /440 AH 48/630AH 48V/630 AH 80/500 AH
Battery-Weight -- kg 680 1205 1205 1230
Charger-Intelligent 48V /50 A 48V/70A 48 V/70 A 80V/60A
Driving Motor (KW) 5(DC)/8(AC) 8(DC)/11(AC) 8(DC)/11(AC) 10(DC)/16.6(AC)
Lifting Motor (KW) 7.5 10 10 13
Service Weight ---kg --incl. Battery 3226 4100 4210 4980

 electric forklift truckelectric forklift truckelectric forklift truckelectric forklift truckelectric forklift truck
