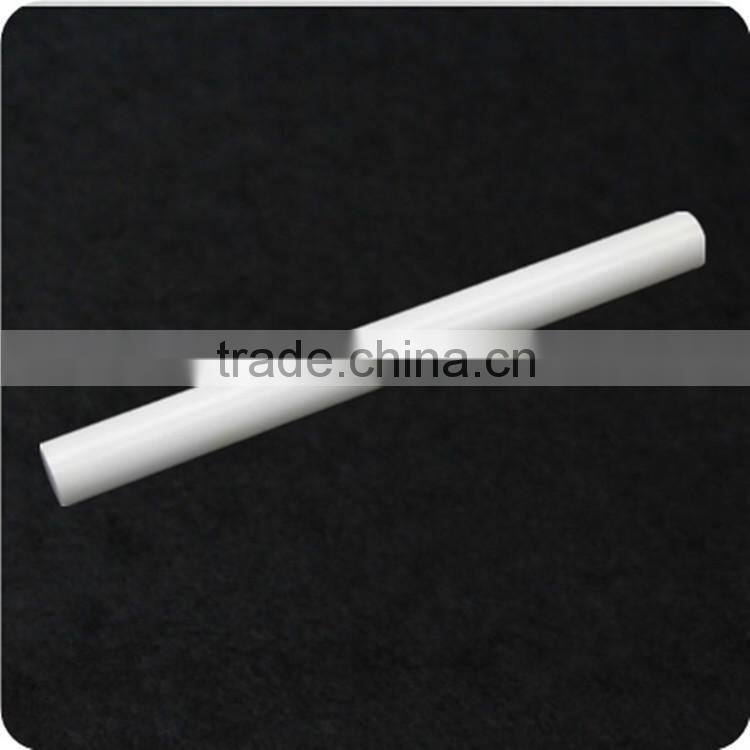

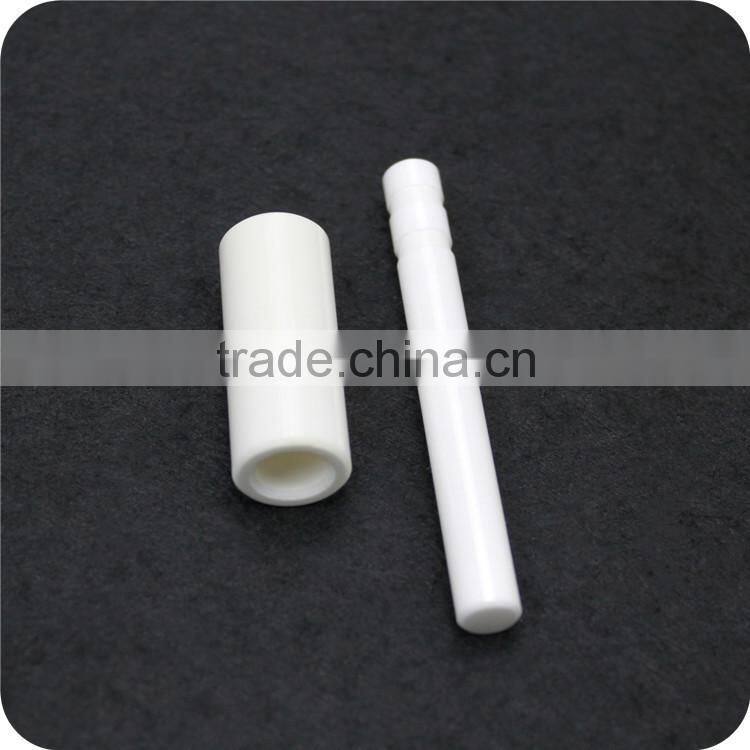

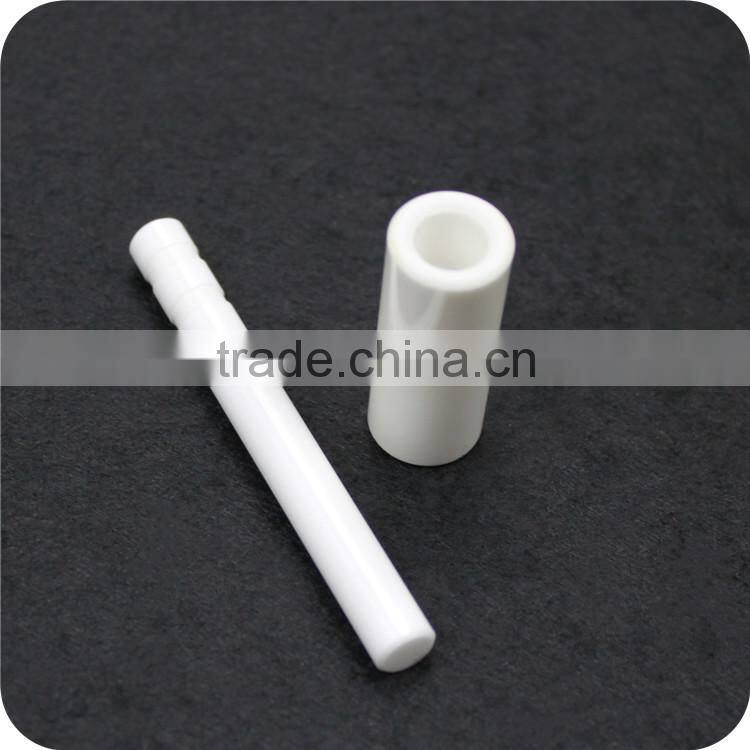

high wear resistance ZrO2 zirconia sleeve ceramic rod zirconium oxide ceramic pipe
1. Zirconia material parameter
Zirconia ceramic has a series of good properties,such as high strength,good fracture toughness,high density,good abrasion resistance,high hardness and so on.Zirconia ceramics can be used as good abrasive and efficient grinding media.
Item |
Test Condition |
Unit&Symbol |
Zirconia Ceramics |
The main chemical ingredient |
|
|
ZrO2:95% Y2O3:5% |
Bulk Density |
|
g/cm3 |
6 |
Maximum Use Temperature |
|
|
1300°C |
Water absorption |
|
% |
0 |
ROHS Hardness |
|
HRA |
≥83 |
Compressive Strength |
20°C |
Kgf/cm2 |
25000 |
Fracture Toughness |
|
Map.m3/2 |
6-8 |
Coefficient of thermal expansion |
|
/°C |
9.5*10-6 |
Thermal Shock Resistance |
Tc |
°C |
360 |
Volume Resistivity |
20°C |
Ωcm20°C |
≥10 12 |
2. Features:
1). Maximum use temperature up to 2400°C
2). High density
3). High bending strength and breaking tenacity
4). Low thermal conductivity( 20% that of alumina)
5). Chemical inertness
6). Resistance to molten metals
7). Ionic electrical conduction
8). Wear resistance
9). High fracture toughness
10). High hardness
3. Main Applications:
1). Shaft, Plunger
2). High-pressure cleaning machines
3). Sealing structure
4). Auto mobile industry
5). Oil drilling equipment
6). Insulation parts in electrical equipment
7). Ceramic knife
8). Ceramic hair clipper spare parts
4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
5. FAQ:
6. Contact us:
