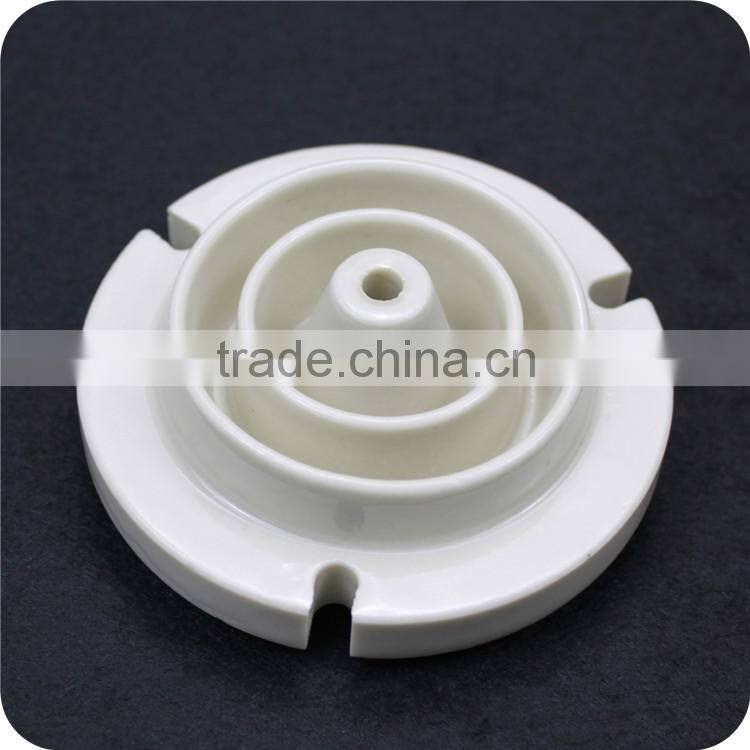

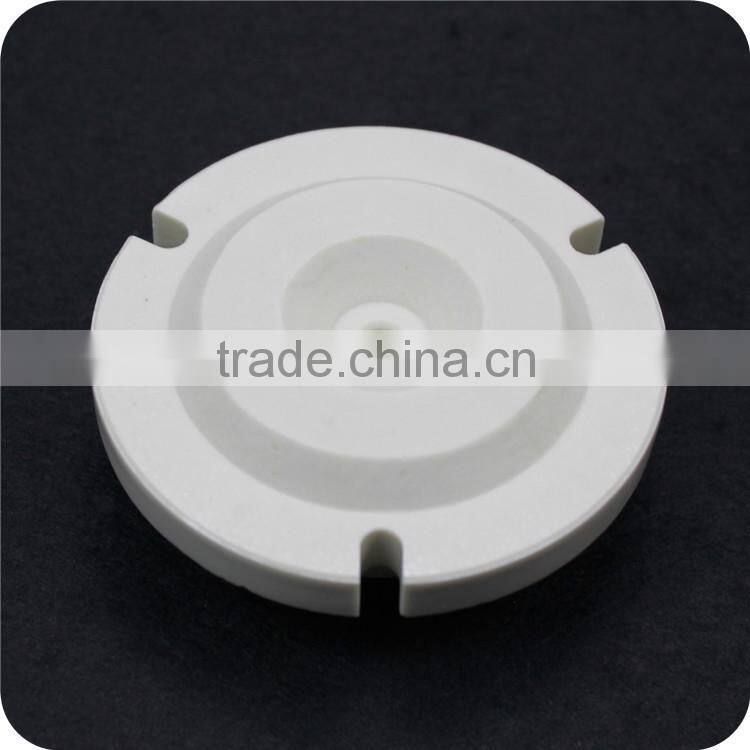

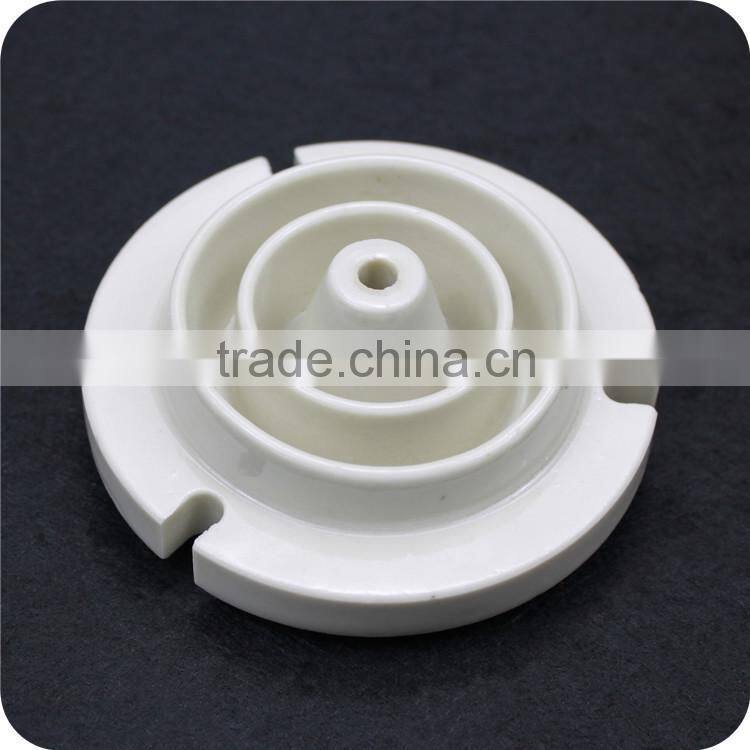

high performance ceramic heating insulator glazing steatite ceramic bottom plate
1. Material: Steatite ceramic
| Alumina Ceramic | |||
| Alumina content | Unit | ≥95% | ≥99% |
| Firing temperature | °C | 1650-1680 | 1780-1800 |
| Density | g/cm3 | ≥3.6 | ≥3.8 |
| Water absorption | % | <0.01 | <0.01 |
| Hardness | HRA | ≥82 | ≥88 |
| Bending stength | MPA | 320 | 400 |
| Dielectric constant | MHZ | 8.5 | 9.8 |
| Coefficient of thermal expansion | 1X 10-6/°C | 6.2-8.5 | 6.8-8 |
2. Advantages:
1). Excellent insulation, security, long working life.
2). Precise grinding and polishing, the effect is better than others.
3). Excellent heat radiation, small size, more environmental and energy-efficient.
4). Prevent moisture
3. Application:
All kinds of high-grade lamps and lanterns.
4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
5. FAQ:
6. Contact us:
