Specifications
1.lifting height:0.1-20m2.capacity:0.1-150t
3.used for warehouse
4.CE

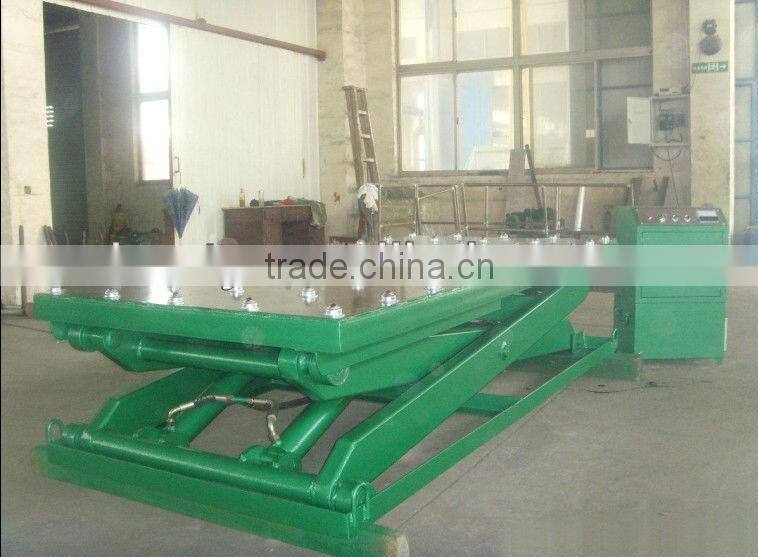

Stationary scissor lift/cargo lift
Advantages
Hydraulic lifting system,the far-end control and multi-control points at the different floors could be realized hierarchical control.Stop anywhere at the preconcerted and accurate location point.It can work under any condition,great load capacity,safe and reliable.There are sensitive over load protection devices looking device for failing protection.
Application
It is droved by the electric and hydraulic systerm,,the lift platform is lifted up and drops down along the track;it is installed in the pit or the ground floor to convey the goods from one floor to another and convey the goods from one working level to another.The control panels are available at the designated floors and on the lift platforms.
Loading capacity
Lifting height:1.65-20m;load capacity:0.1ton-150ton(customer-made)
Warranty
12 months from delivery apart from artificial damage.free lifelong technical service.
Specifications
We accept any customer-made specification,hereinafter the parameters only for reference.
SSL series |
Load |
Platform size |
Lifting height |
No-work height |
Dimension(m) |
Pump station |
SSL0.8-3.5 |
0.8T |
1.8*1.2m |
3.5m |
800mm |
1.8*1.2*0.80 |
2.2kw|380v |
SSL2-3.5 |
2T |
1.8*1.2m |
3.5m |
680mm |
1.8*1.2*0.68 |
3kw|380v |
SSL2-0.5 |
2T |
1.8*1.2m |
0.5m |
440mm |
1.8*1.6*0.44 |
2.2kw|380v |
SSL1-6 |
1T |
1.9*1.1m |
6.0m |
1100mm |
1.9*1.10*1.1 |
3kw|380v |
SSL2-6 |
2T |
2.0*1.3m |
6.0m |
1200mm |
2.0*1.3*1.20 |
4kw|380v |
SSL1.5-0.8 |
1.5T |
2.0*1.5m |
0.8m |
500mm |
2.0*1.5*0.50 |
3kw|380v |
SSL1-4.3 |
1T |
2.0*1.8m |
4.3m |
800mm |
2.0*1.8*0.80 |
4kw|380v |
SSL2-6 |
2T |
2.0*2.0m |
6.0m |
1030mm |
2.0*2.0*1.03 |
4kw|380v |
SSL3-2.4 |
3T |
2.0*2.0m |
2.4m |
630mm |
2.0*2.0*0.63 |
2.2kw|380v |
SSL3-2.4 |
3T |
2.0*2.0m |
2.4m |
660mm |
2.0*2.0*0.66 |
4kw|380v |
SSL2-5 |
2T |
2.1*1.2m |
5.0m |
870mm |
2.1*1.2*0.87 |
4kw|380v |
SSL1-4.5 |
1T |
2.1*1.5m |
4.5m |
800mm |
2.1*1.5*0.80 |
3kw|380v |
SSL5-6.5 |
5T |
2.2*1.6m |
6.5m |
1280mm |
2.2*1.6*1.28 |
5.5kw|380v |
SSL3-6.5 |
3T |
2.2*1.9m |
6.5m |
1520mm |
2.2*1.9*1.52 |
5.5kw|380v |
SSL1.5-3.8 |
1.5T |
2.2*2.0m |
3.8m |
700mm |
2.2*2.0*0.70 |
4kw|380v |
SSL2-3.8 |
2T |
2.2*2.0m |
3.8m |
830mm |
2.2*2.0*0.83 |
4kw|380v |
SSL2-5 |
2T |
2.3*1.4m |
5.0m |
870mm |
2.3*1.4*0.87 |
4kw|380v |
SSL2-5.15 |
2T |
2.3*1.4m |
5.1m |
870mm |
2.3*1.4*0.87 |
4kw|380v |
SSL 2-1.3 |
2T |
2.3*2.0m |
1.3m |
400mm |
2.3*2.0*0.40 |
2.2kw|380v |
SSL **-N |
Customer-made according to the requirement |
|||||
